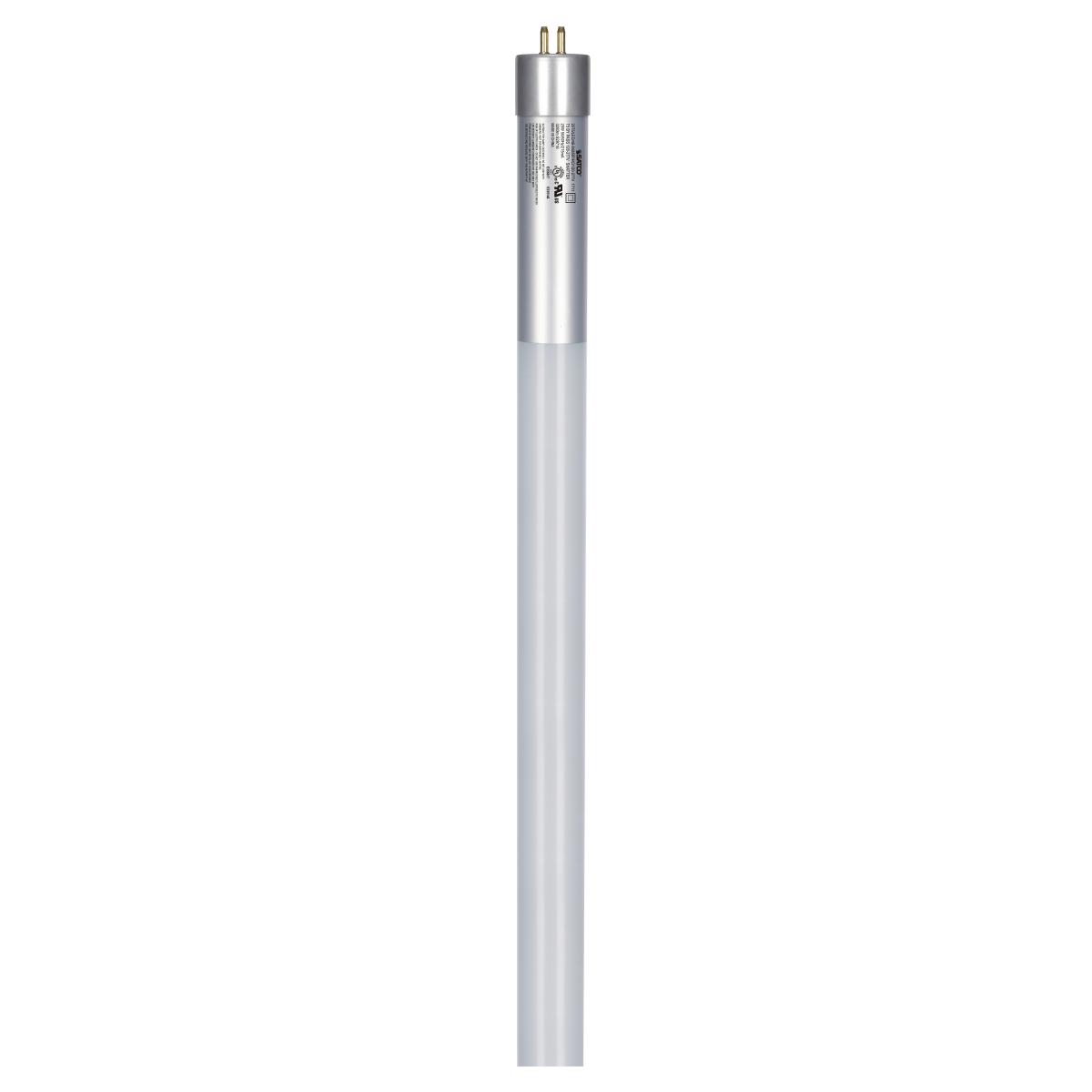

SKU S29718 - Image 1
S29718

25T5/LED/46-840/BP/HO/120-277V

  • 25 Watt T5 LED
  • Miniature bi-pin base
  • 4000K
  • 50000 Average rated hours
  • 3250 Lumens
  • 120-277 Volt
  • Type B
  • Ballast Bypass
  • Single Ended Wiring
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S29718 SpecificationsS29718 InstructionsSA2195 LED T5 Ballast Bypass lamps PI Sheet 2 18
Tools
Lighting Layout Analysis For S29718
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
25 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3250 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single Ended Wiring
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
CA RegulationsExempt - Base Not Regulated
Lamp FilamentLED
Fixture TypeLinear
StatusDiscontinued
Most Current GenerationS39718
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.208-0.090A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Nominal Length48.0
Operating PositionUniversal
Power Factor0.95
SDS ClassLED_Lamp
Shatter Proof TypeYes
Product TechnologyLED
Fluor Equiv54W
Incandescent Equivalent100W
Electrical

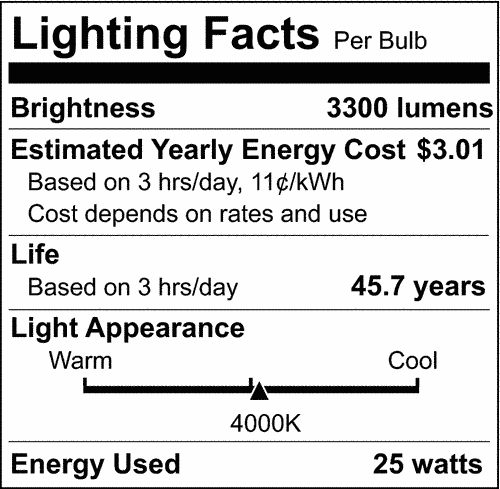

CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)240
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens3300L
Volts120V-277V
Watts25W
Physical
Lamp BaseMiniature Bi Pin
FinishFrost
Housing ColorSilver
ANSI BaseG5
Lamp TypeT5
MOD Lamps0.88
MOL48.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923297182
Case Cube0.7527
Case Height5.2
Case Length48.1
Case Quantity25
Case UPC10045923297189
Case Weight12.9
Case Width5.2
EA Cube0.017
EA Height0.8
EA Length45.8
EA Quantity1
EA Weight0.4
EA Width0.8
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length48.0
Web Width0.88
