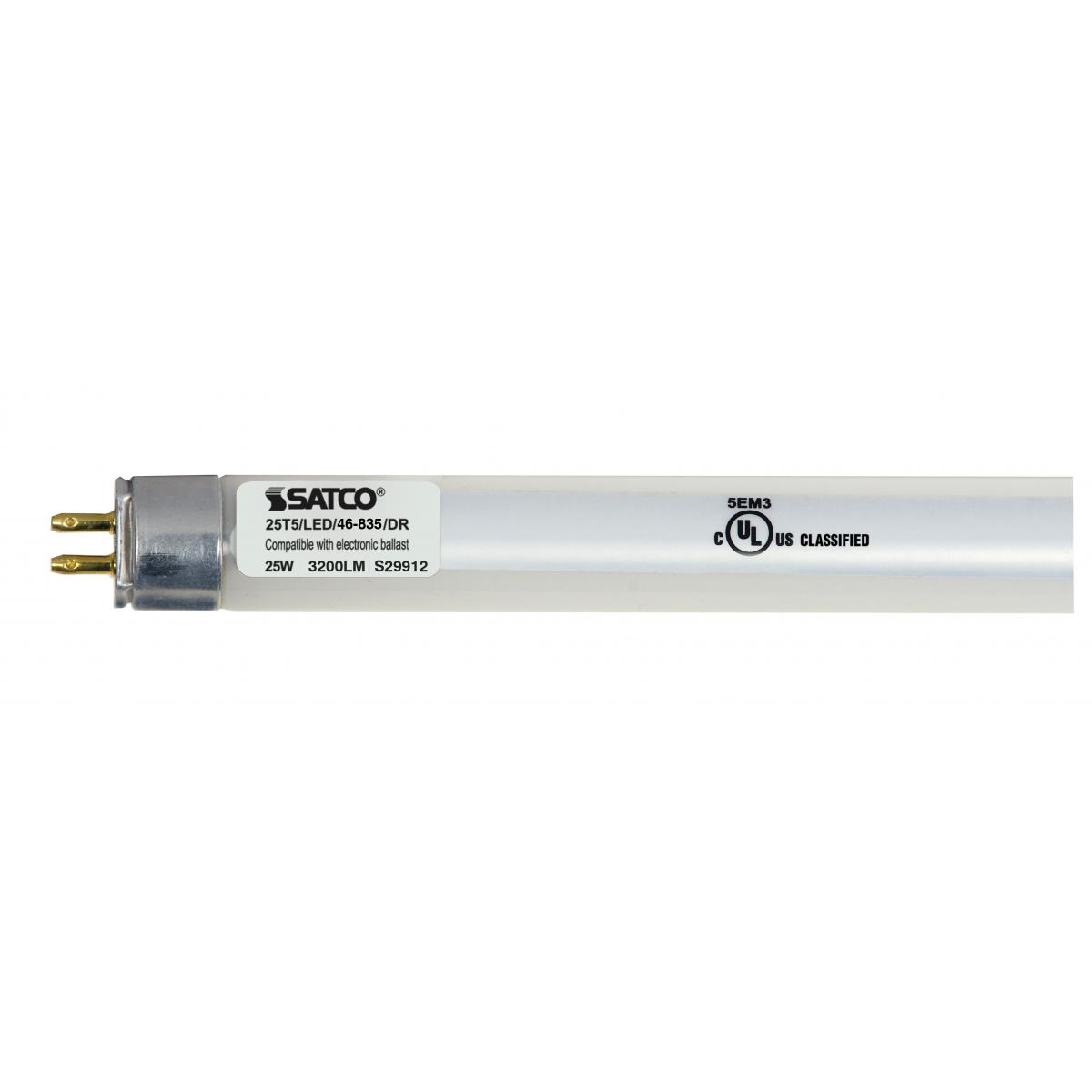

| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A |
| Ballasting Requirements | Ballast required, check compatibility |
| CA Regulations | Exempt - Base Not Regulated |
| Dimmable Text | Only in Type A mode; Check Ballast MFG for Dimmer Compatibility |
| Lamp Filament | LED |
| Material | Aluminum / Glass |
| Fixture Type | Linear |
| Includes | Integrated thermal fuse at pins |
| Status | Active |
| Style | Utility |
| Total Harmonic Distortion | 20% |
| CCT Selectable | False |
| Wattage Selectable | False |
| Additional Info | Light Emitting Area of 325 degrees; System Wattage (Type A) - 28W |
| Amps | 0.208-0.090A |
| Has Camera | False |
| Integrated Features | Integrated thermal fuse at pins |
| IOT Enabled | False |
| Lens Finish | Gloss |
| Lensed | True |
| Nominal Length | 48.0 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 54W |
| Incandescent Equivalent | 100W |
| CCT (Kelvin Temp) | 3500K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 185 |
| Color Temp | Neutral White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 3300L |
| Volts | Ballast Dependent |
| Watts | 25W |
| Lamp Base | Miniature Bi Pin |
|---|---|
| Finish | Gloss |
| Housing Color | None |
| ANSI Base | G5 |
| Lamp Type | T5 |
| MOD Lamps | 0.63 |
| MOL | 46.0 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Status | Lawful for sale in California |
|---|---|
| CO Status | Lawful for sale |
| DLC ID | PLF2500Z49X9 |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Listed |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923299124 |
|---|---|
| Case Cube | 0.6247 |
| Case Height | 3.54 |
| Case Length | 48.4 |
| Case Quantity | 10 |
| Case UPC | 10045923299121 |
| Case Weight | 5.13 |
| Case Width | 6.3 |
| EA Cube | 0.0096 |
| EA Height | 0.59 |
| EA Length | 47.6 |
| EA Quantity | 1 |
| EA Weight | 0.51 |
| EA Width | 0.59 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Sleeve |
| Web Length | 46.0 |
| Web Width | 0.63 |
