Lights

S39677

120W/LED/HID/4K/100-277V/EX39

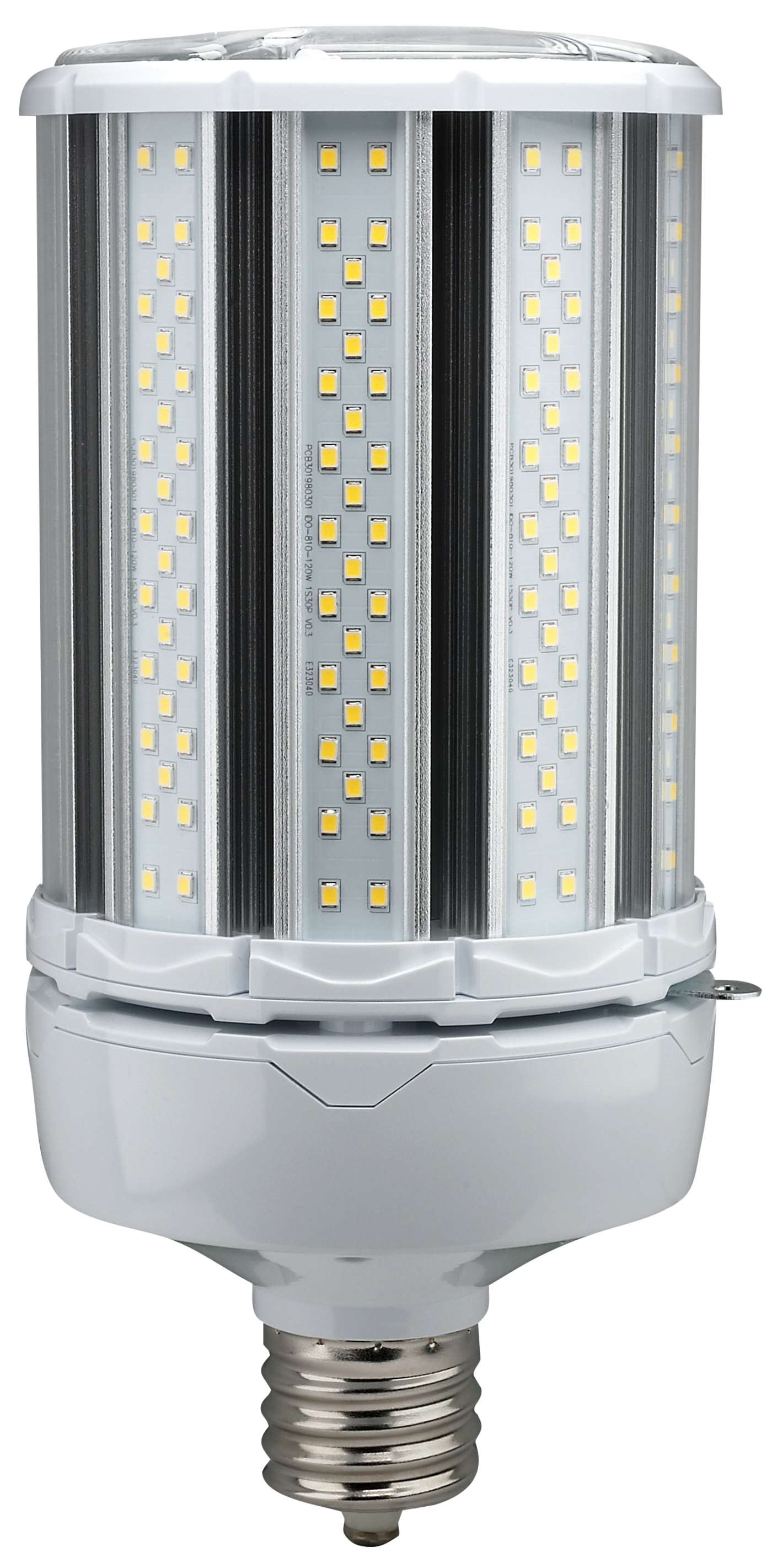

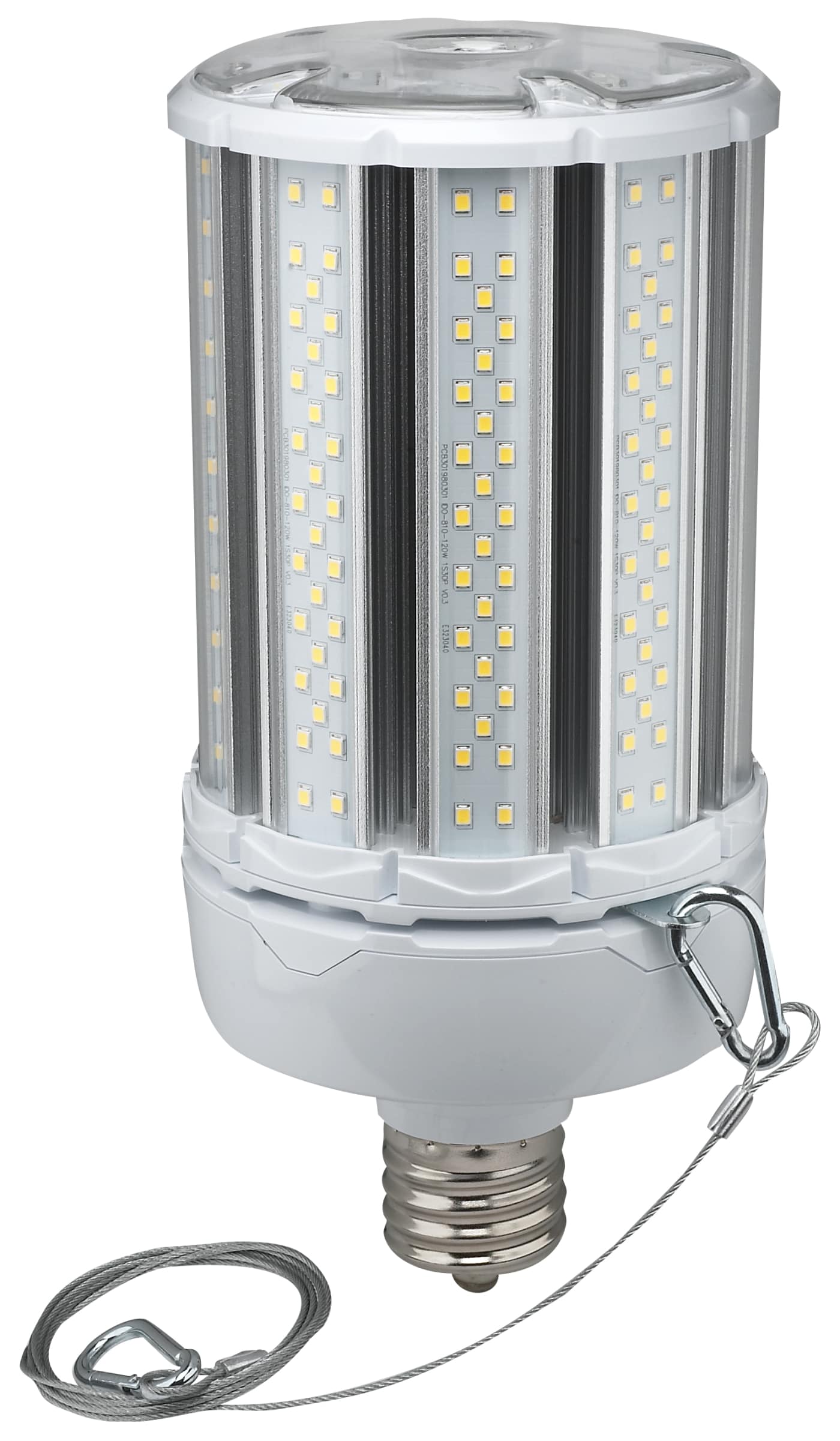

120W LED HID Replacement; 4000K; Mogul extended base; 100-277V

Lights

S39677

120W/LED/HID/4K/100-277V/EX39

120W LED HID Replacement; 4000K; Mogul extended base; 100-277V

Specifications

General
StatusActive
Watts120
Incandescent Equivalent750
Fluorescent Equivalent200
HID Equivalent600
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishUn-Lensed
CCT (Kelvin)4000
TemperatureCool White
CRI80
Lumens16800
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 17.32 in. Width 9.25 in. Depth 9.25 in.
Ballasting RequirementsBallast by-pass - Direct wire only 100 - 277V
Electrical
Watts120
Incandescent Equivalent750
Fluorescent Equivalent200
HID Equivalent600
Volts100V-277V
Ballasting RequirementsBallast by-pass - Direct wire only 100 - 277V
Working VoltageAC 100-277V
Operating Frequency50/60Hz
CCT (Kelvin)4000
TemperatureCool White
CRI80
Lumens16800
Beam Spread300
DimmableNon-Dimmable
Dimmable Down ToN/A
Dimming TypeN/A
Power Factor0.9
Hours Rated50000
Burning PositionUp or Down Operation Only
Surge ProtectionBuilt-in surge protection - 6KV
Thermal ManagementHi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control). I
Operating Temperature-20C (-4F) to a maximum of +40C (+104F)
Physical
MOL10.34
MOD4.72
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishUn-Lensed
Lens FinishClear
Lens MaterialPlastic
Housing ColorWhite
Weight3.7
Additional Information
Additional InfoApproved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Enclosure RatingEnclosed Rated Lamp
Min Compartment SizeLength 17.32 in. Width 9.25 in. Depth 9.25 in.
IP RatingIP64
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Damp
Energy StarNo
DLC ApprovedYes
DLC IDPLJXWKYD9C5N;PLK6IAMHPIWE
CEC StatusLawful for sale in California
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923306778
Each Quantity1
Each Length6.30
Each Width6.30
Each Height11.81
Each Weight4.40
Each Cube0.26
Pack TypeBox
Inner UPC00000000000000
Inner Quantity0
Inner Length0.00
Inner Width0.00
Inner Height0.00
Inner Weight0.00
Inner Cube0.00
Case UPC10045923306775
Case Quantity4
Case Length12.99
Case Width12.99
Case Height12.60
Case Weight19.18
Case Cube1.19
×

Dimmer Compatibility

×

Precautions

No precautions available at this time.
