Lights

S8905

20W/LED/HID/WP/5K/E26/100-277V

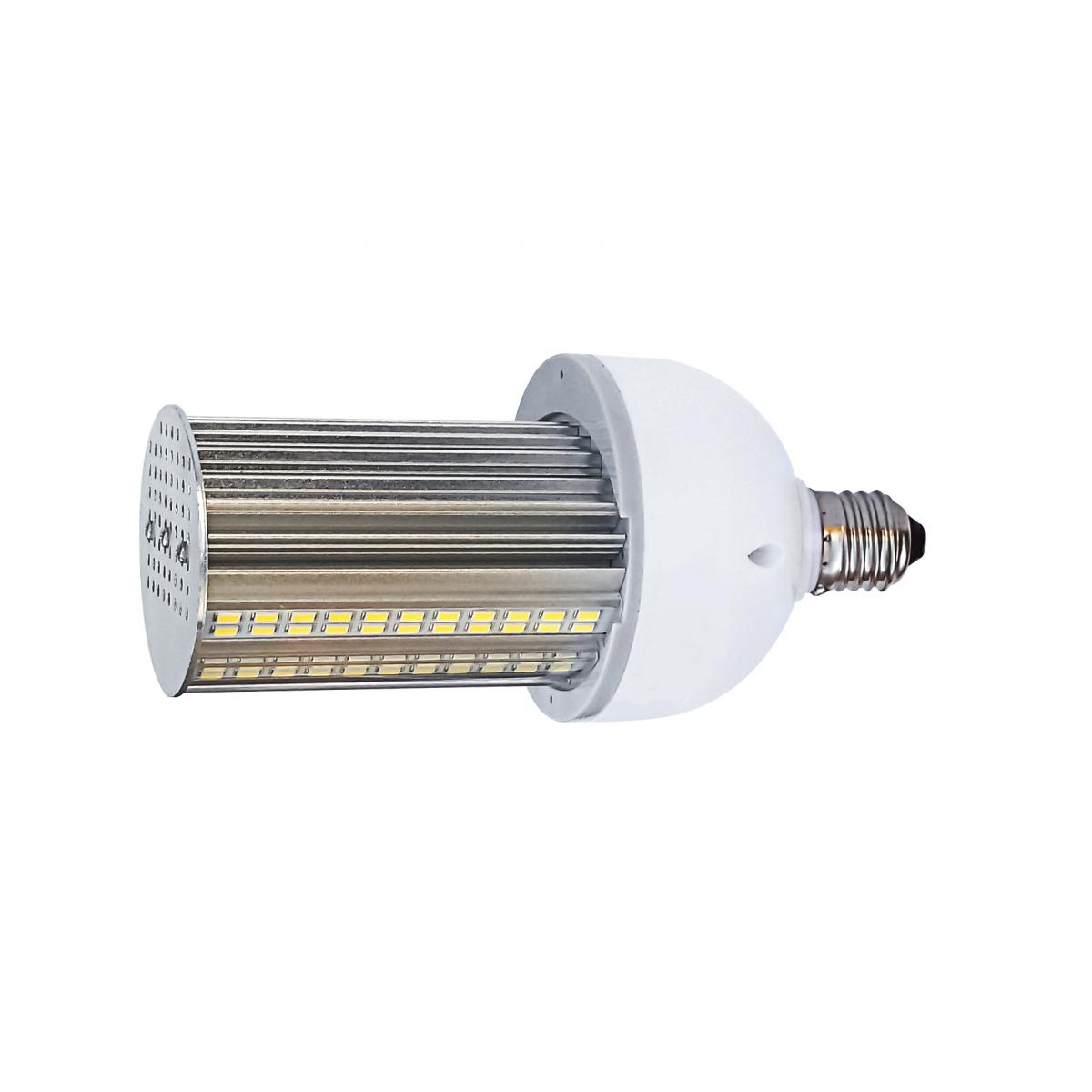

20W LED Hi-lumen directional lamp for commercial fixture applications; 5000K; Medium base; 100-277V

S8905 20W/LED/HID/WP/5K/E26/100-277V

S8905

20W/LED/HID/WP/5K/E26/100-277V

20W LED Hi-lumen directional lamp for commercial fixture applications; 5000K; Medium base; 100-277V

Specifications

General
StatusDiscontinued
SubstituteS8928
Watts20
HID Equivalent100
Volts100V-277V
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
CCT (Kelvin)5000
TemperatureNatural Light
CRI85
Lumens2800
Beam Spread180
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 8.5 in. Width 6 in. Depth 6 in.
Electrical
Watts20
HID Equivalent100
Volts100V-277V
Operating Frequency50/60 Hz
CCT (Kelvin)5000
TemperatureNatural Light
CRI85
Lumens2800
Beam Spread180
DimmableNon-Dimmable
Dimming TypeN/A
Hours Rated50000
Burning PositionHorizontal Operation
Operating Temperature-29C (-20.2F) to a maximum of +60C (+140F)
Physical
MOL7.09
MOD3.56
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
Lens FinishClear
Housing ColorWhite
Additional Information
Enclosure RatingEnclosed Rated Lamp
Min Compartment SizeLength 8.5 in. Width 6 in. Depth 6 in.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923089053
Each Quantity1
Each Length (in.)4.02
Each Width (in.)4.02
Each Height (in.)9.22
Each Weight (lb.)1.46
Each Cube (CuFt.)0.0836
Pack TypeBox
Inner UPC20045923089057
Inner Quantity6
Inner Length (in.)8.63
Inner Width (in.)12.69
Inner Height (in.)9.81
Inner Weight (lb.)9.72
Inner Cube (CuFt.)0.6029
Case UPC10045923089050
Case Quantity12
Case Length (in.)18.04
Case Width (in.)13.28
Case Height (in.)10.40
Case Weight (lb.)21.25
Case Cube (CuFt.)1.3982
