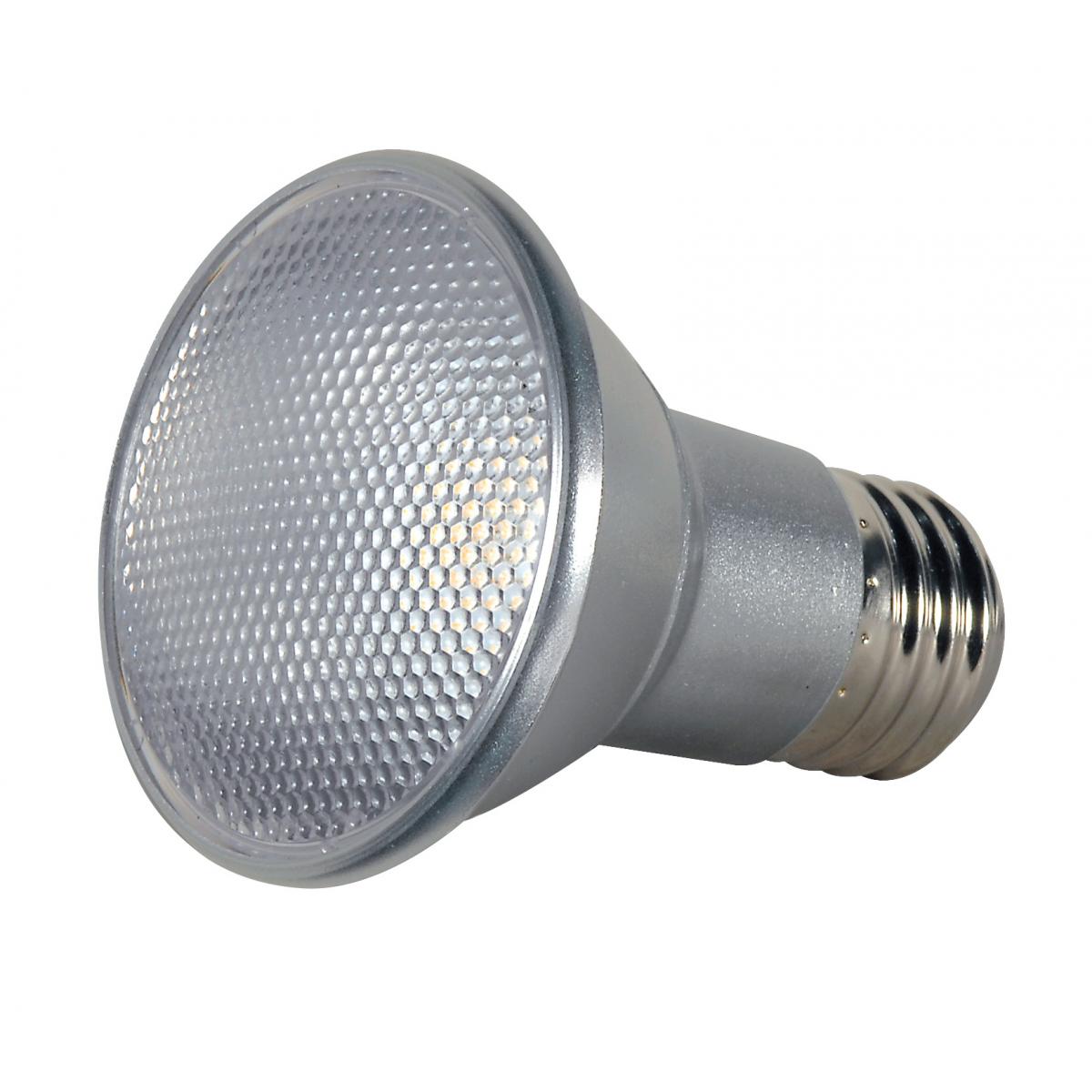

S9485

7PAR20/LED/40'/2700K/90CRI

  • 7 Watt
  • PAR20 LED
  • 2700K
  • 40 deg. Beam Angle
  • Medium base
  • 120 Volt
location_rating^damp^1
ip_rating^IP65^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S9485 SpecificationsSA1393 LED PAR V3 PI Sheet Full Line 3-25-25SA2000-3 LO RES LED Lamp Reference Guide - LIT 4 21
Tools
Lighting Layout Analysis For S9485
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
7 Watt; PAR20 LED; 2700K; 40 deg. Beam Angle; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Center Beam Candle Power590
Lamp FilamentLED
MaterialMetal / Plastic / Electronic Components
Fixture TypePAR
StatusObsolete
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.058A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)40
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Triac
Operating Temp-20C (-4F) to +45C (+113F)
Lumens470L
Volts120v
Watts7W
Physical
Lamp BaseMedium
FinishClear
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR20
MOD Lamps2.5
MOL3.0
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantTrue
Packaging
UPC045923094859
Case Cube0.5382
Case Height8.87
Case Length11.82
Case Quantity24
Case UPC10045923094856
Case Weight5.62
Case Width8.87
EA Cube0.0135
EA Height3.55
EA Length2.56
EA Quantity1
EA Weight0.13
EA Width2.56
Inner Cube0.1041
Inner Height3.94
Inner Length8.27
Inner Quantity6
Inner UPC20045923094853
Inner Weight1.02
Inner Width5.52
Pack TypeBox
Web Length3.0
Web Width2.5
