S9744

9.5WLED/RDL/4/30K/BN/120V

Discontinued - Suggested Replacement: S11833R1

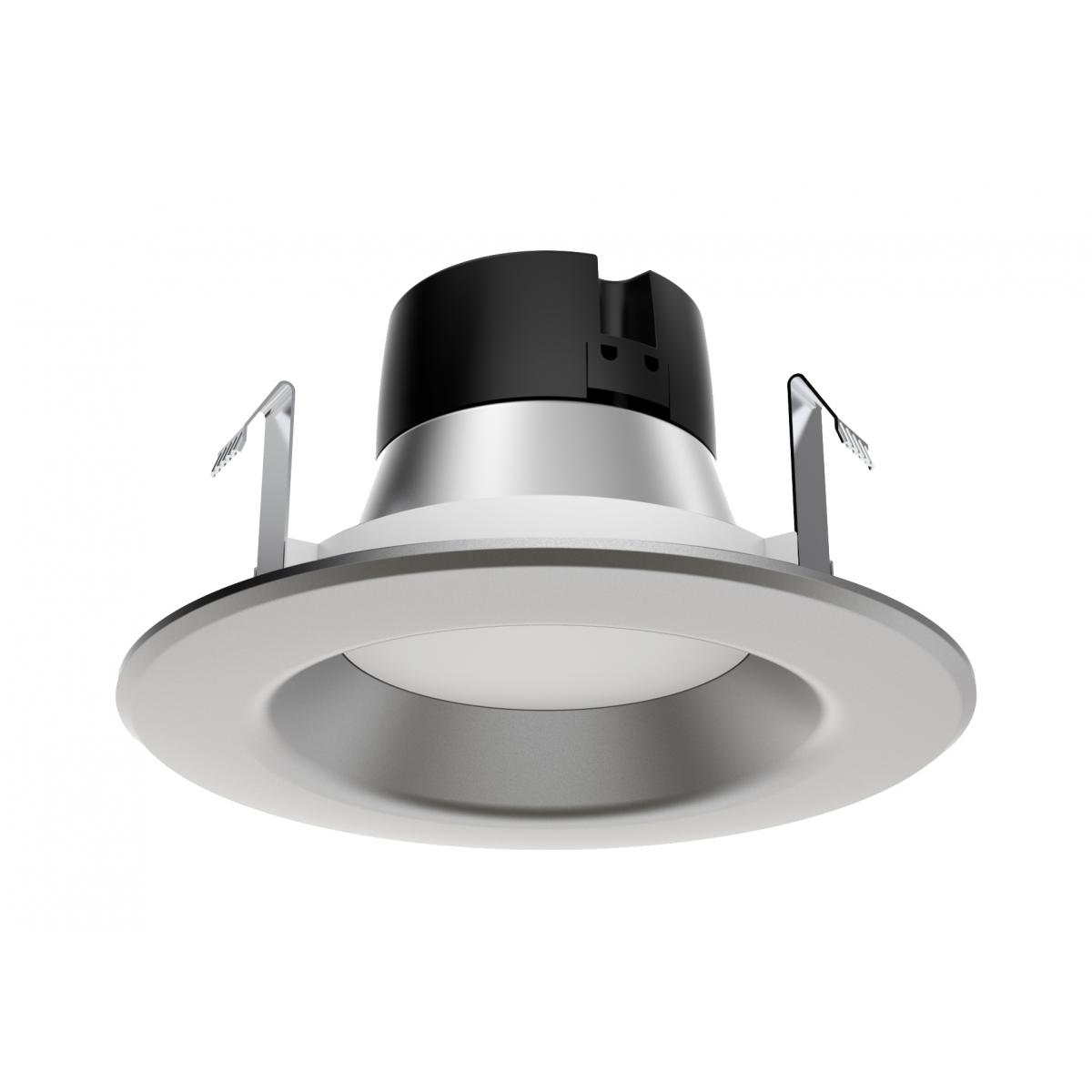

  • 9.5 watt LED Downlight Retrofit
  • 4"
  • Brushed Nickel trim
  • 3000K
  • 120 volts
  • Dimmable
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S9744 SpecificationsS9744 InstructionsSA2262 4 5 6inch Br Nickel Rec Retro PI Sheets 11 17
Tools
Lighting Layout Analysis For S9744
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.5 watt LED Downlight Retrofit; 4"; Brushed Nickel trim; 3000K; 120 volts; Dimmable
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter5.31
MaterialAluminum
Fixture TypeDownlight Retrofit
StatusDiscontinued
StyleContemporary
Most Current GenerationS11833R1
CCT SelectableFalse
Wattage SelectableFalse
Can Size4 in.
Finish FamilyNickel
Amps0.079A
Has CameraFalse
IOT EnabledFalse
Lens FinishWhite
Lens MaterialPlastic (PS)
Power Factor0.96
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Temp-20C (-4F) to +45C (+113F)
Lumens600L
Volts120v
Watts9.5W
Physical
Lamp BaseMedium Adapter
FinishBrushed Nickel / Frosted
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsT20 Non-Compliant - LPW <80
CA Prop 65Lead
CA StatusNon-Compliant
FCC CompliantTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
CA Compliance TextNon-Compliant
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923097447
Case Cube1.5619
Case Height7.09
Case Length24.17
Case Quantity16
Case UPC10045923097444
Case Weight11.51
Case Width15.75
EA Cube0.0682
EA Height5.91
EA Length5.51
EA Quantity1
EA Weight0.53
EA Width3.62
Inner Cube0.3222
Inner Height6.3
Inner Length15.16
Inner Quantity4
Inner UPC20045923097441
Inner Weight2.43
Inner Width5.83
Pack TypeBox
Web Height2.91
Web Width5.31
