S9784

20W/LED/LIGHT ENGINE/40K/RK

Discontinued - Suggested Replacement: S29781

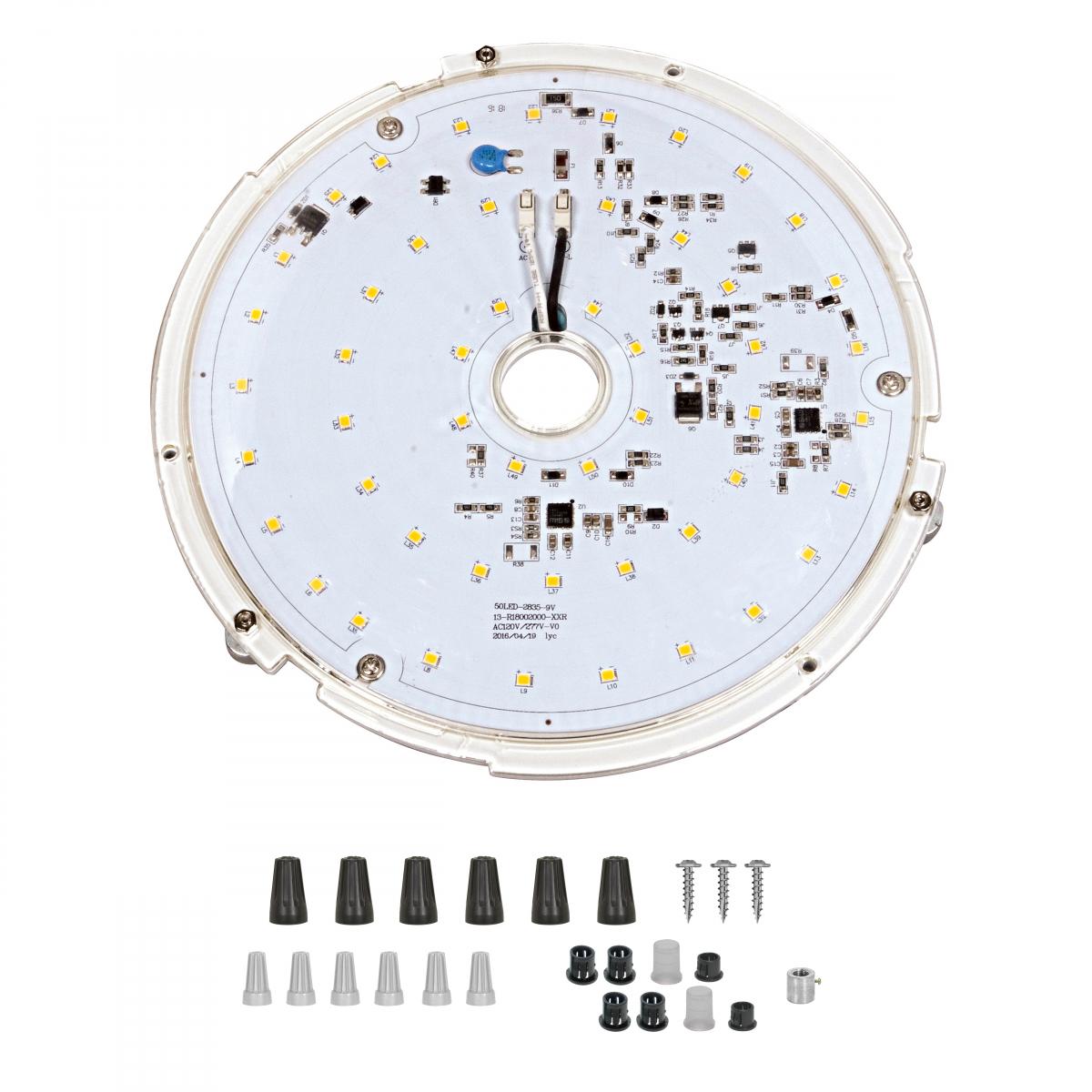

  • 20W Circular LED light engine retrofit kit
  • 4000K
  • 30000 Average rated hours
  • 1800 Lumens
  • 120/277V
location_rating^damp^1
cri^90+^2
hours_rated^30k^2
safety_listing^cetlus_list^3
rohs_compliant^y^3
S9784 SpecificationsS9784 WiringSA2002 LED Circular Module Kit PI Sheet 9 16
Description
Description
20W Circular LED light engine retrofit kit; 4000K; 30000 Average rated hours; 1800 Lumens; 120/277V
Products Specs
General
CompanySATCO
Diameter8.0
IncludesBushings screws wire nuts and grommets
Product NotesDirect Wire; Cool White Color Temperature; 90 CRI; Rated for 30,000 hours; Dimmable; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control
StatusDiscontinued
Most Current GenerationS29781
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyClear
Amps0.167/0.072A
Power Factor0.97
Product TechnologyLED
Electrical
CCT (Kelvin Temp)4000K
Hours Rated30000
Color TempCool White
CRI90+
Dimming TypeForward Phase or Reverse Phase
Lumens1800L
Volts120V/277V
Watts20W
Physical
FinishClear
Lamp TypeIntegrated LED
Additional Info
Warranty1-Year
Documents
Compliance
CA RegulationsT20 Exempt - Not A Regulated Product
CA StatusLawful for sale in California
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
Packaging
UPC045923097843
Case Cube0.57
Case Height6.69
Case Length16.77
Case Quantity20
Case UPC10045923097840
Case Weight23.62
Case Width8.78
EA Cube0.0377
EA Height0.98
EA Length8.19
EA Quantity1
EA Weight0.92
EA Width8.11
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height7.88
Web Length0.5
Web Width7.88
