SKU 62-1171 - Image 1
62-1171

18W/LED/1X1/FLUSH/3K/GM

  • 18W
  • 12 in.
  • x 12 in.
  • Surface Mount LED Fixture
  • 3000K
  • Gun Metal Finish
  • 100-277V
location_rating^damp^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1171 Specifications62-1171 InstructionsNU1350-5 LO RES LED Fixt Guide 10 20
Tools
Lighting Layout Analysis For 62-1171
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

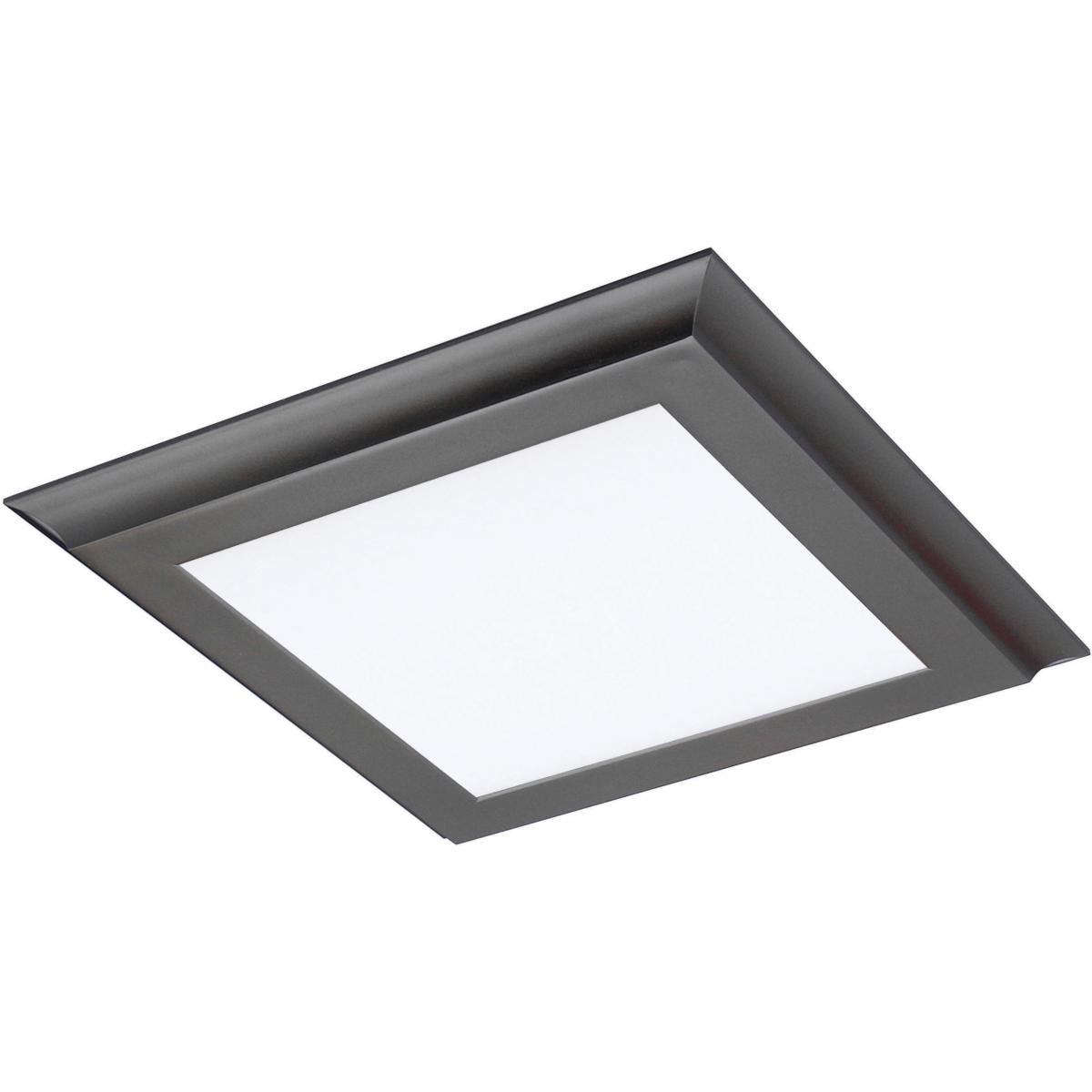

18W; 12 in.; x 12 in.; Surface Mount LED Fixture; 3000K; Gun Metal Finish; 100-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
Dimmable Text120V only
MaterialAluminum
Fixture TypeBLINK Plus
StatusDiscontinued
StyleUtility
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyGray
Amps0.180-0.065A
Has CameraFalse
IOT EnabledFalse
Power Factor0.79
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Color TempWarm White
CRI90+
Dimming TypeReverse Phase or Phase Selectable
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)

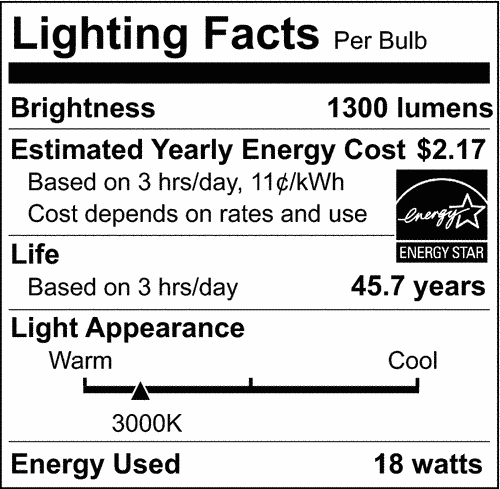

Lumens1300L
Volts120V-277V
Watts18W
Physical
Lamp BaseIntegrated
FinishGunmetal Gray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingDamp
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextCalifornia T24 Listed
UL ApplicationCeiling
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923511714
Case Cube1.996
Case Height15.55
Case Length15.35
Case Quantity6
Case UPC10045923511711
Case Weight21.12
Case Width14.45
EA Cube0.2824
EA Height2.24
EA Length14.76
EA Quantity1
EA Weight3.66
EA Width14.76
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height1.0
Web Length12.0
Web Width12.0
