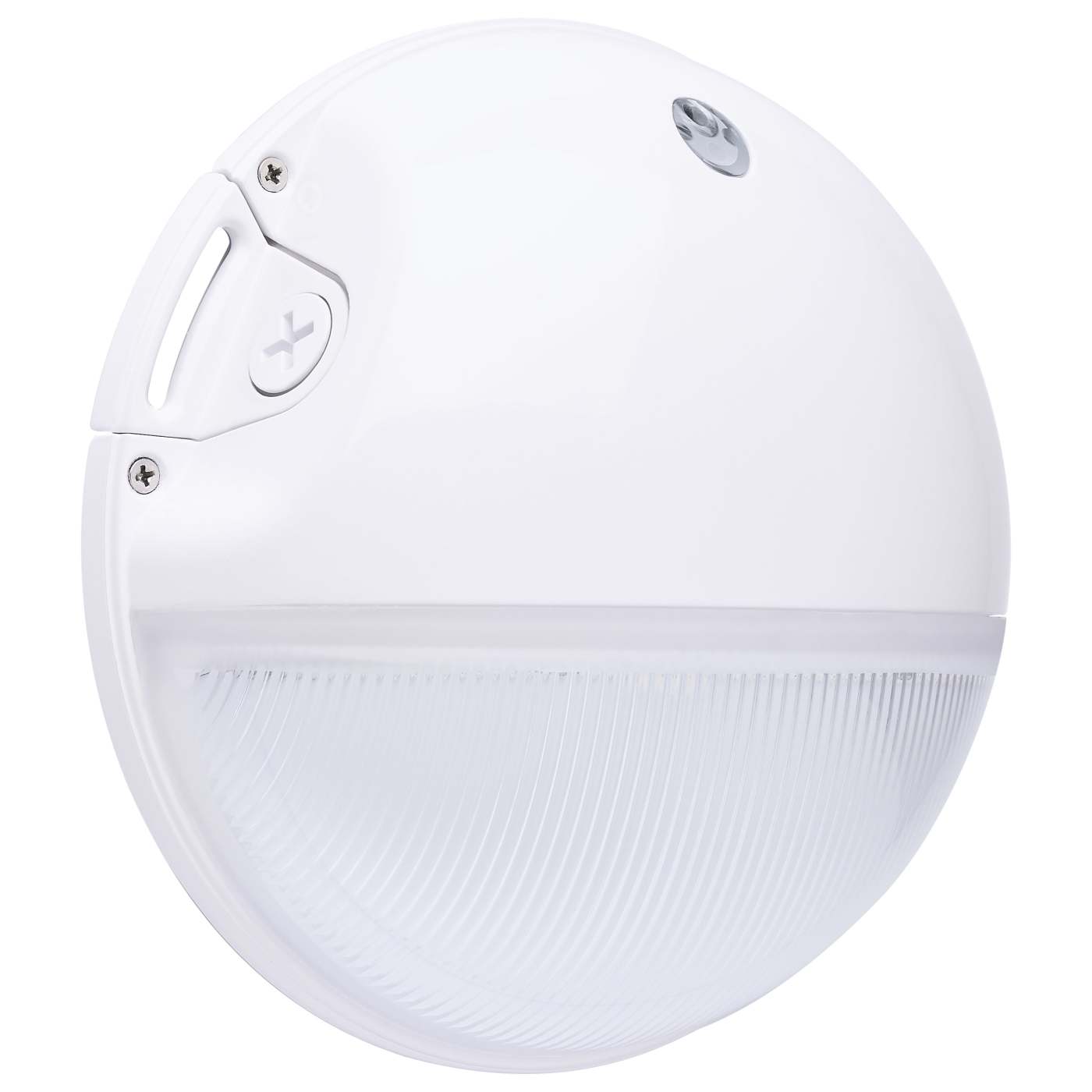

65-752 LED SMALL 20W ROUND WALL PACK

65-752

LED SMALL 20W ROUND WALL PACK

LED Small Round Wall Pack; 20W; CCT Selectable; Bypassable Photocell; 120-277 Volt; White Finish

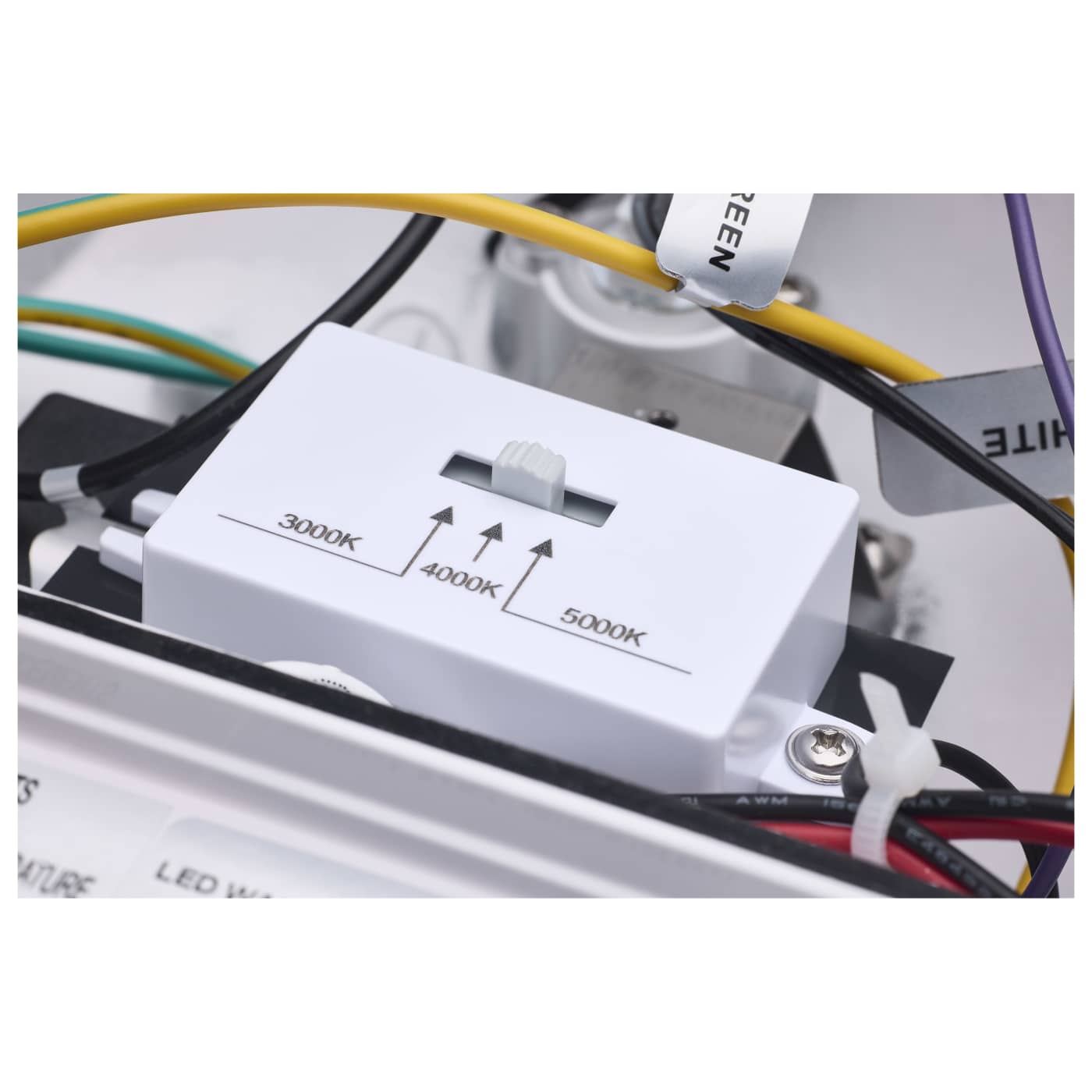

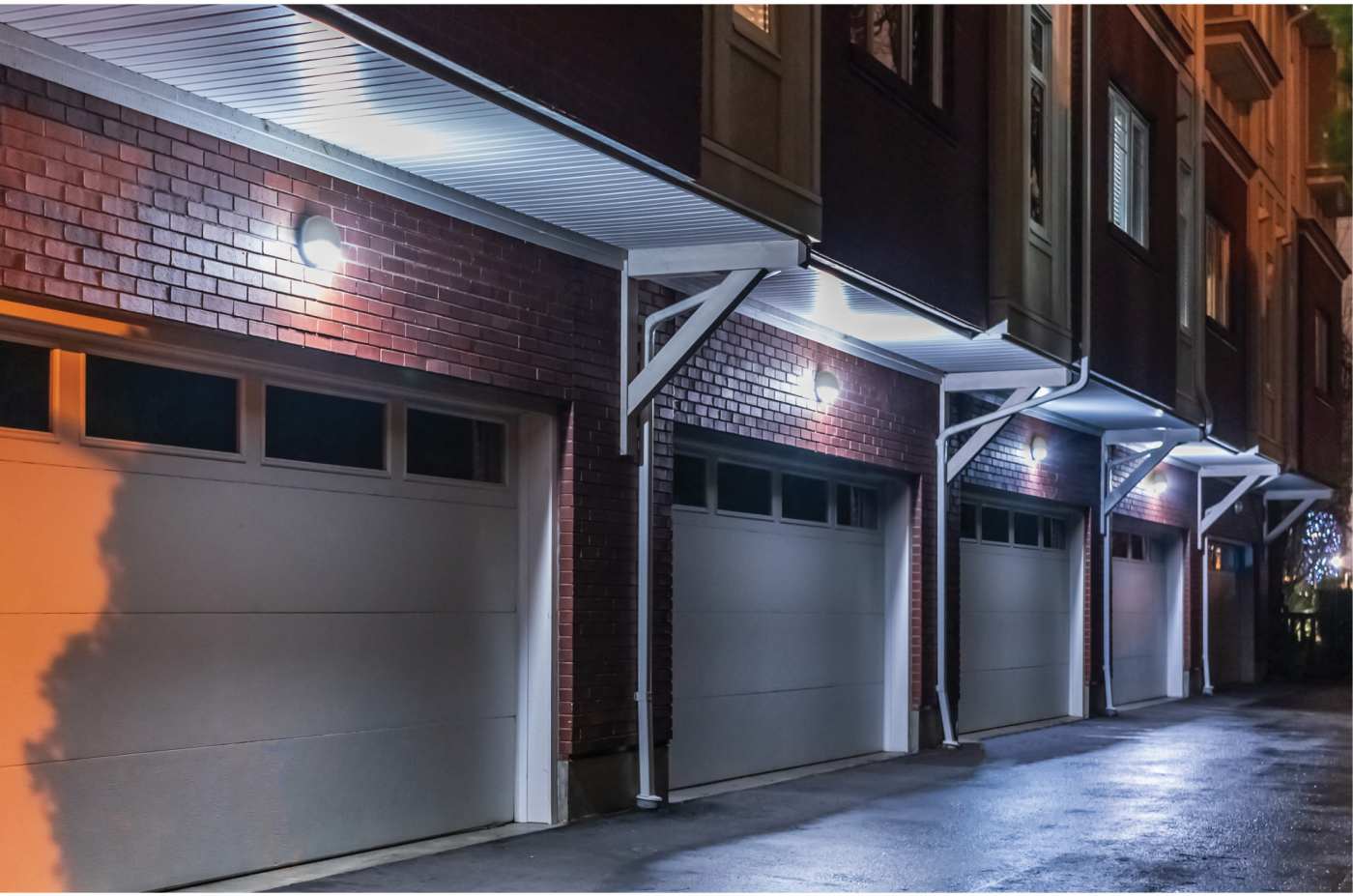

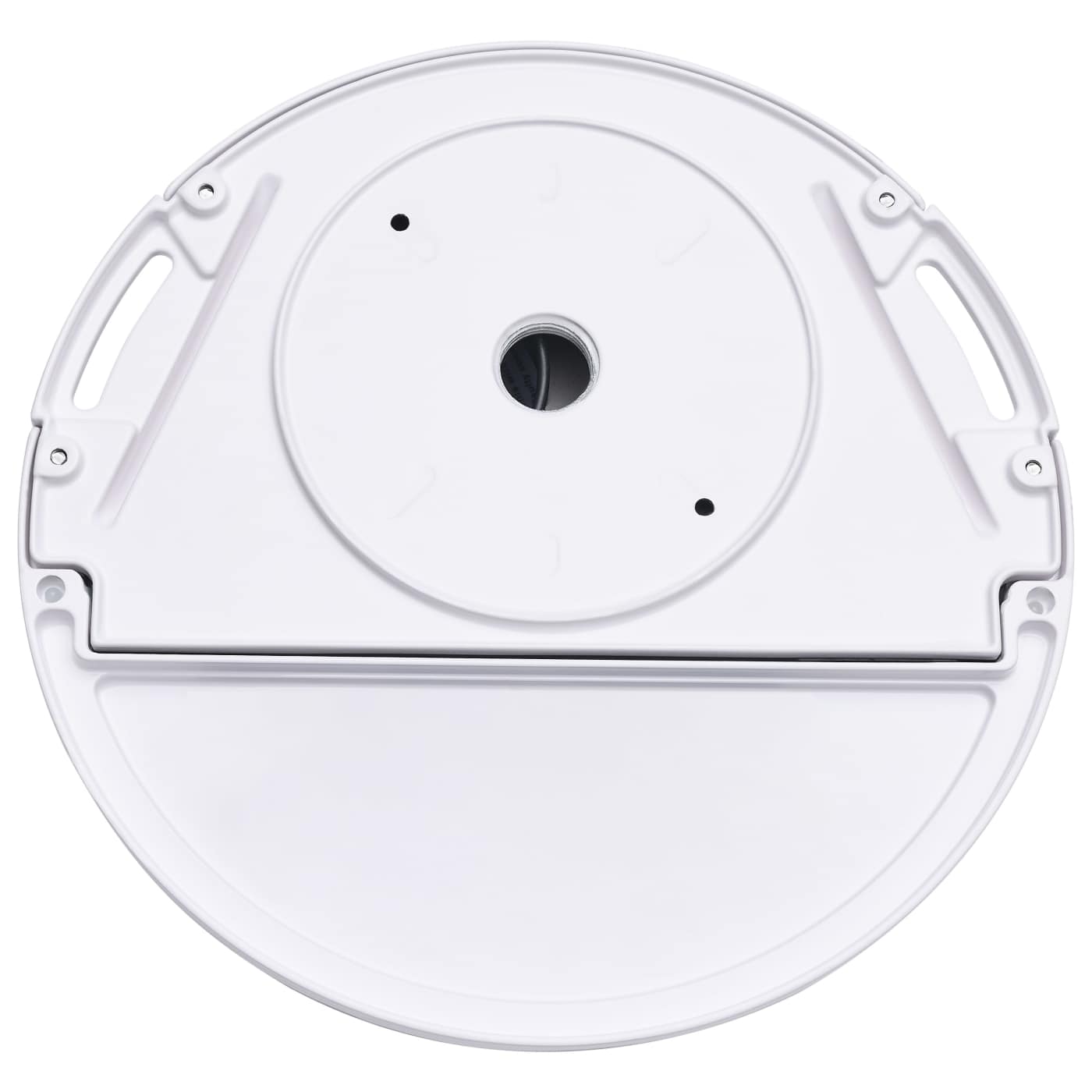

SATCO|NUVO's CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt white wall pack is just under nine inches in diameter, with superior light output and a convenient, easy to use CCT selection switch inside the fixture that allows you to choose between 3000K, 4000K, and 5000K at installation. Additional features include a bypassable photocell for dusk to dawn operation, multiple knockout points for pass-through wiring, and a wet location IP65 rating. These maintenance-free LED fixtures are ready for whatever outdoor conditions come their way. Perfect for multi-unit housing, light commercial use, landscaping, and more.
  • DLC Premium

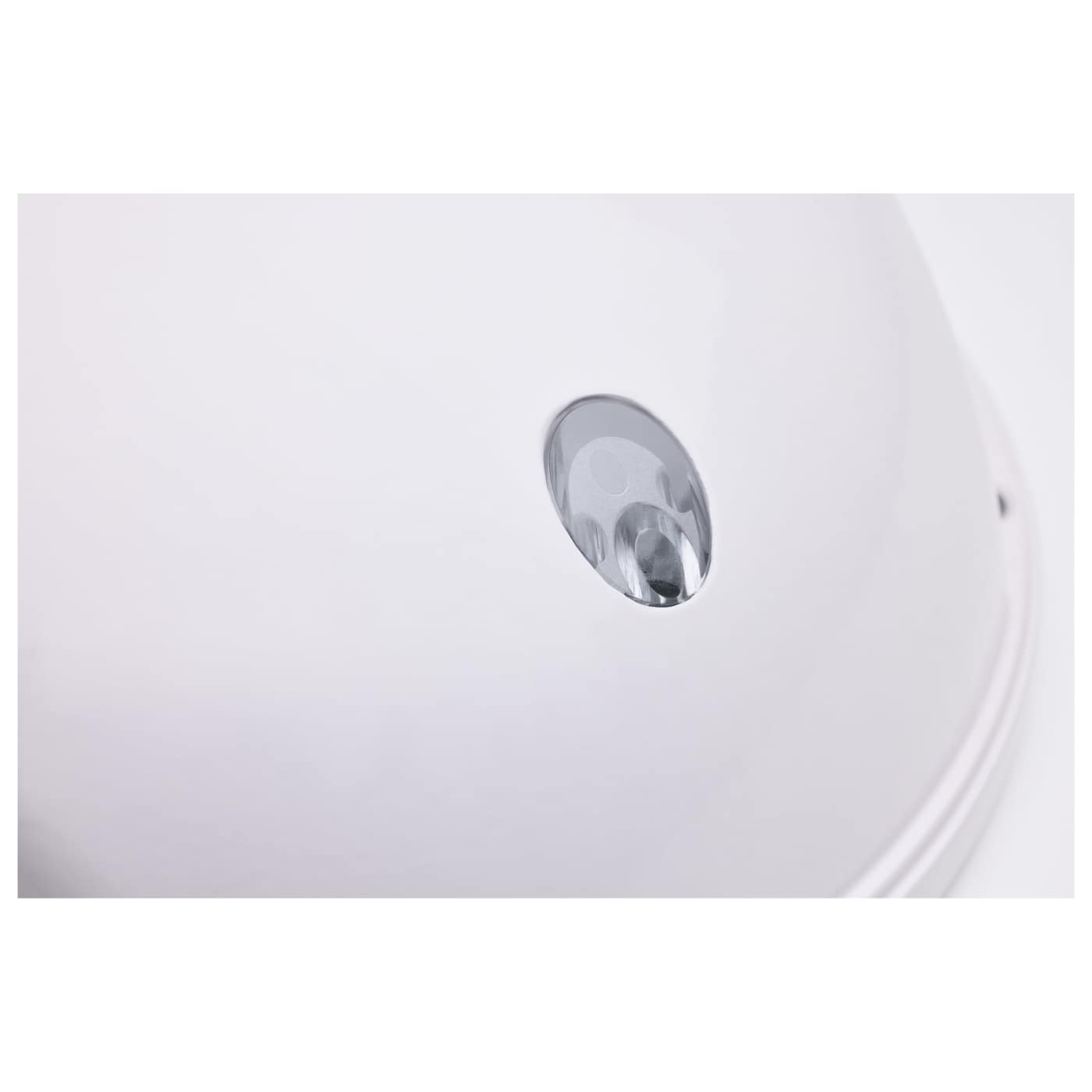

  • Integrated Bypassable Photocell
  • CCT Selectable
  • UV Stabilized Powder Coated Finish
  • IP65 rated
  • 2.5KV Surge Protection
  • 0-10V Dimmable
Lights

65-752

LED SMALL 20W ROUND WALL PACK

LED Small Round Wall Pack; 20W; CCT Selectable; Bypassable Photocell; 120-277 Volt; White Finish

SATCO|NUVO's CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt white wall pack is just under nine inches in diameter, with superior light output and a convenient, easy to use CCT selection switch inside the fixture that allows you to choose between 3000K, 4000K, and 5000K at installation. Additional features include a bypassable photocell for dusk to dawn operation, multiple knockout points for pass-through wiring, and a wet location IP65 rating. These maintenance-free LED fixtures are ready for whatever outdoor conditions come their way. Perfect for multi-unit housing, light commercial use, landscaping, and more.
  • DLC Premium
  • Integrated Bypassable Photocell
  • CCT Selectable
  • UV Stabilized Powder Coated Finish
  • IP65 rated
  • 2.5KV Surge Protection
  • 0-10V Dimmable

Specifications

General
StatusActive
Fixture TypeArea Light
FinishWhite
Wattage20W
Lumen Output2600L-2800L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureOutdoor
Specifications
TechnologyLED
Wattage20W
Lumen Output2600L-2800L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80
Voltage120V-277V
Beam Angle100
Rated Hours50000
Operating Temperature-30C (-22F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Photocell or SensorYes - Bypassable
Surge ProtectionBuilt-in surge protection - 2.5KV
Weight (lb.)2.42
IP RatingIP65
MaterialDie-cast Aluminum

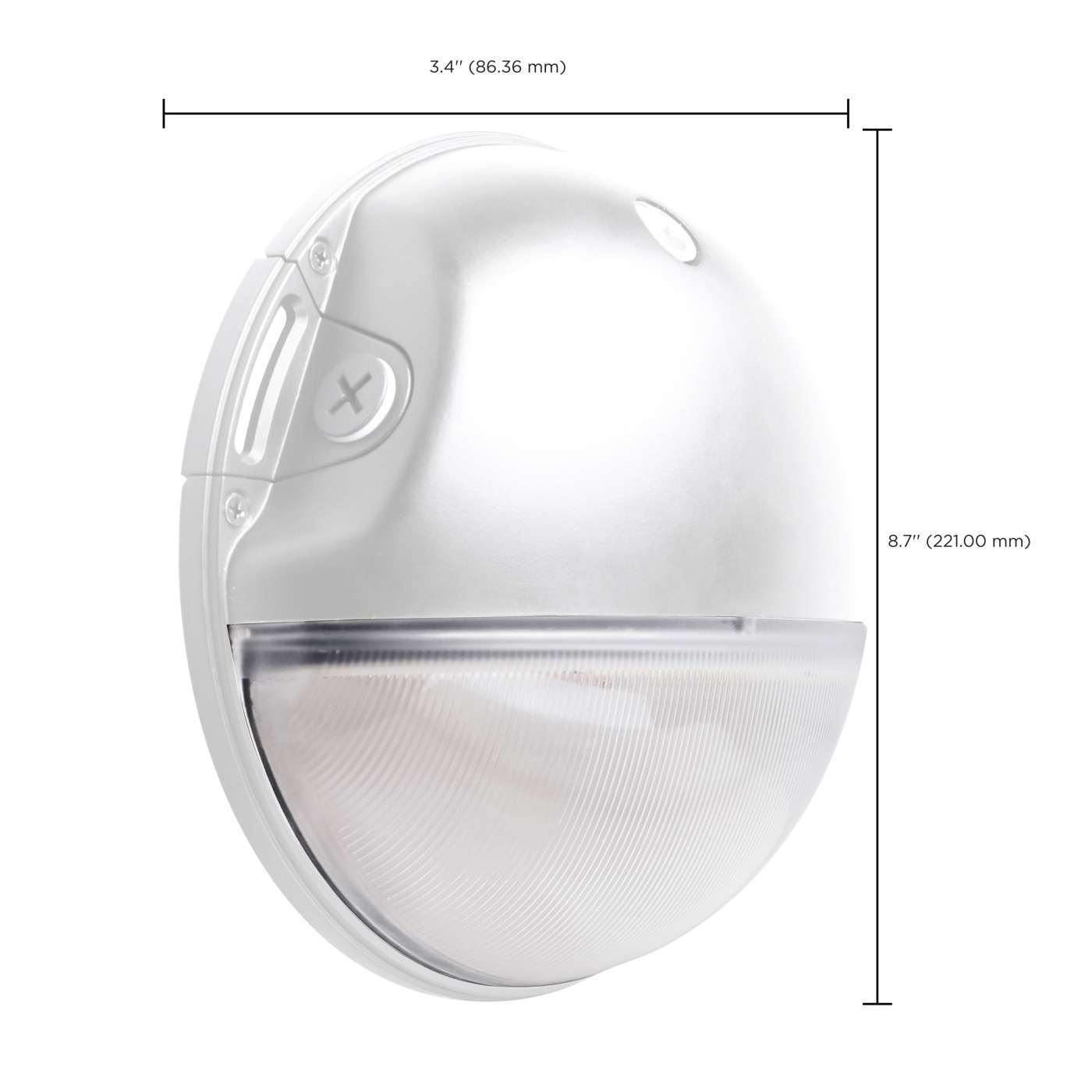

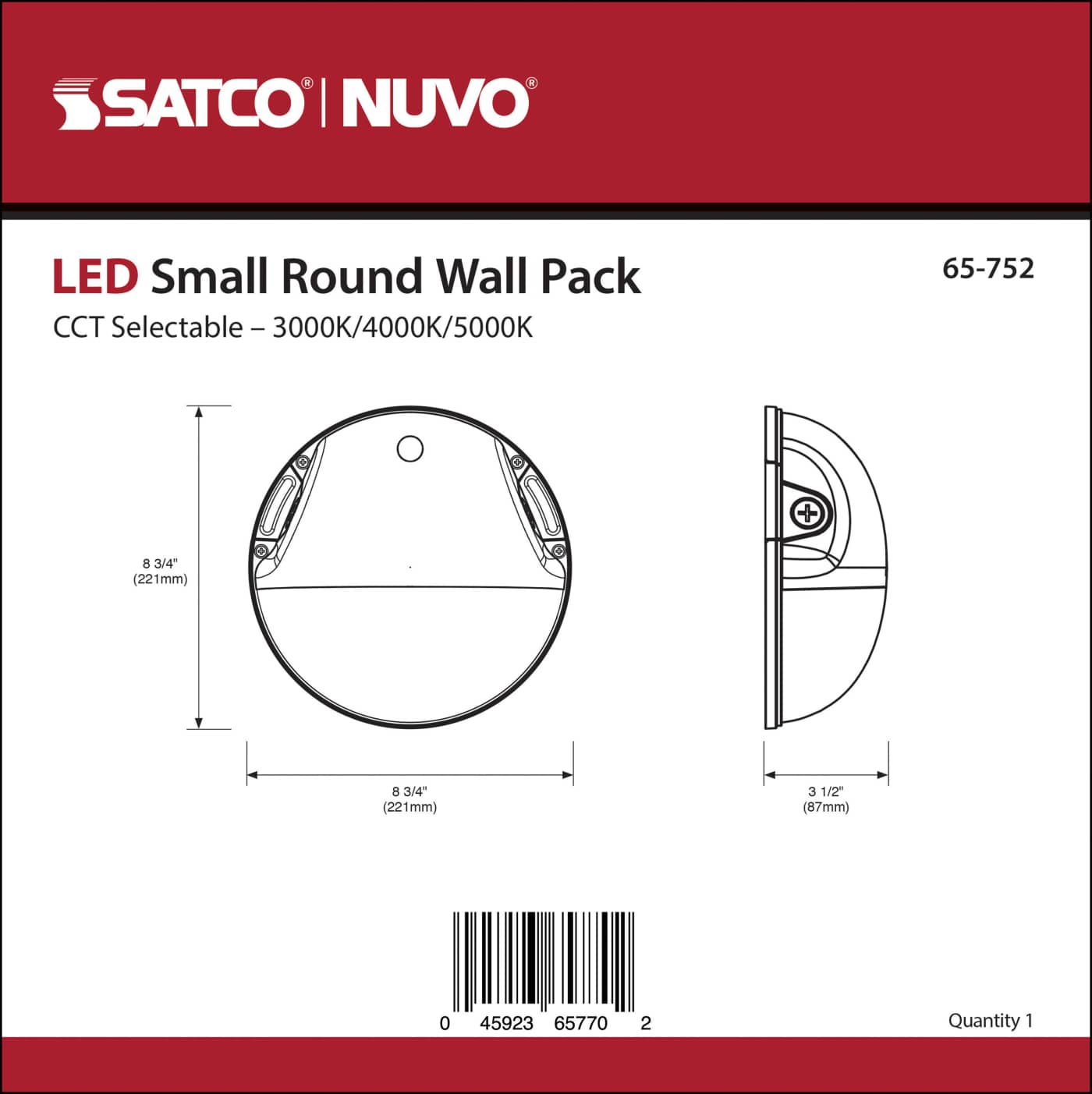

Dimensions
Height (in.)8.7
Extension (in.)3.4
Compliance
Safety ListingcULus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDPLGEPXY78U37
ADA CompliantYes
B.U.G. RatingB1-U3-G2
Air Tight RatedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Flicker FreeYes
SDS SheetLED Fixture
Additional Information
Additional InformationUV stabilized powder coated finish
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923657702
Each Quantity1
Each Length (in.)8.94
Each Width (in.)8.94
Each Height (in.)3.62
Each Weight (lb.)2.64
Each Cube (CuFt.)0.1674
Pack TypeColor Box
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923657709
Case Quantity10
Case Length (in.)18.98
Case Width (in.)18.50
Case Height (in.)9.72
Case Weight (lb.)28.49
Case Cube (CuFt.)1.9751
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Eaton DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01 Visit
Dimmer Eaton SF10P Visit
×
×

Precautions

No precautions available at this time.

×
