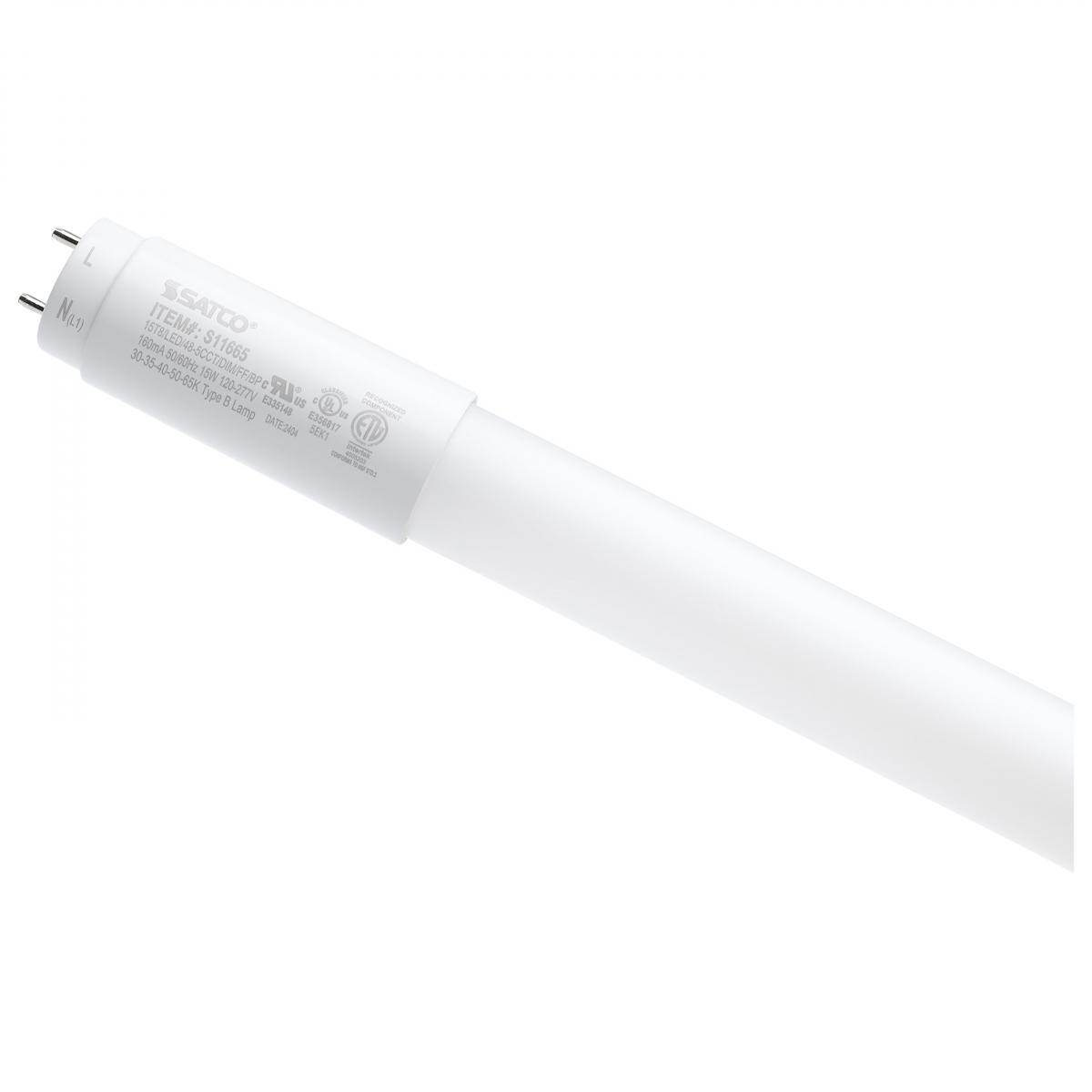

15T8/LED/48-5CCT/DIM/LF/BP - S11665
15T8/LED/48-5CCT/DIM/LF/BP - S11665
15T8/LED/48-5CCT/DIM/LF/BP - S11665
15T8/LED/48-5CCT/DIM/LF/BP - S11665
S11665

15T8/LED/48-5CCT/DIM/LF/BP

  • 15 Watt T8 LED
  • 48 Inch
  • 30K/35K/40K/50K/65K CCT Selectable
  • Low Optical Flicker (less than 5%)
  • Medium Bi Pin Base
  • Type B Ballast Bypass
  • 120-277 Volt
  • Frost Finish
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
beam_angle^160^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11665 SpecificationsS11665 Photometrics.iesS11665 Instructions.pdf
Tools
Lighting Layout Analysis For S11665
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
15 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Low Optical Flicker (less than 5%); Medium Bi Pin Base; Type B Ballast Bypass; 120-277 Volt; Frost Finish
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Dimmable Text120V only
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.7KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.160-0.065A
Has CameraNo
IOT EnabledNo
Nominal Length48.0
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)160
Color TempSoft White to Daylight
CRI80+
Dimming TypeReverse Phase
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens2000L/2100L/2200L/2200L/2100L
Volts120V-277V
Watts15W
Physical
Lamp BaseMedium Bi Pin
FinishFrost
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL47.2
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Features
Flicker FreeYes
Compliance
DLC IDS-PM9DJP
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923116650
Case Cube1.2633
Case Height6.69
Case Length50.2
Case Quantity25
Case UPC10045923116657
Case Weight16.76
Case Width6.5
EA Cube0.0387
EA Height1.18
EA Length48.0
EA Quantity1
EA Weight0.53
EA Width1.18
Inner Cube0.0
Pack TypeSleeve
Web Length47.2
Web Width1.0
