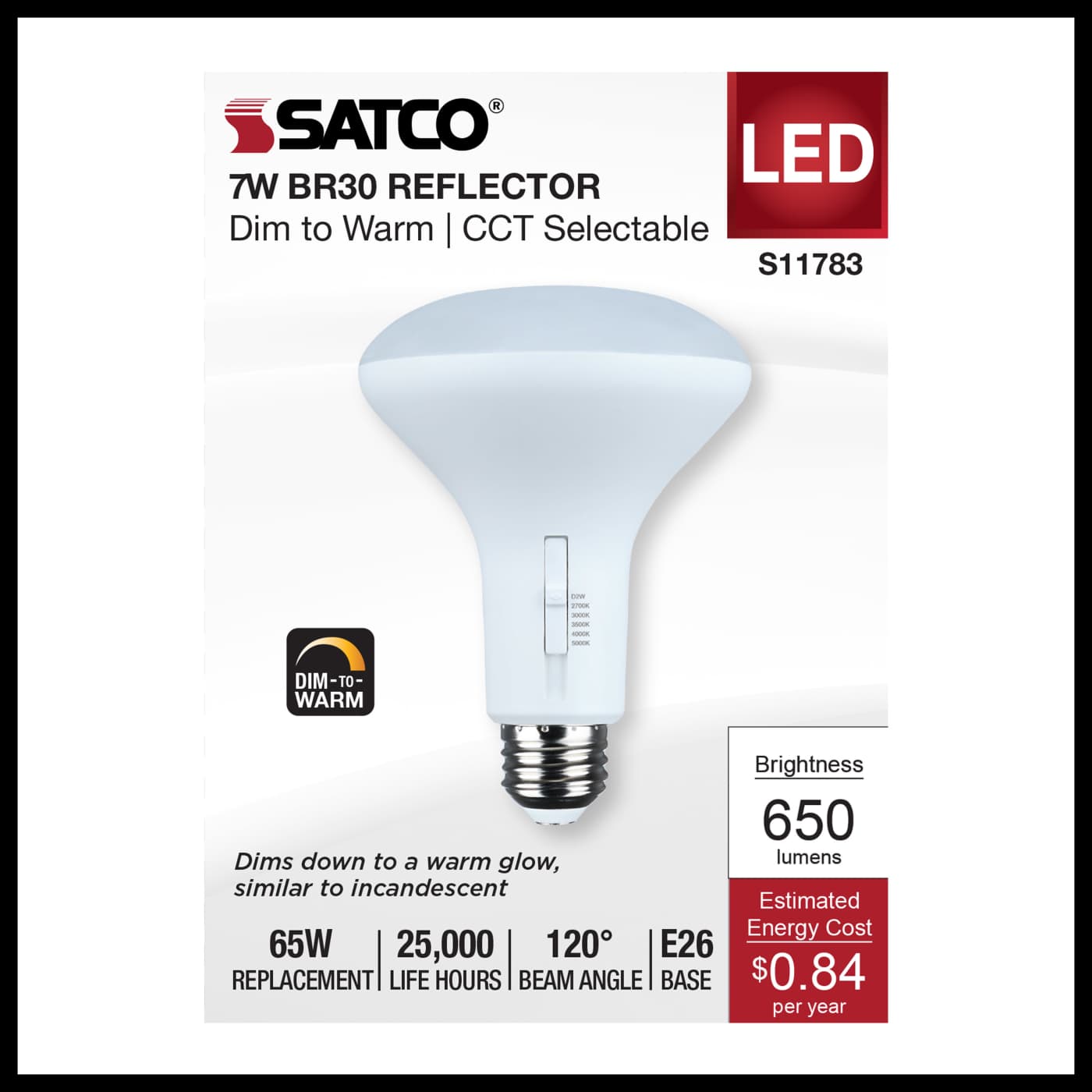

S11783

7BR30/LED/5CCT/WD/120V

  • 7 Watt BR30 LED

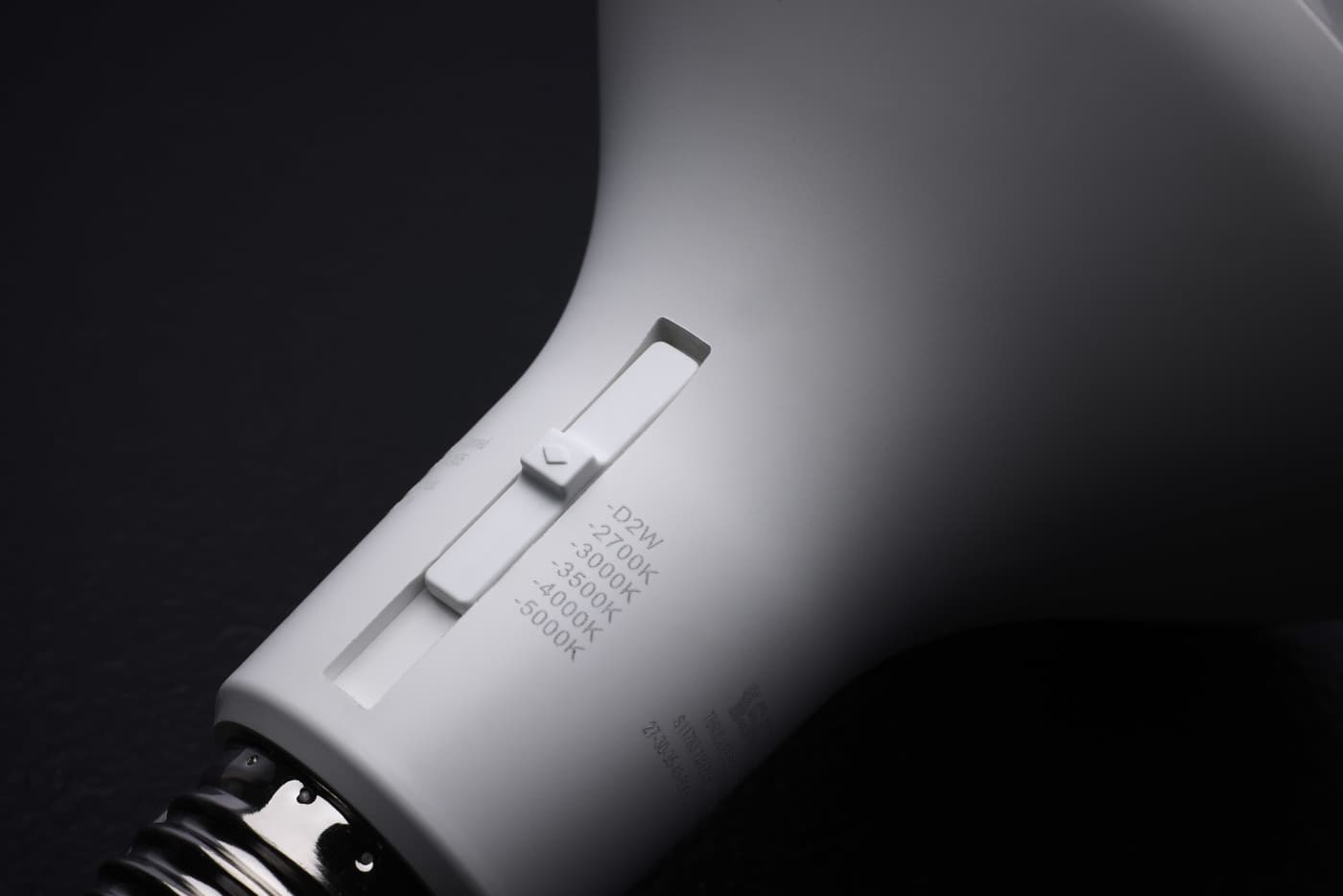

  • 27K/30K/35K/40K/50K CCT Selectable
  • Dim to Warm
  • White Finish
  • 120 Volt
location_rating^damp^1
cc_selectable^y^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
warranty^5_years^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

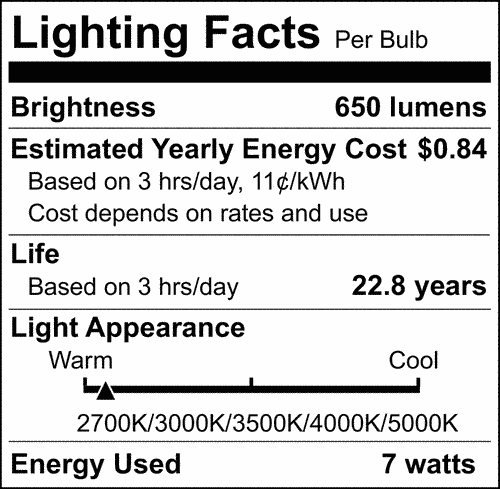

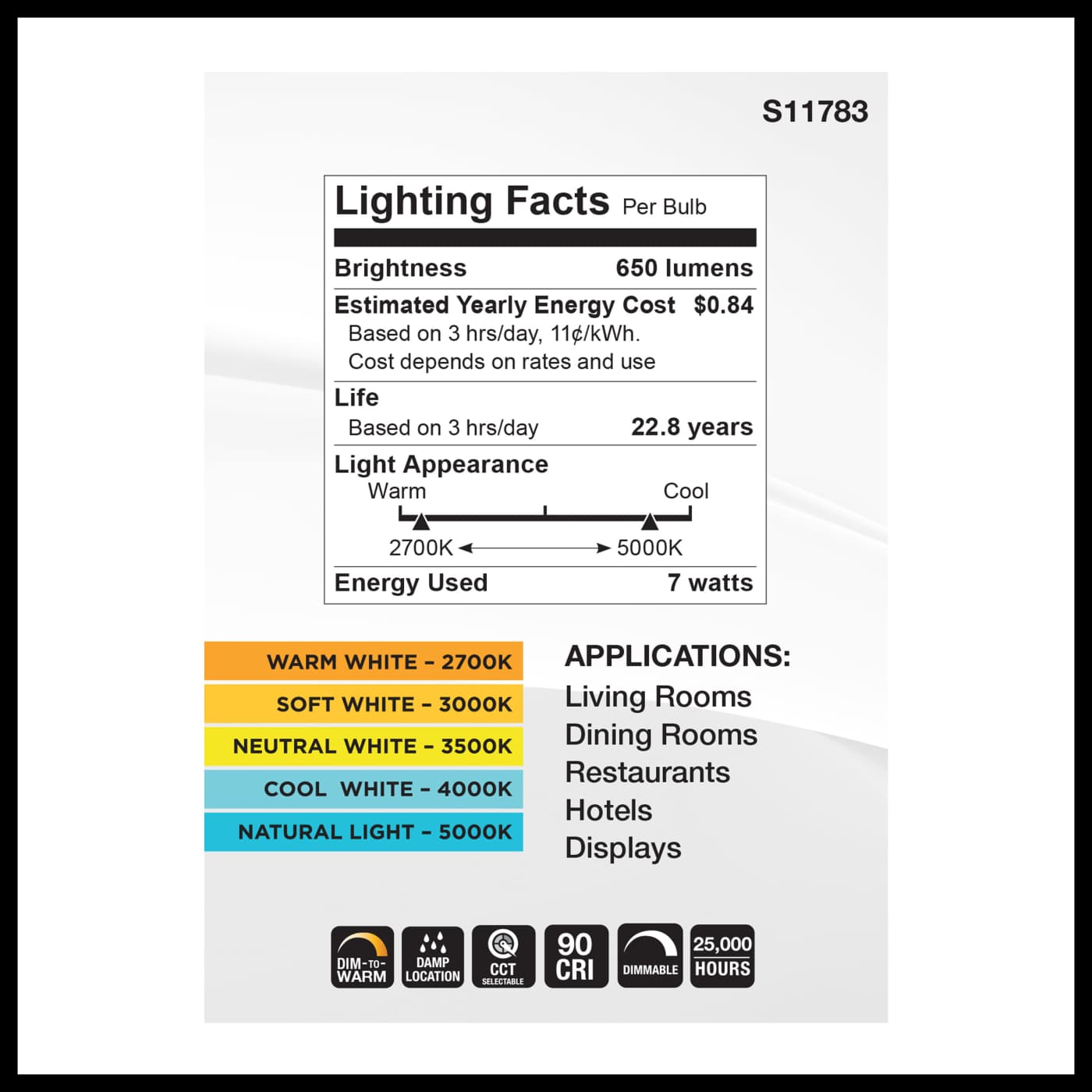

S11783 SpecificationsT20 LED|LAMPS & DOWNLIGHT RETROFITSS11783 Lighting Facts Label
Tools
Lighting Layout Analysis For S11783
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Transform your lighting experience with SATCO NUVO's LED S11783 7-watt reflector light bulb. Designed for superior energy efficiency, this bulb provides vibrant, true-to-life white light with an impressive CRI of 90. The classic BR30 shape, allows this lamp to fit seamlessly into a variety of fixtures to suit many different needs. Offering a 5 CCT range from a soft 2700K to a crisp 5000K, and a dim-to-warm capability feature from 3000K to 2000K, this lamp allows you to enjoy the nostalgic charm of traditional incandescent lighting with modern efficiency. With a wide 120 degrees beam angle, this bulb is versatile enough to suit any environment, from living rooms and dining areas to offices, museums, and retail stores, ensuring the perfect ambiance for every setting.

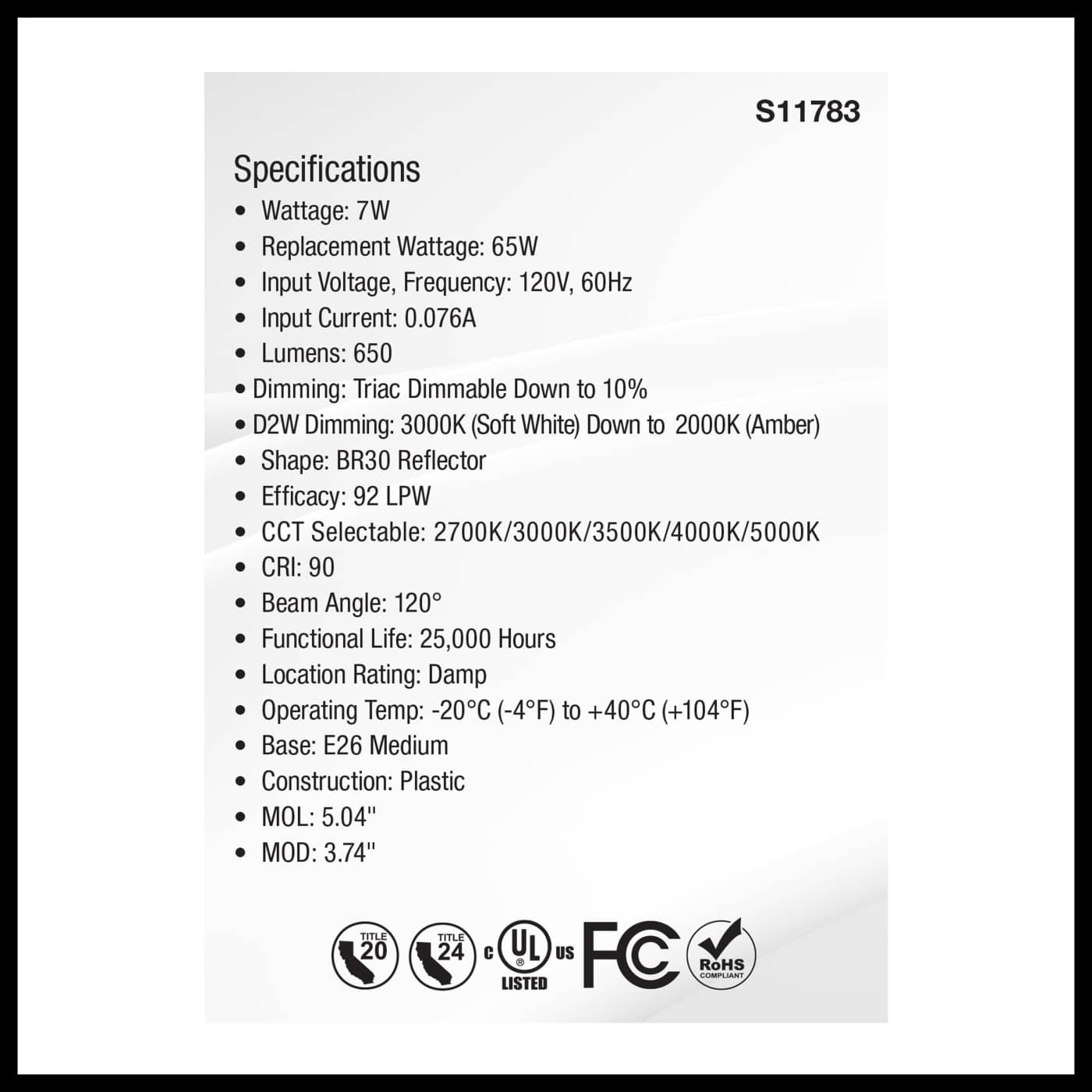

Products Specs
General
CompanySATCO
Center Beam Candle Power226
Lamp FilamentLED
MaterialPlastic
Fixture TypeReflector
Product NotesCCT Range at D2W: 3000K-2000K
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion18.7%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.076A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)120
Color TempWarm Dimming, Warm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens650L
Volts120v
Watts7W
Physical
Lamp BaseMedium
FinishWHITE
Housing ColorWhite
ANSI BaseE26
Lamp TypeBR30

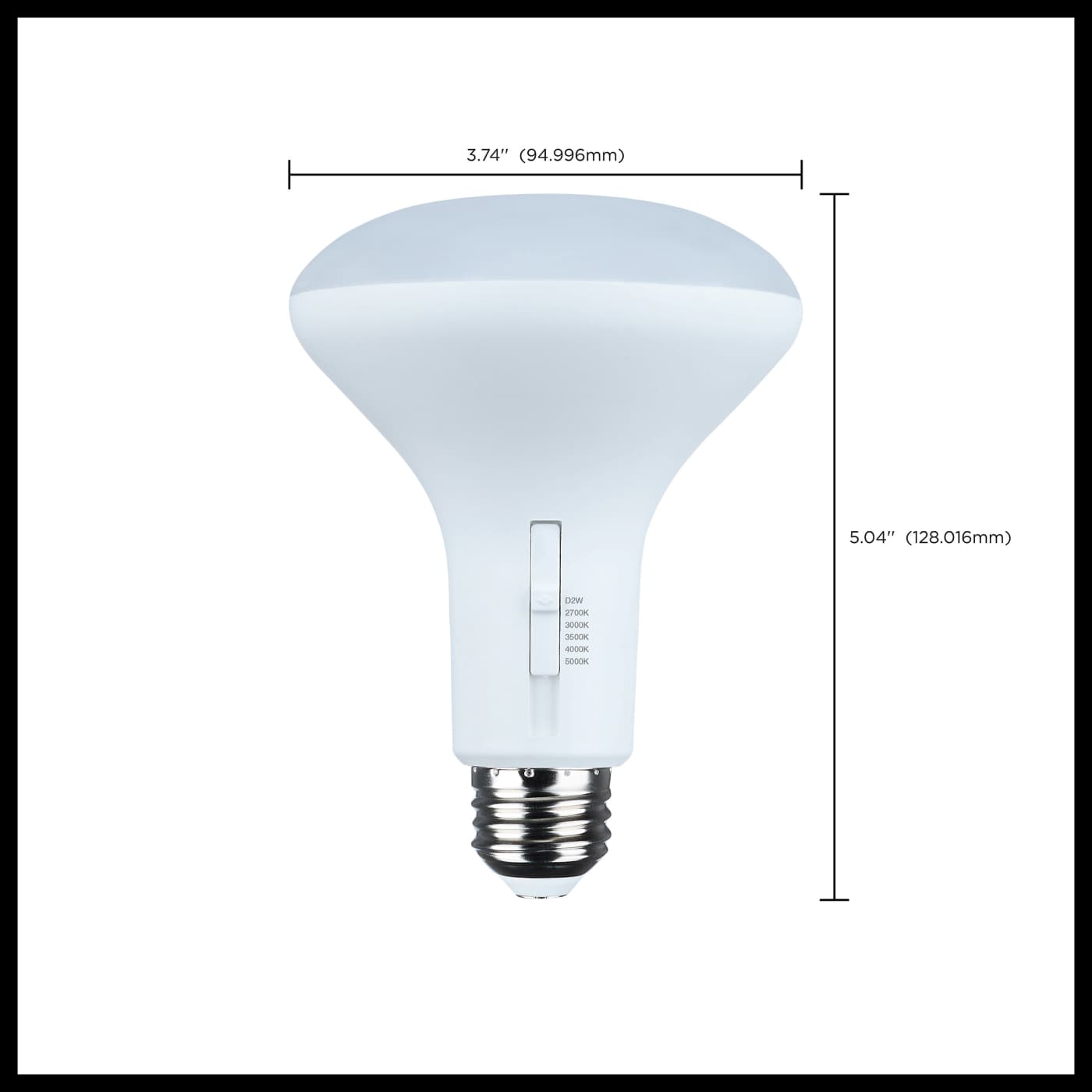

MOD Lamps3.74
MOL5.04
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Title 20Yes
T24/JA8 CompliantYes
Packaging
UPC045923117831
Case Cube3.0335
Case Height12.01
Case Length25.2
Case Quantity48
Case UPC10045923117838
Case Weight17.7
Case Width17.32
EA Cube0.0478
EA Height5.43
EA Length3.9
EA Quantity1
EA Weight0.29
EA Width3.9
Inner Cube0.6551
Inner Height11.22
Inner Length12.2
Inner Quantity12
Inner UPC20045923117835
Inner Weight3.92
Inner Width8.27
Pack TypeColor Box
Web Length5.04
Web Width3.74
