S29805

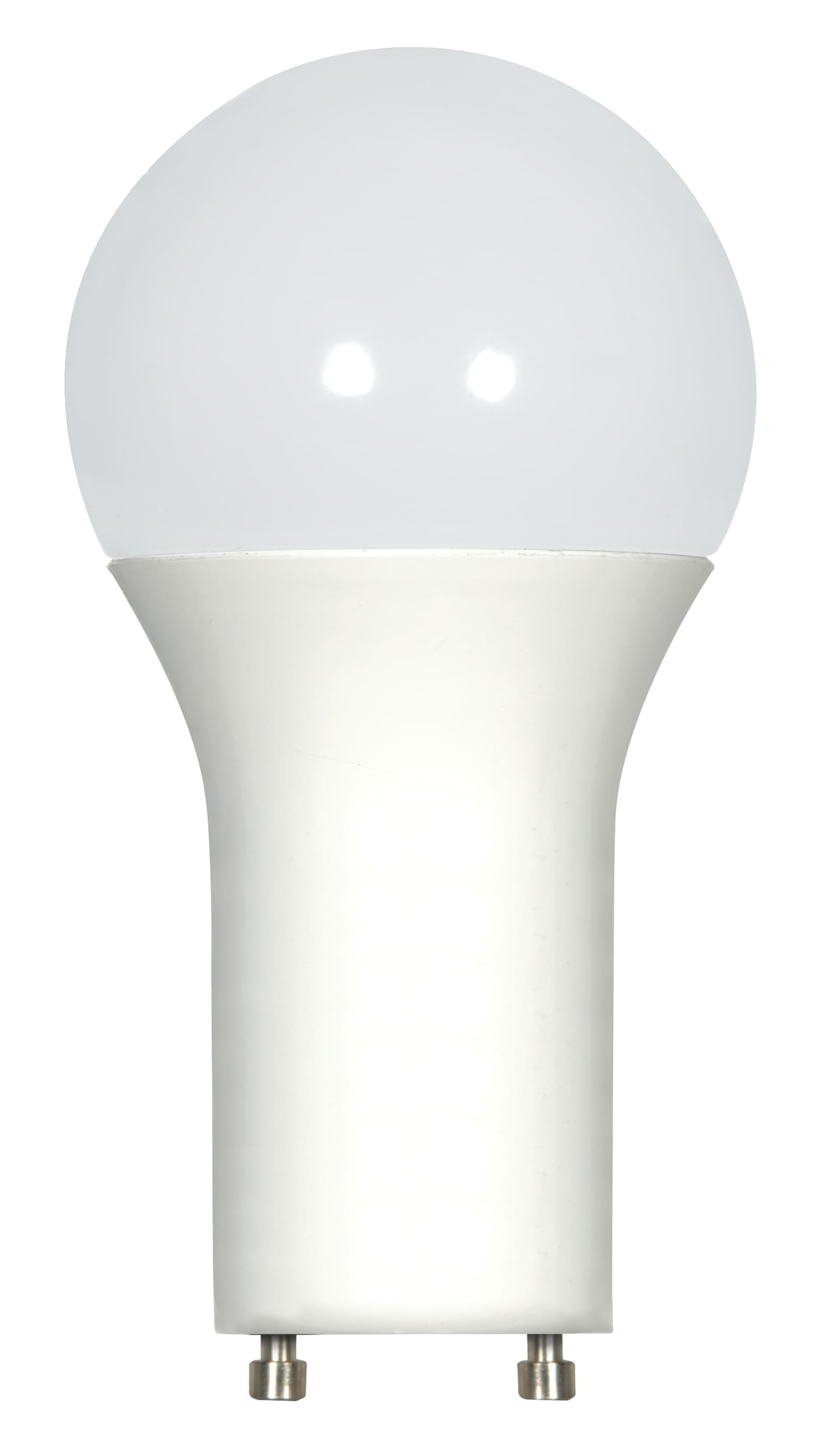

15A19/LED/40K/1600/120V/GU24

  • 15 Watt
  • A19 LED
  • Frosted
  • 4000K
  • GU24 base
  • 220 deg. Beam Angle
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29805 SpecificationsS29805 Photometrics.ies100W Replacement omni-directional LED A19 lamps
Tools
Lighting Layout Analysis For S29805
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
15 Watt; A19 LED; Frosted; 4000K; GU24 base; 220 deg. Beam Angle; 120 Volt
Products Specs
General
US State BanCA
CompanySATCO
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTraditional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.125A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionUniversal
Power Factor0.94
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempCool White
CRI80+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens1600L
Volts120v
Watts15W
Physical
Lamp BaseBi Pin GU24
FinishFrost
Housing ColorWhite
ANSI BaseGU24
Lamp TypeA19

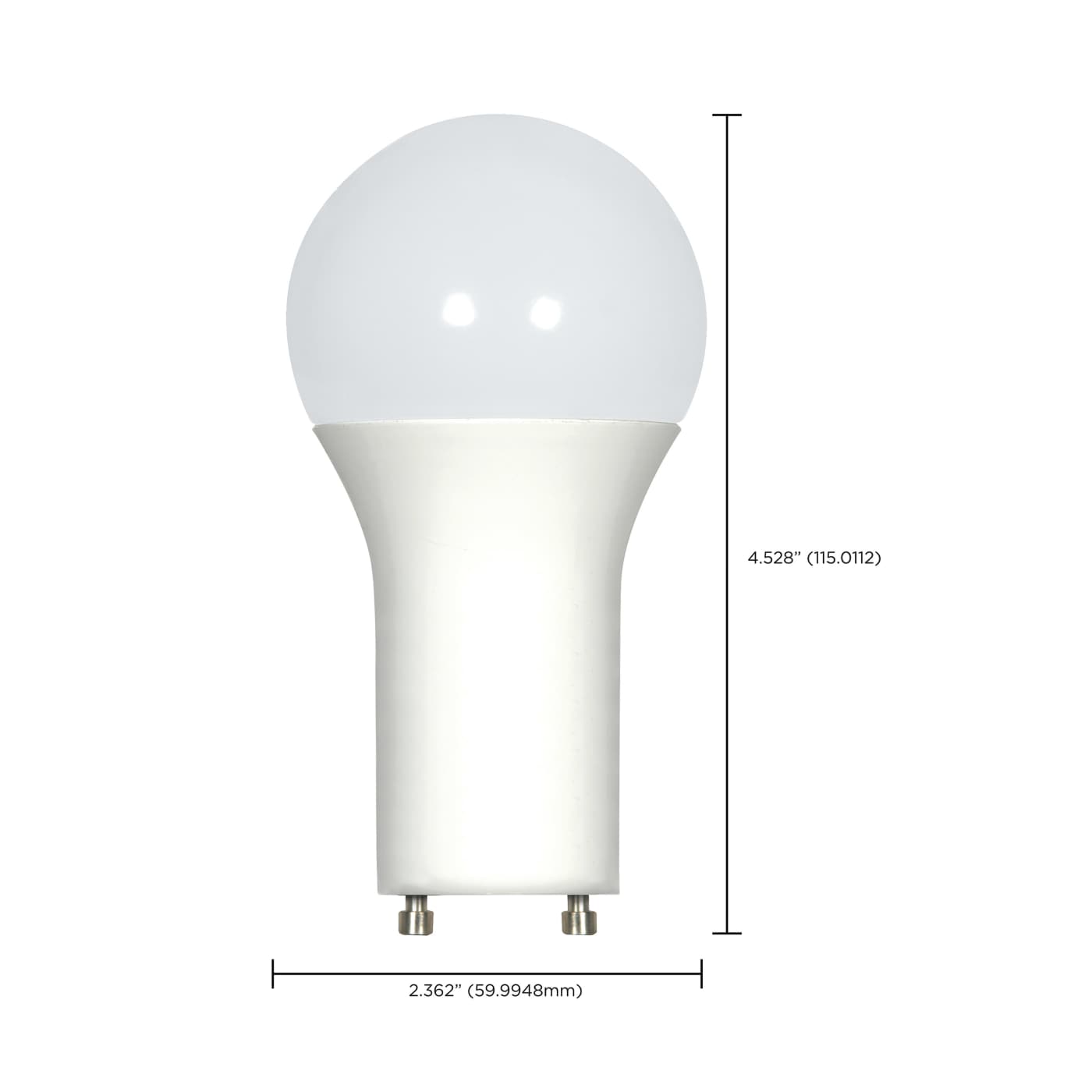

MOD Lamps2.362
MOL4.528
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA T20 Compliant SubstituteS28488
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923298059
Case Cube0.6768
Case Height12.32
Case Length11.22
Case Quantity24
Case UPC10045923298056
Case Weight8.97
Case Width8.46
EA Cube0.0183
EA Height5.31
EA Length2.44
EA Quantity1
EA Weight0.33
EA Width2.44
Inner Cube0.1321
Inner Height5.63
Inner Length7.8
Inner Quantity6
Inner UPC20045923298053
Inner Weight2.12
Inner Width5.2
Pack TypeBox
Web Length4.528
Web Width2.362
