| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Dimmable Text | 0-10V Dimming Only |
| Material | Die-cast Aluminum |
| Fixture Type | Canopy |
| Status | Transitioning |
| Style | Utility |
| Most Current Generation | 65-980 |
| Surge Protection | Built-in surge protection - 2KV |
| Total Harmonic Distortion | 10.20% |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Bronze |
| Additional Info | UV stabilized powder coated finish |
| Amps | 0.280-0.101A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Polycarbonate (PC) |
| Photo Cell | Multiple Optional Sensors Available |
| Power Factor | 0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 200W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 150 |
| Color Temp | Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +40C (+104F) |
| Lumens | 3360L |
| Volts | 120V-277V |
| Watts | 28W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Square |
| Warranty | 5-Years |
|---|
| Bug Rating | B2-U3-G1 |
|---|---|
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | PL9JAGKOXH4R |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923531385 |
|---|---|
| Case Cube | 2.2451 |
| Case Height | 11.42 |
| Case Length | 21.46 |
| Case Quantity | 6 |
| Case UPC | 10045923531382 |
| Case Weight | 25.79 |
| Case Width | 15.83 |
| EA Cube | 0.3185 |
| EA Height | 10.51 |
| EA Length | 10.39 |
| EA Quantity | 1 |
| EA Weight | 3.53 |
| EA Width | 5.04 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

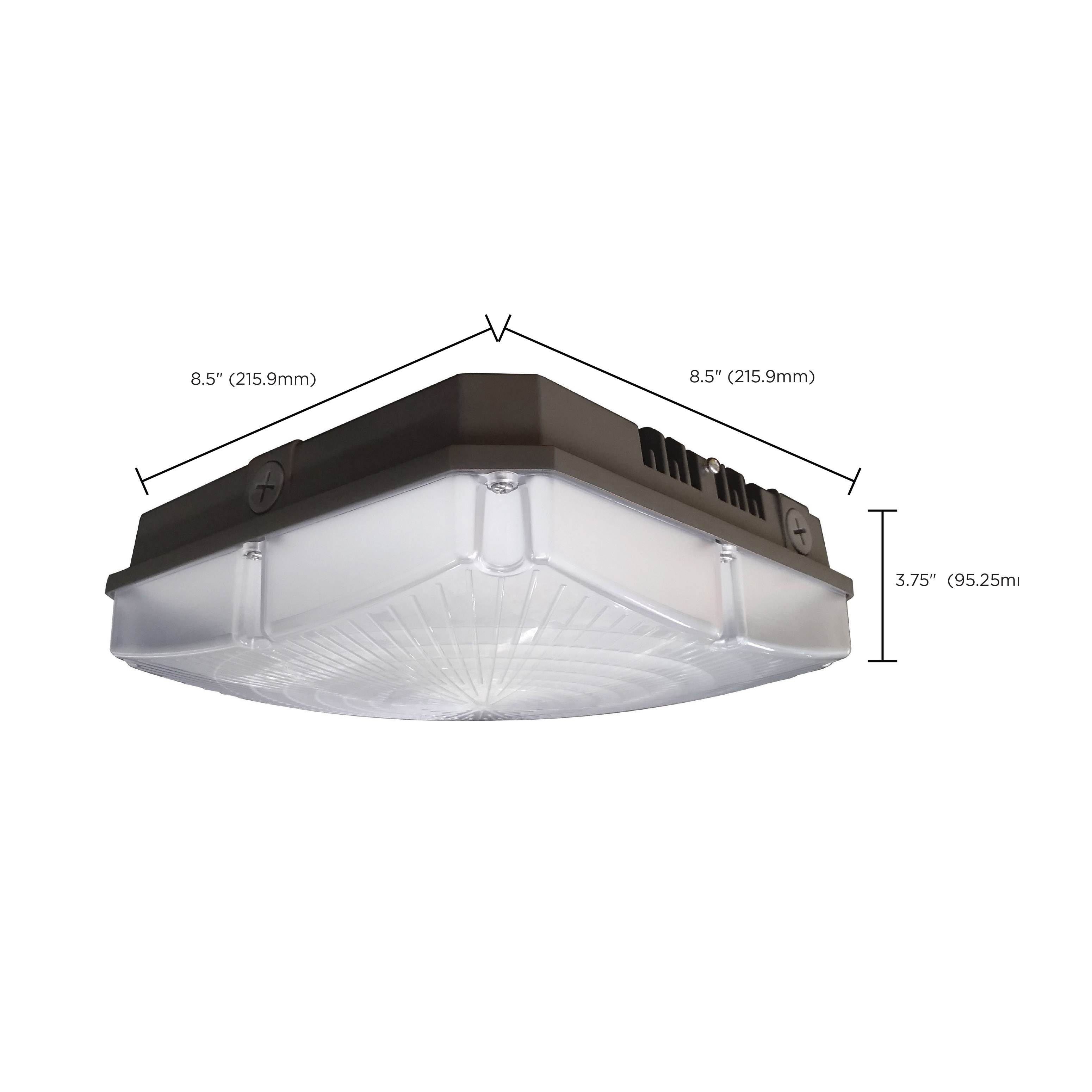

| Web Height | 3.75 |
| Web Length | 8.5 |
| Web Width | 8.5 |
