65-144

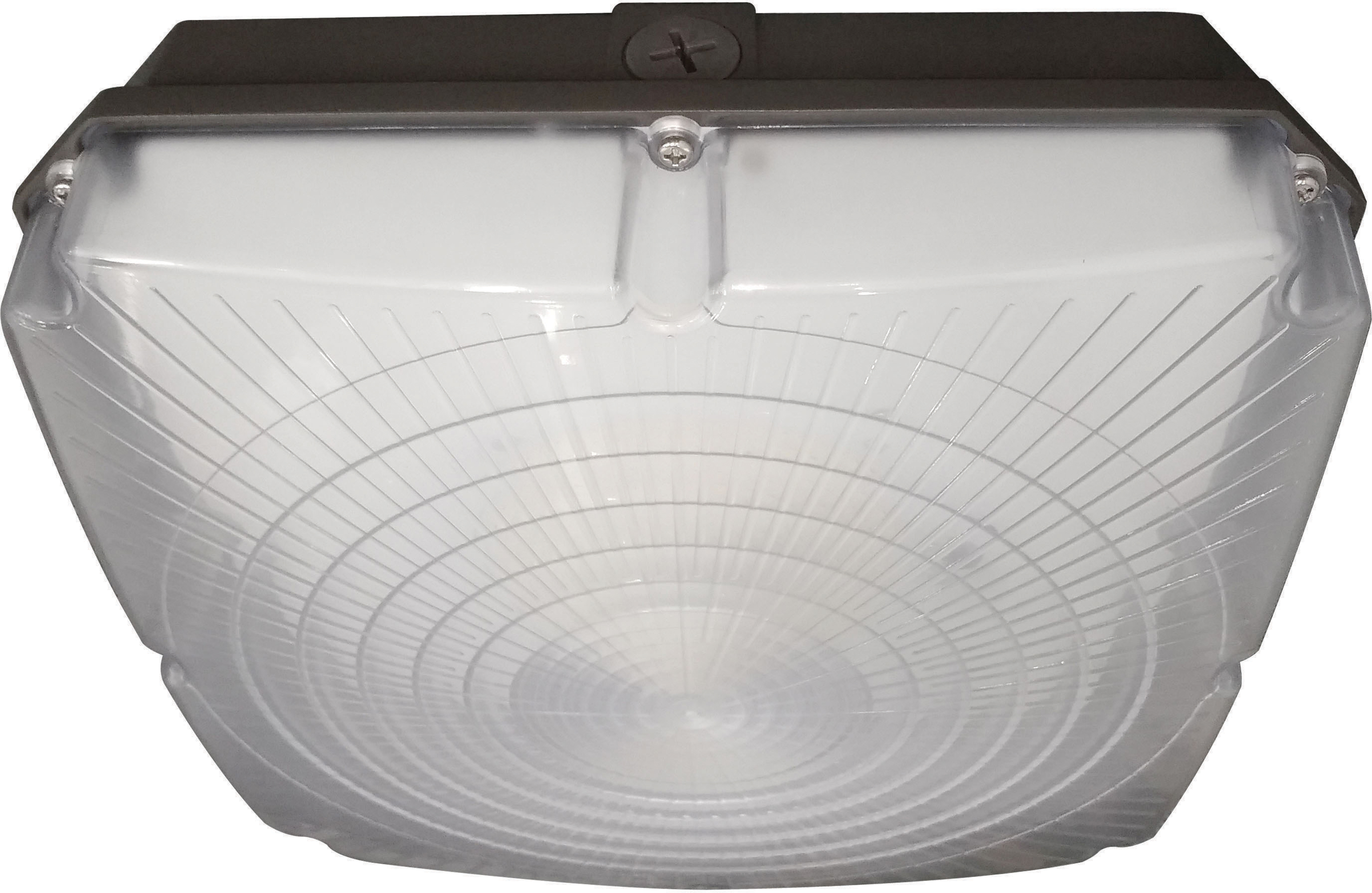

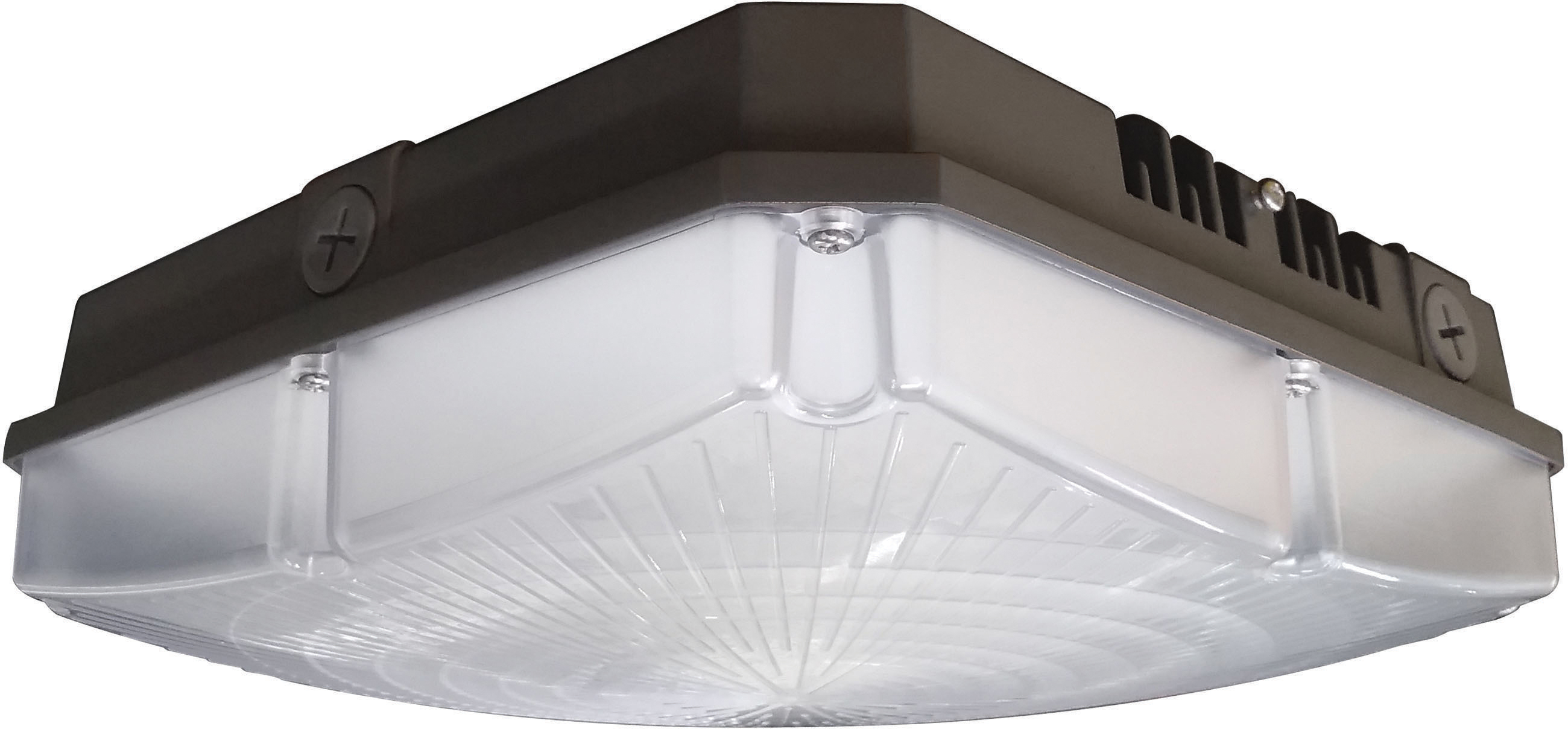

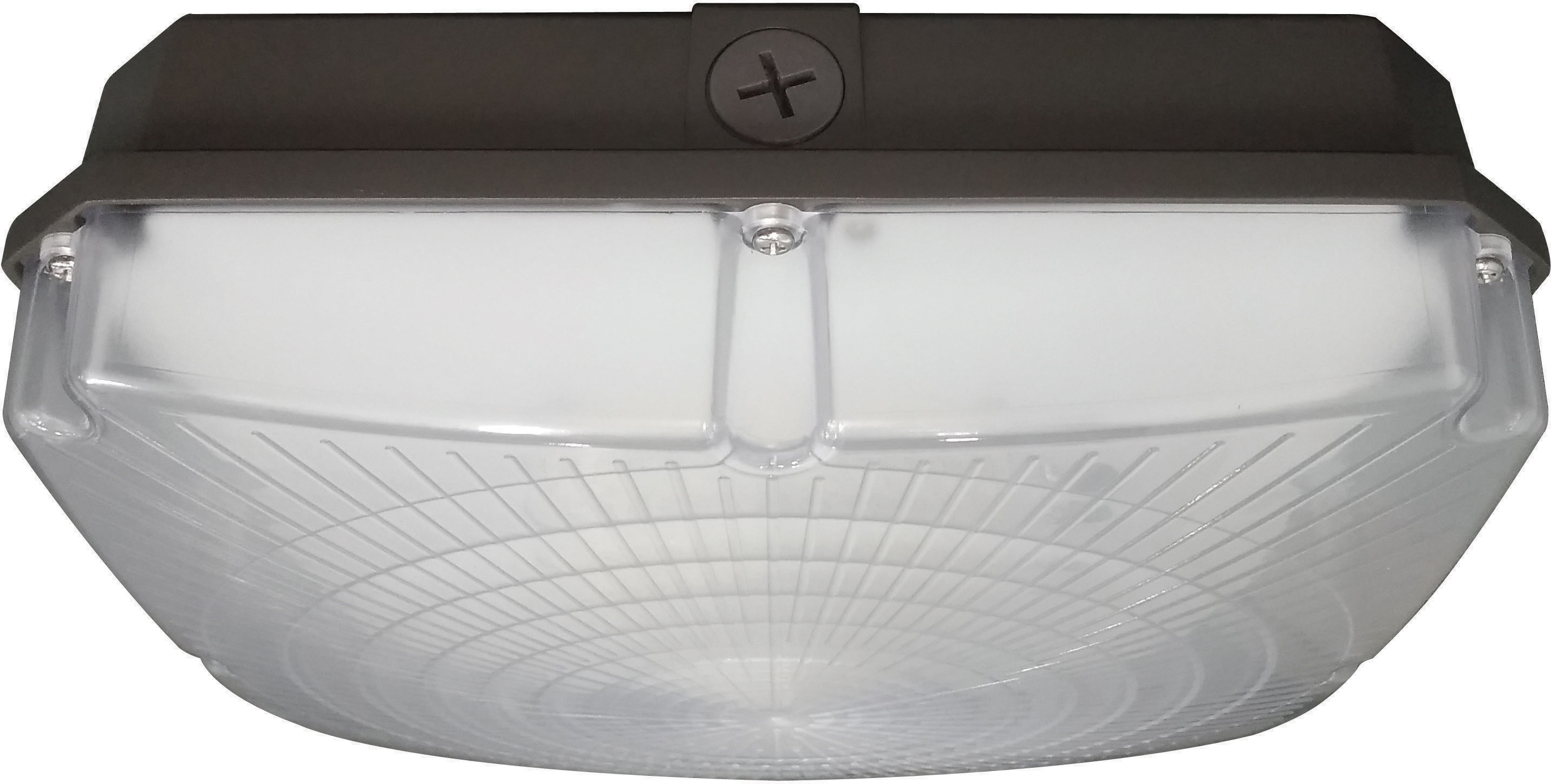

40W LED CANOPY FIXTURE 10"

  • LED Canopy Fixture
  • 40W
  • 4000K
  • 120-277V
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-144 Specifications65-144 Instructions EnSpFr65-144 Wiring Diagram
Tools
Lighting Layout Analysis For 65-144
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Canopy Fixture; 40W; 4000K; 120-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming Only
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusTransitioning
StyleUtility
Most Current Generation65-981
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion9.50%
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.400-0.144A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Photo CellMultiple Optional Sensors Available
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent175W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +40C (+104F)
Lumens4800L
Volts120V-277V
Watts40W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB2-U3-G2
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPL8MXJJCOONQ
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923531446
Case Cube2.0625
Case Height12.4
Case Length23.03
Case Quantity4
Case UPC10045923531443
Case Weight25.02
Case Width12.48
EA Cube0.4402
EA Height11.61
EA Length11.89
EA Quantity1
EA Weight5.29
EA Width5.51
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

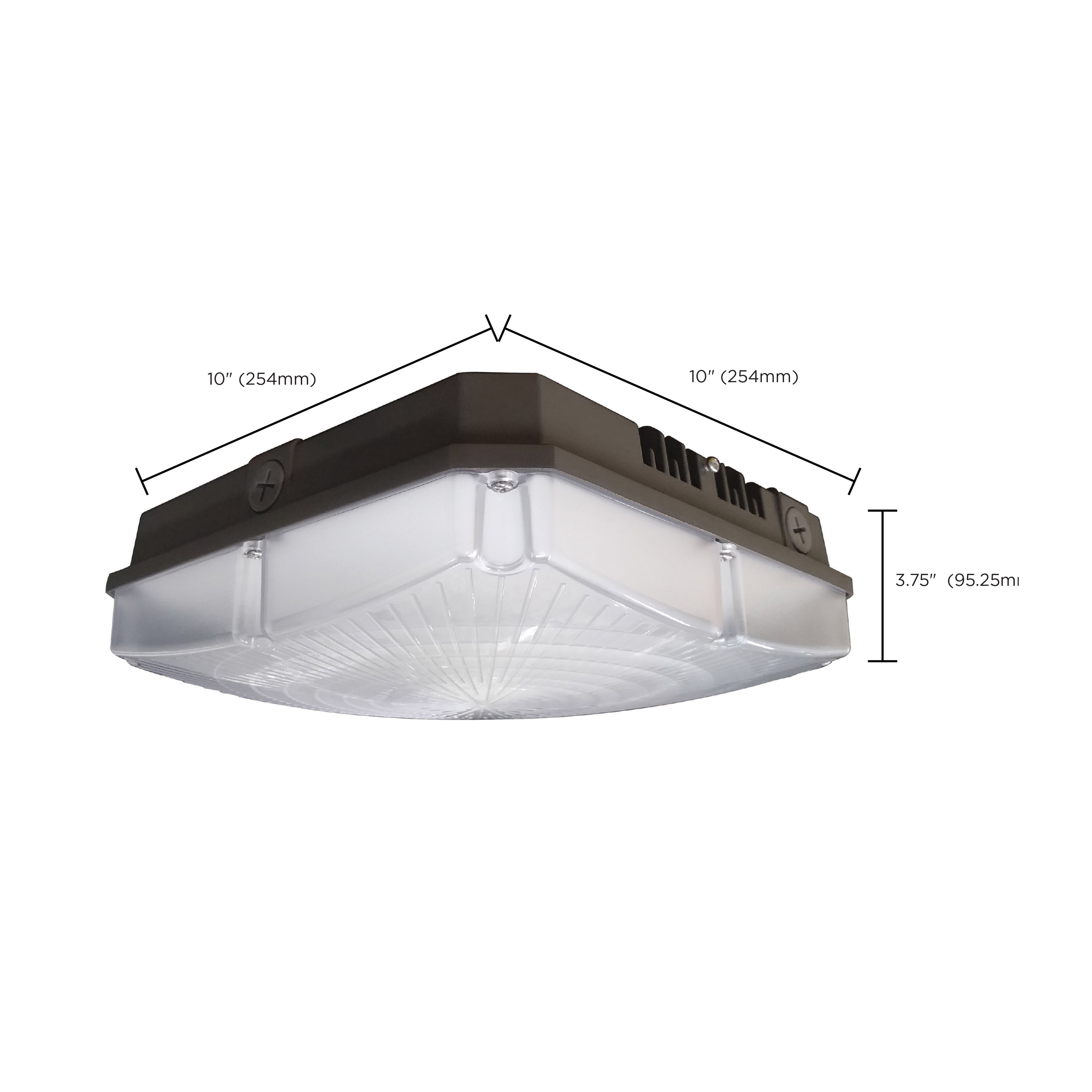

Web Height3.75
Web Length10.0
Web Width10.0
