65-146

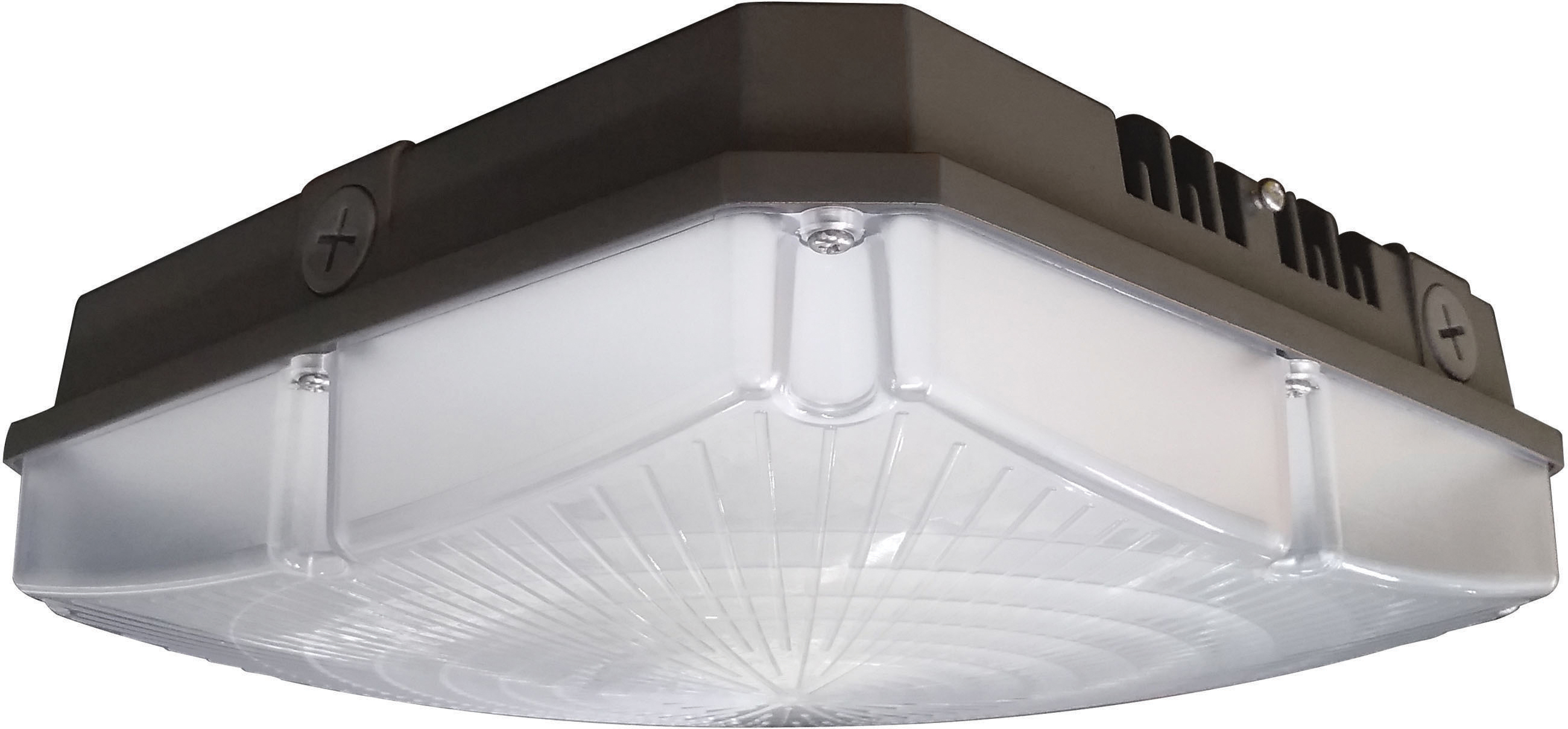

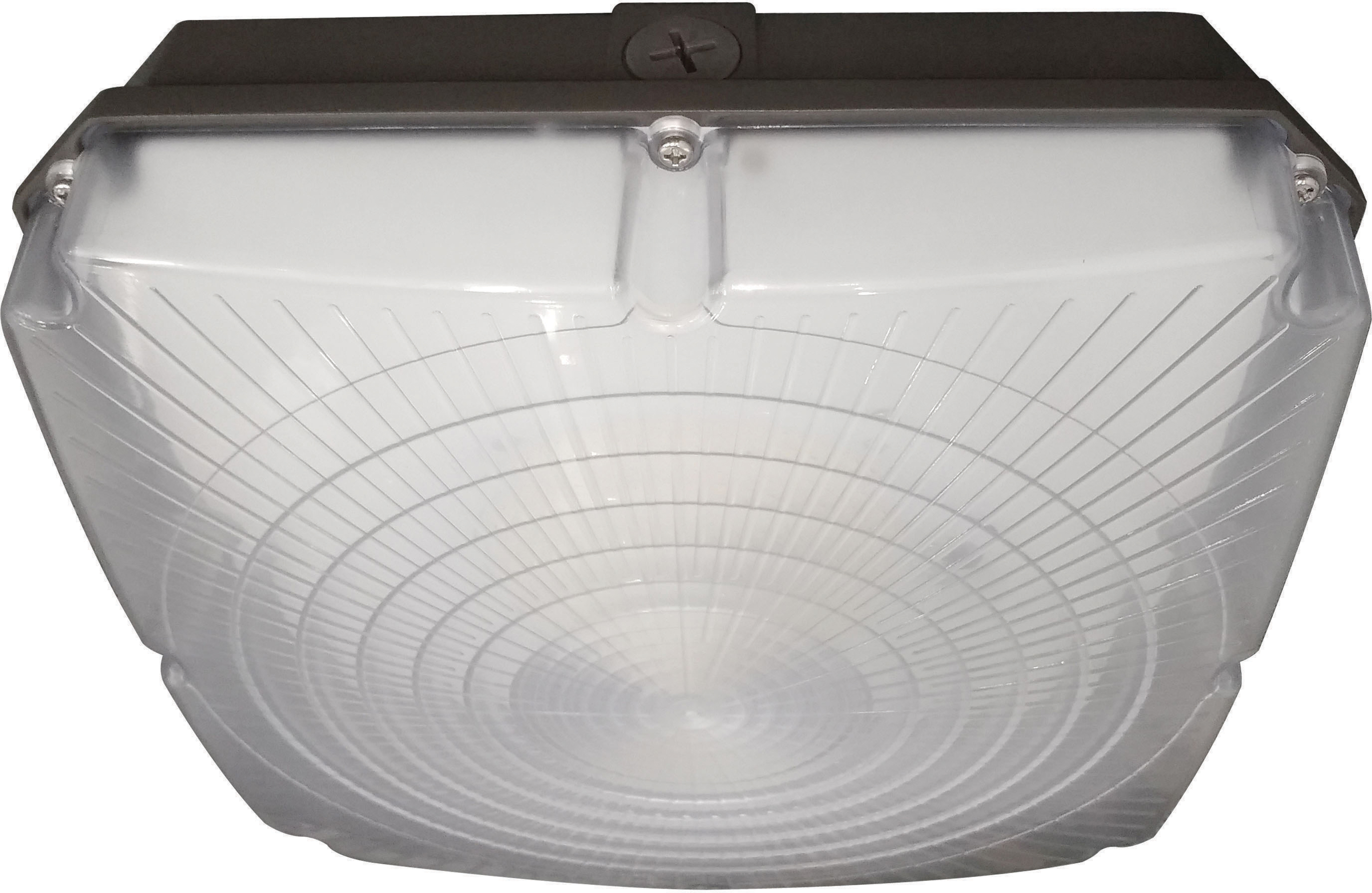

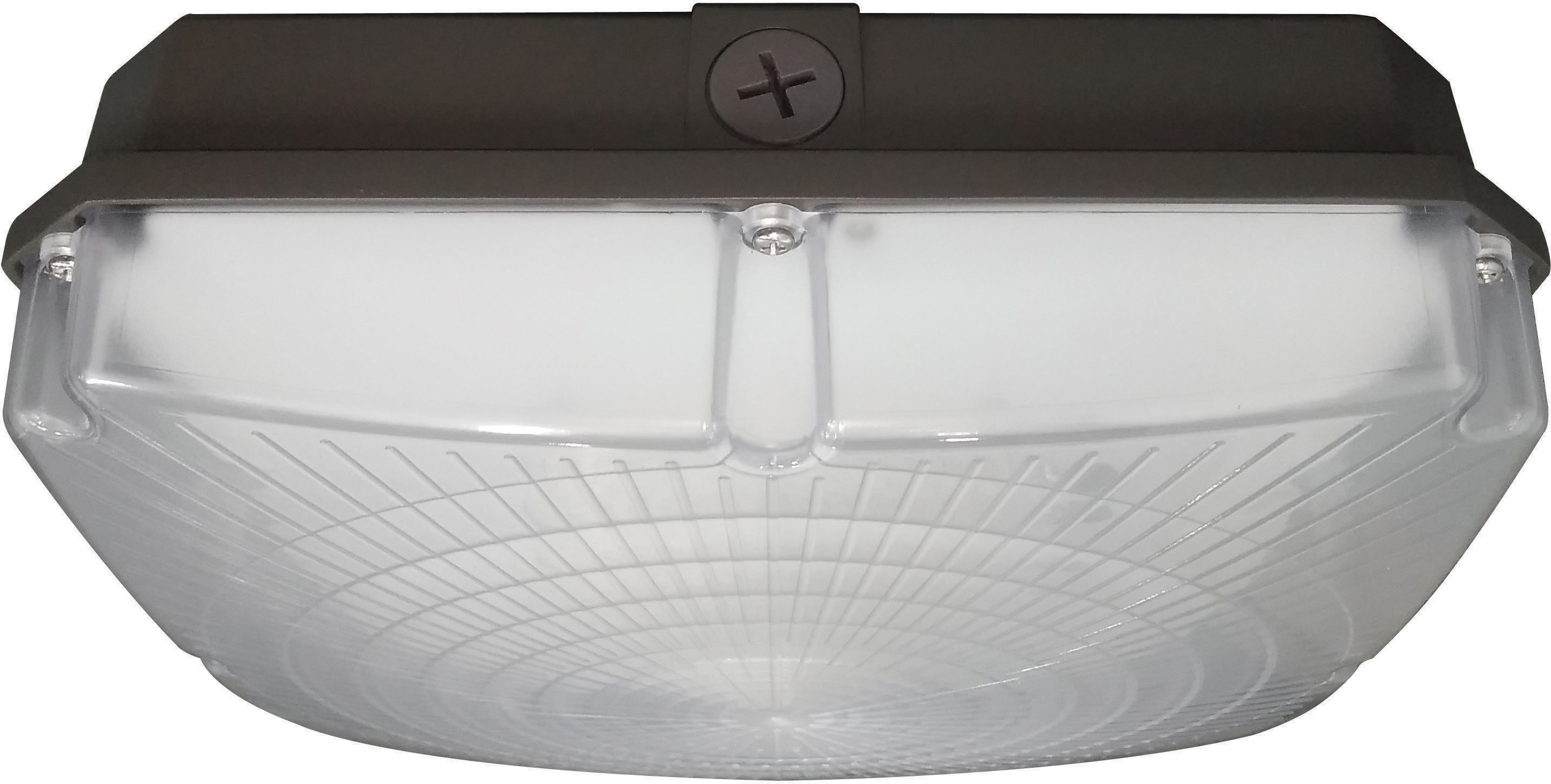

60W LED CANOPY FIXTURE 10"

  • LED Canopy Fixture
  • 60W
  • 4000K
  • 120-277V
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-146 Specifications65-146 Instructions EnSpFr65-146 Wiring Diagram
Tools
Lighting Layout Analysis For 65-146
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Canopy Fixture; 60W; 4000K; 120-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming Only
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusTransitioning
StyleUtility
Most Current Generation65-981
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion11%
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.600-0.217A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Photo CellMultiple Optional Sensors Available
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +40C (+104F)
Lumens7200L
Volts120V-277V
Watts60W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB3-U3-G2
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPL6X6DPSGSVK
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923531460
Case Cube2.0625
Case Height12.4
Case Length23.03
Case Quantity4
Case UPC10045923531467
Case Weight25.57
Case Width12.48
EA Cube0.4402
EA Height11.61
EA Length11.89
EA Quantity1
EA Weight5.51
EA Width5.51
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

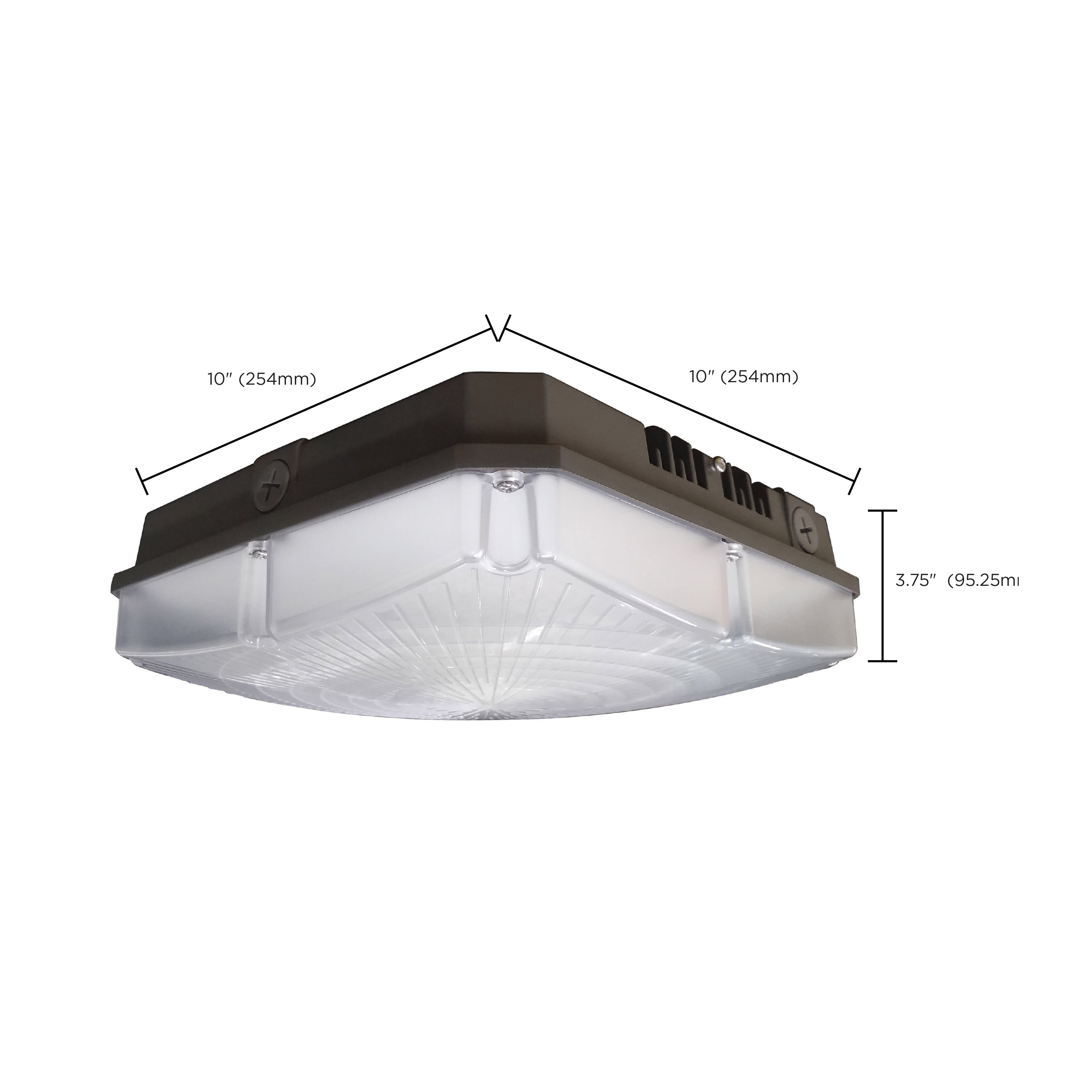

Web Height3.75
Web Length10.0
Web Width10.0
