| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming Only |

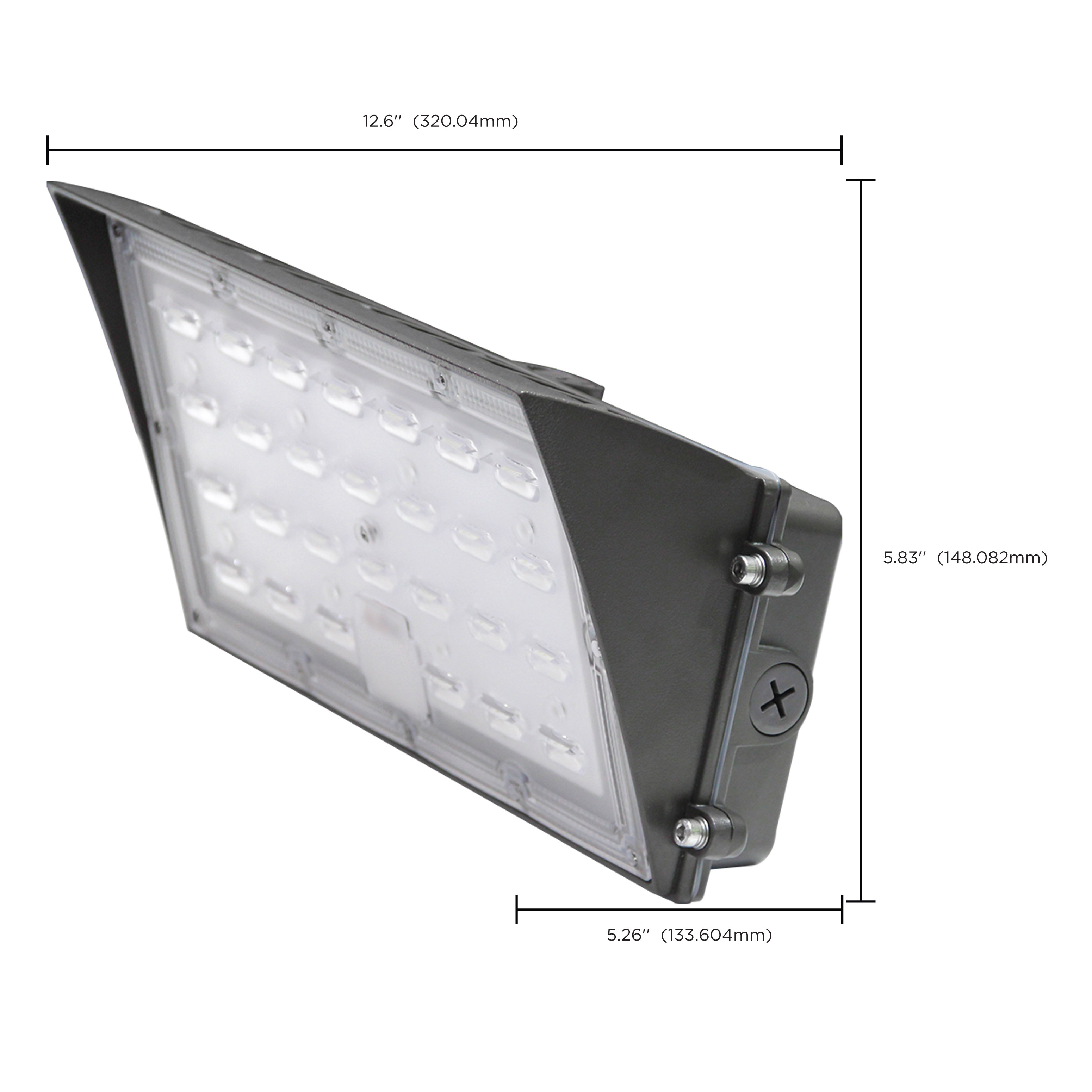

| Extends (in) | 5.26 |
| Material | Die-cast Aluminum |

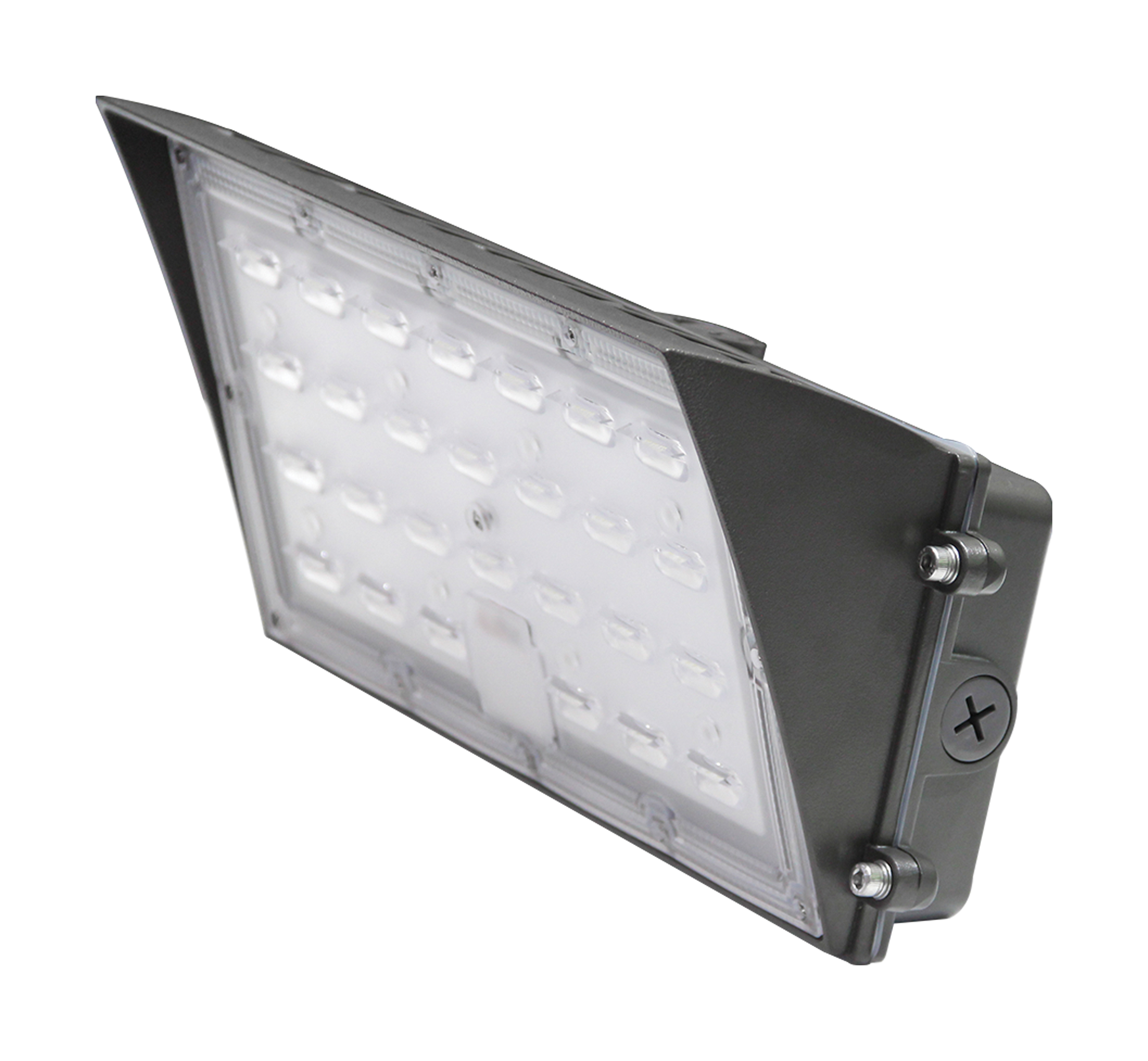

| Fixture Type | Wall Pack |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 10.29% |
| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | Bronze |
| Amps | 0.667-0.289A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Impact Resistant PC |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 500W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 55x105 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50-60Hz |
| Operating Temp | -40C (-40F) to +40C (+104F) |
| HID Equivalent | 250W |
| Lumens | 9600L-10000L |
| Volts | 120V-277V |
| Watts | 80W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| ADA Compliant | False |
|---|---|
| Bug Rating | B1-U4-G3 |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |

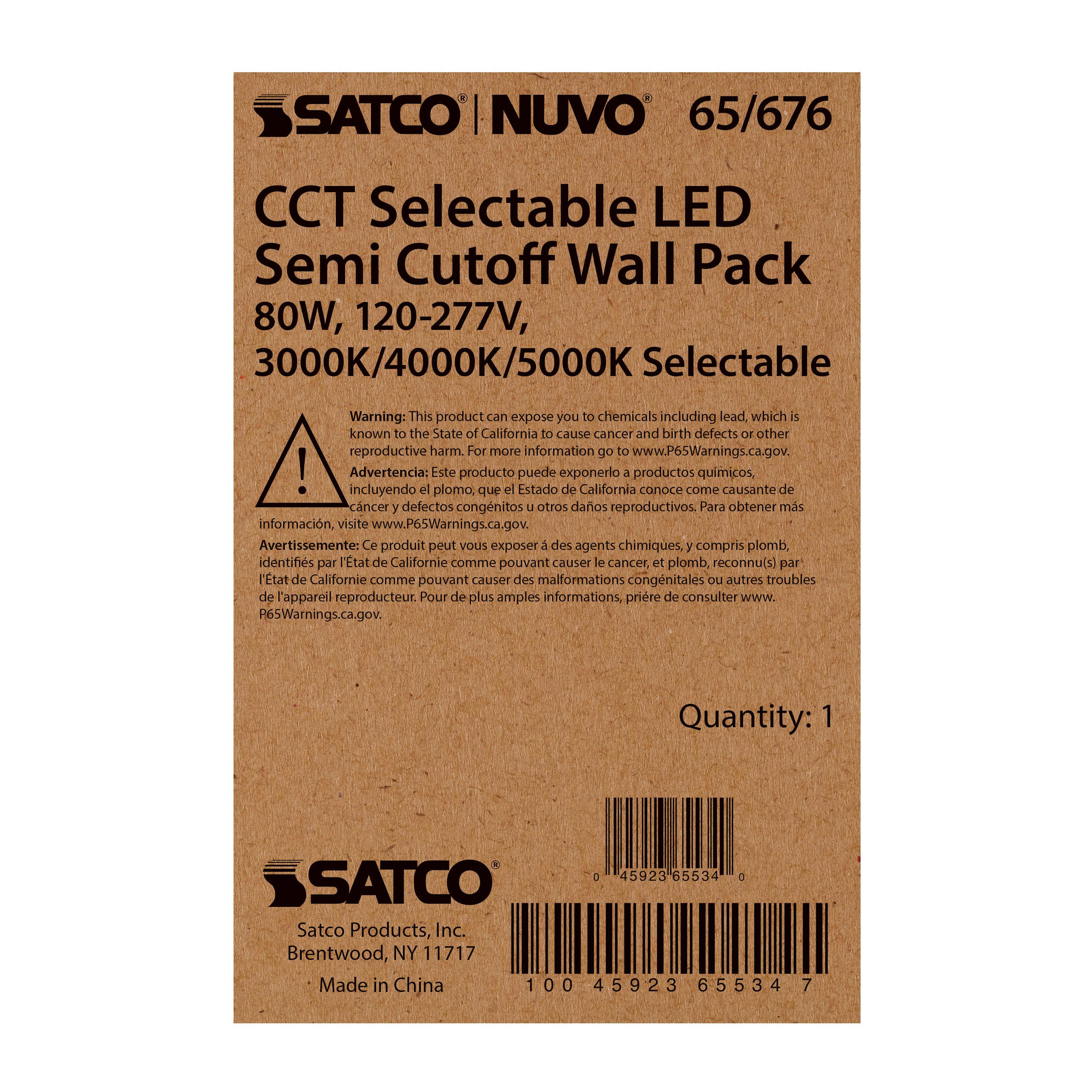

| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | PLE5Q8GLDXM0 |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923655340 |
|---|---|
| Case Cube | 2.2398 |
| Case Height | 19.88 |
| Case Length | 14.76 |
| Case Quantity | 4 |
| Case UPC | 10045923655347 |
| Case Weight | 22.71 |
| Case Width | 13.19 |
| EA Cube | 0.4565 |
| EA Height | 9.25 |
| EA Length | 13.98 |
| EA Quantity | 1 |
| EA Weight | 5.3 |
| EA Width | 6.1 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 5.83 |
| Web Width | 12.6 |
