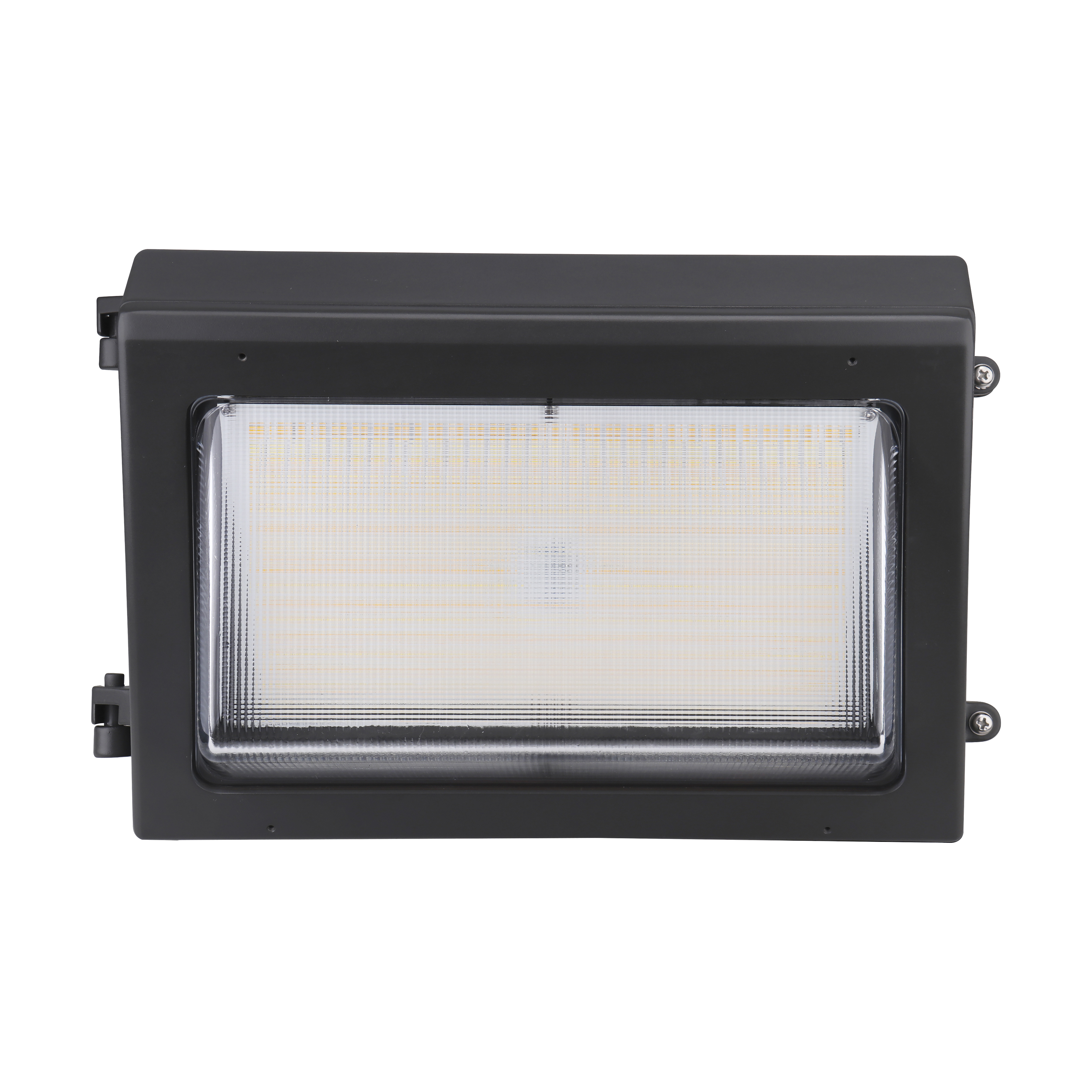

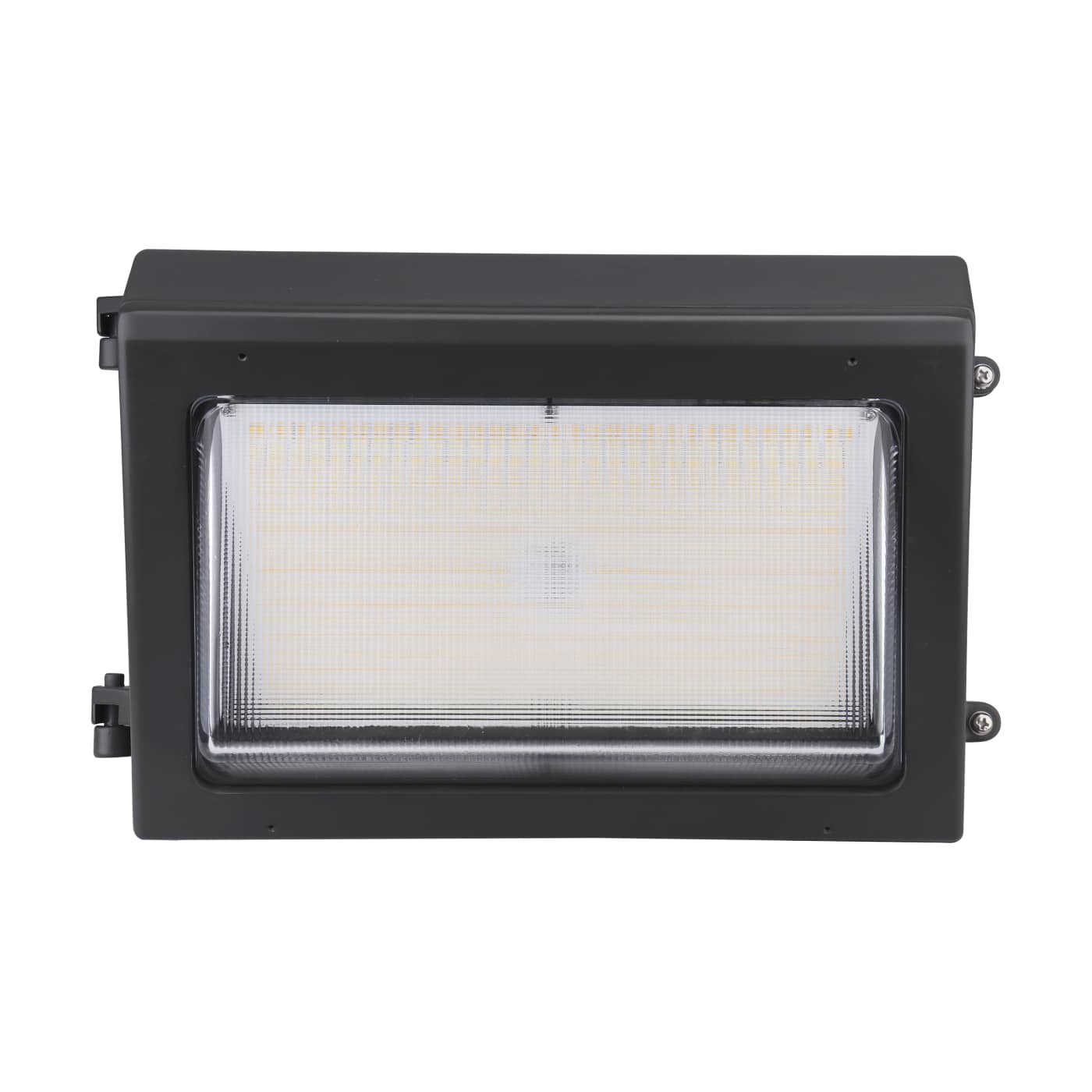

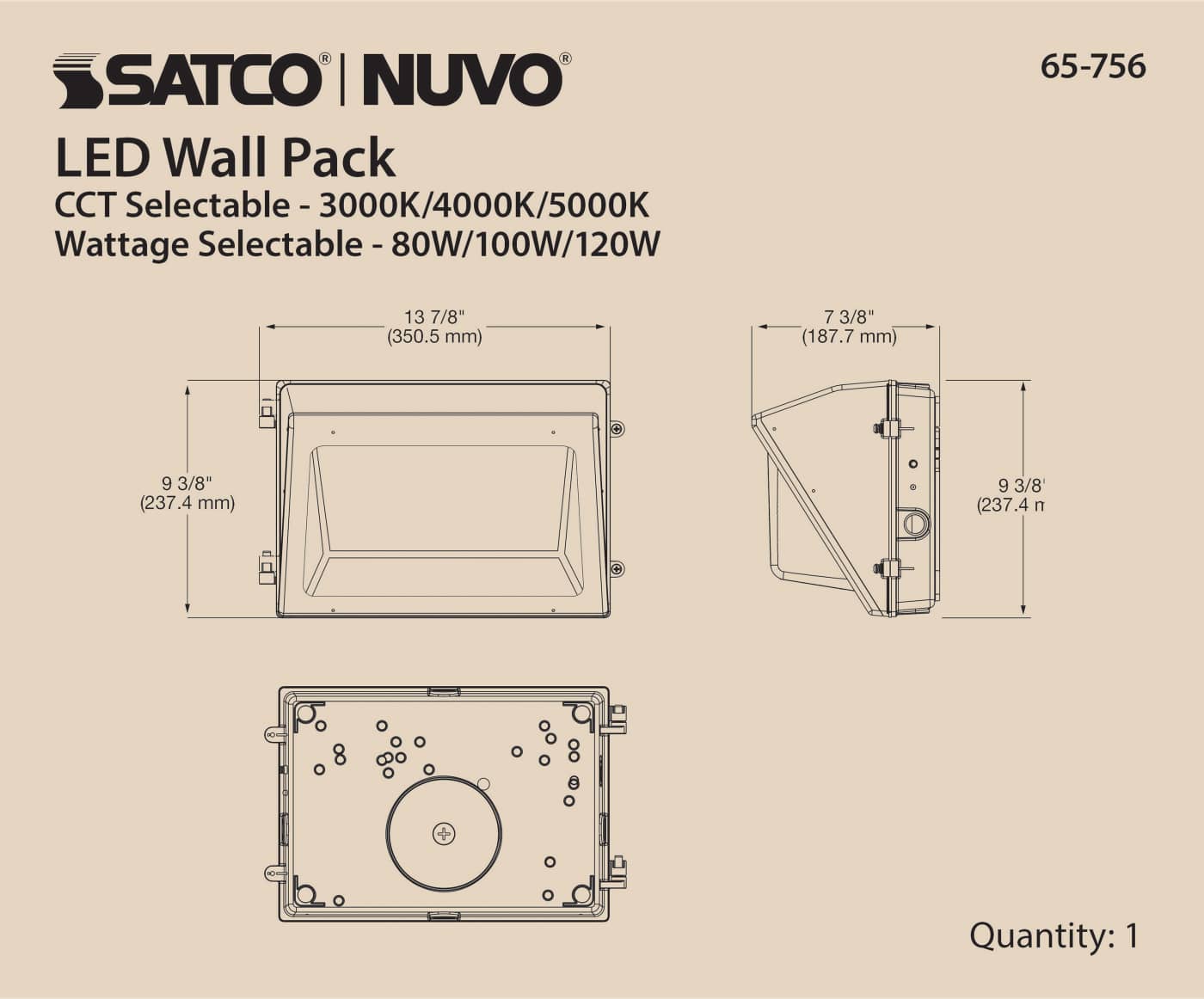

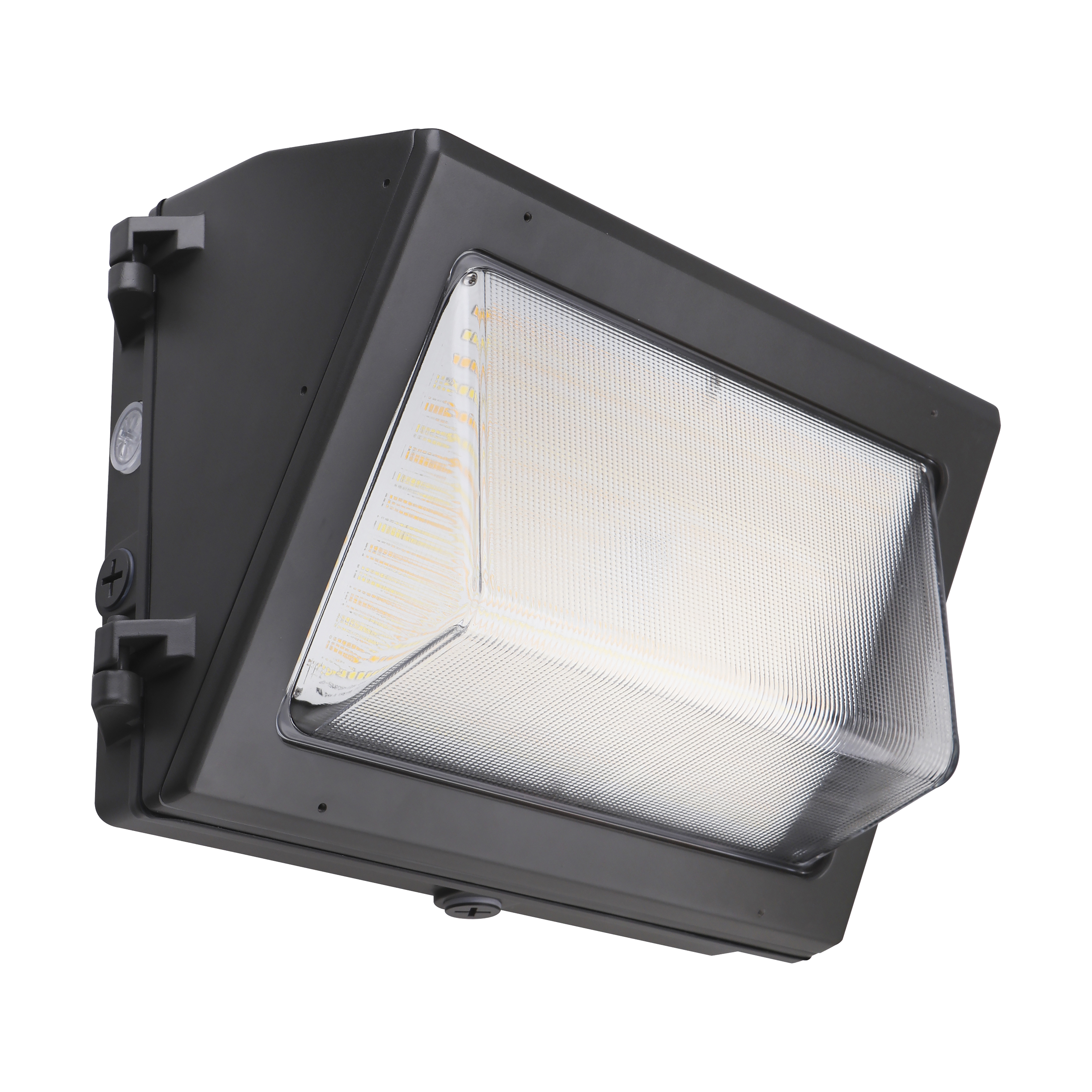

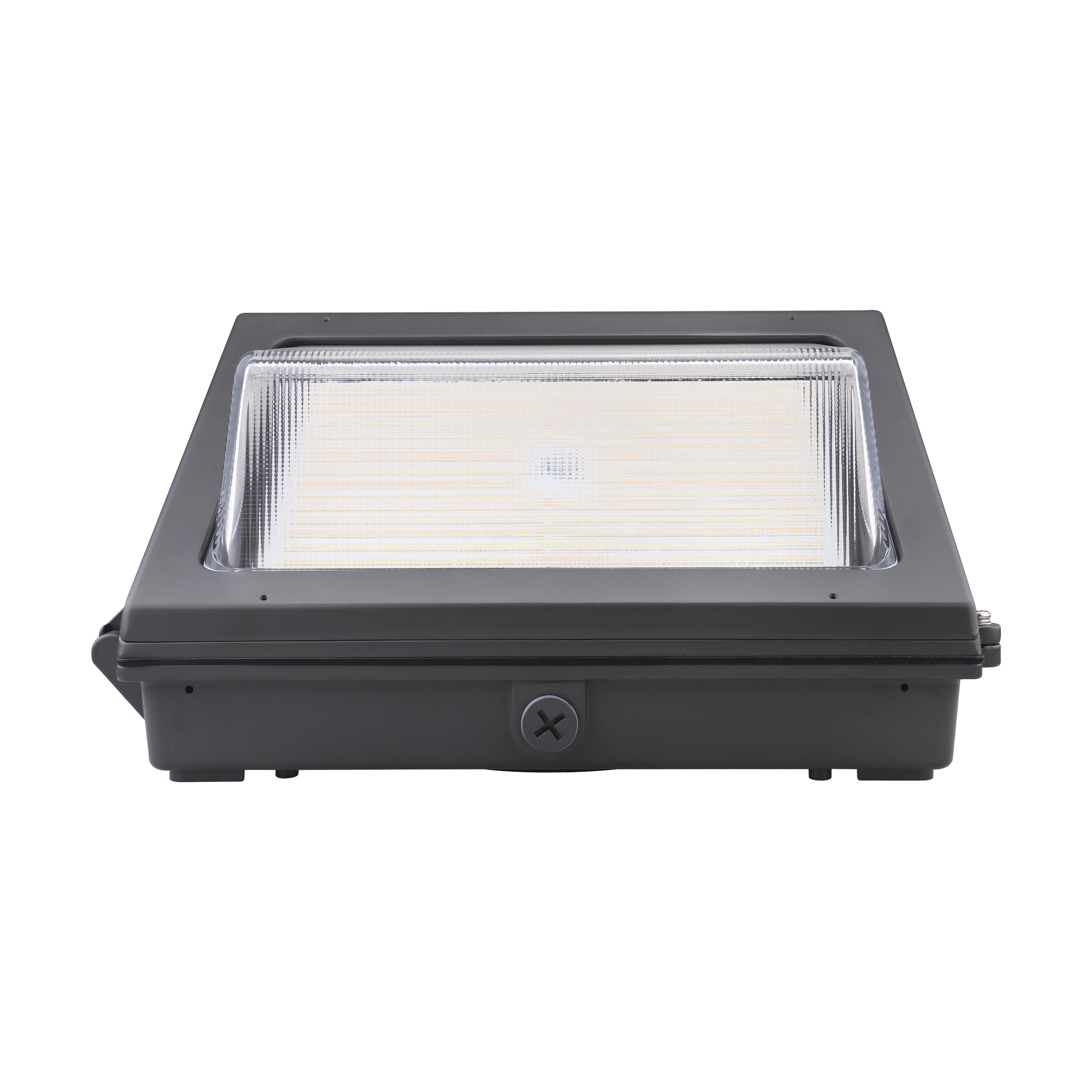

65-756 LED WALL PACK CCT & WATT ADJ

Description

CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 80, 100, or 120 Watt; 120-277 Volt; Bronze Finish

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Dimmable Text	0-10V Dimming Only

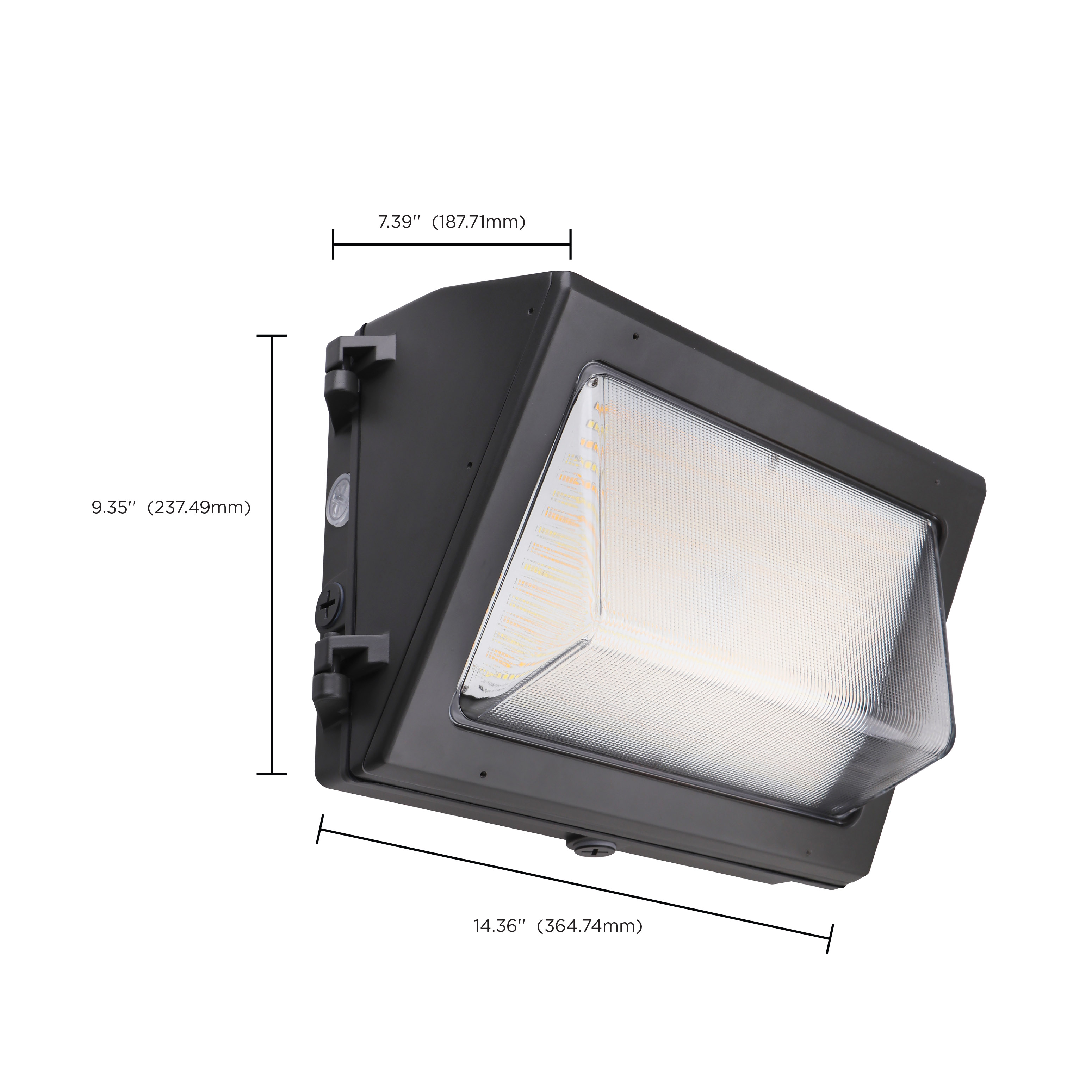

Extends (in)	7.39
Material	Die-cast Aluminum
Fixture Type	Wall Pack
Status	Active
Style	Traditional
Most Current Generation	65-1501
Surge Protection	Built-in surge protection - 4KV
Total Harmonic Distortion	15%
CCT Selectable	Yes

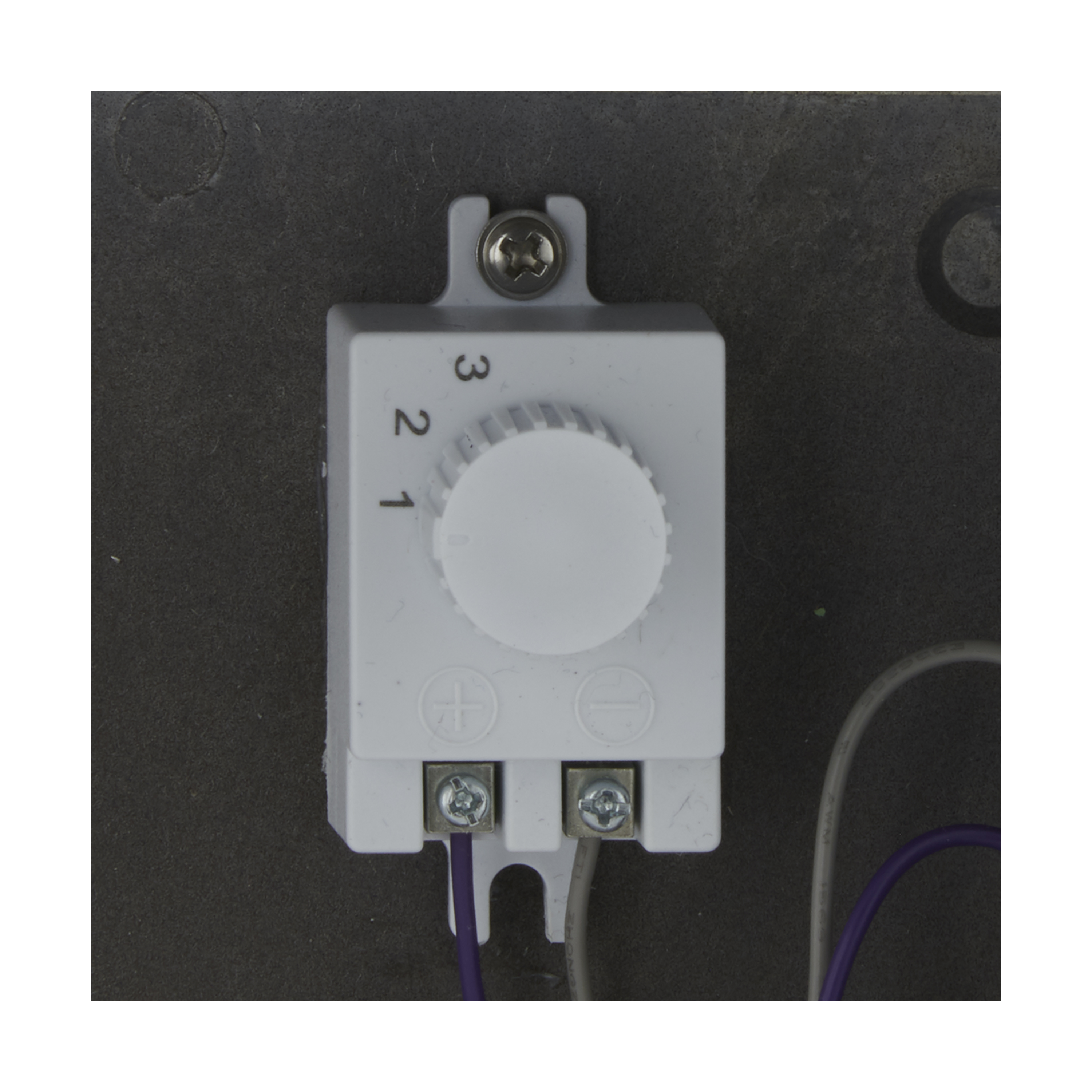

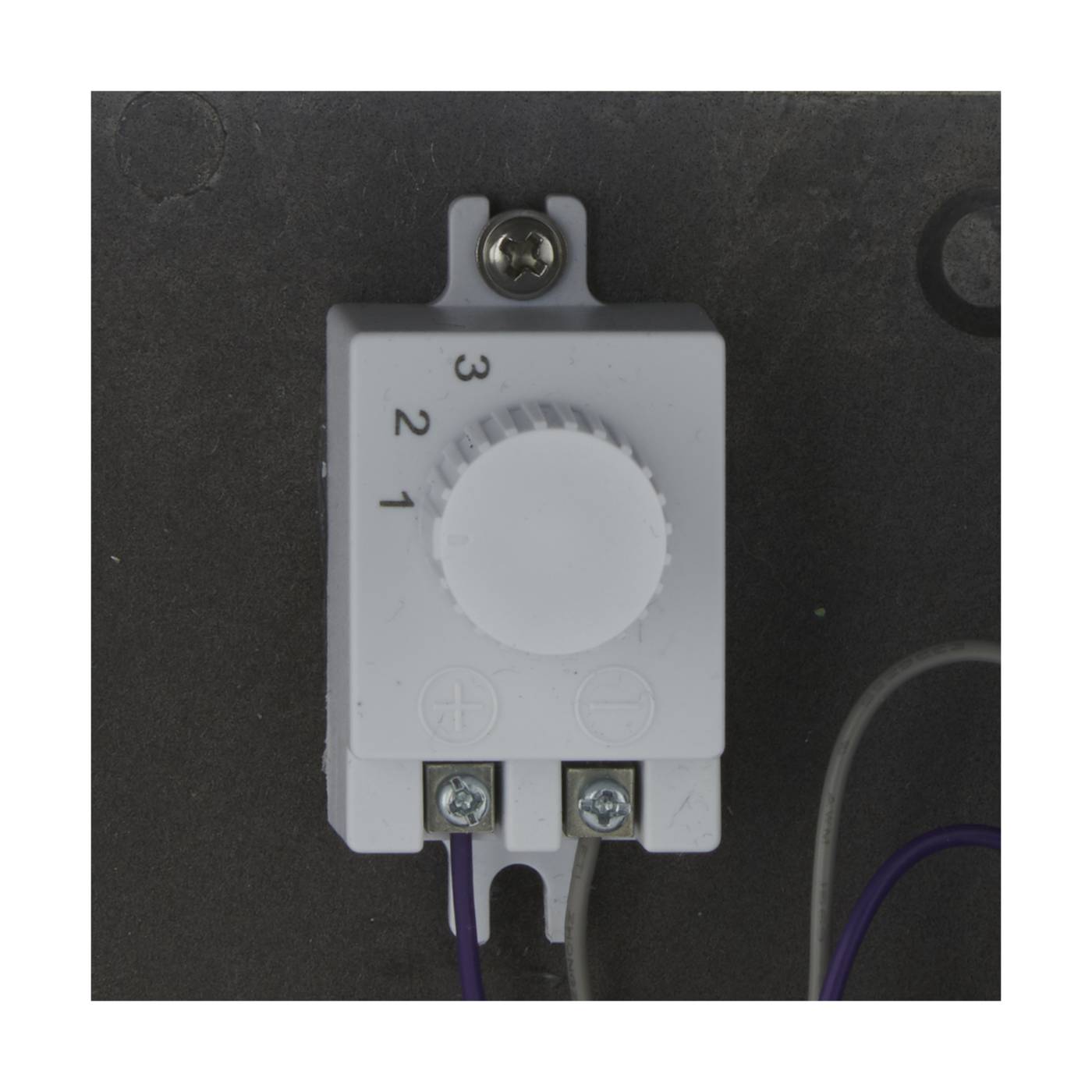

Wattage Selectable	Yes
Finish Family	Bronze
Amps	0.667-0.289/0.833-0.361/1.000-0.433A
Has Camera	No
IOT Enabled	No
Lens Material	Glass
Photo Cell	Yes - Bypassable
Power Factor	>0.9
SDS Class	LED_Fixture
Indoor Outdoor	Indoor, Outdoor
Product Technology	LED
Incandescent Equivalent	600W-1000W

Electrical

CCT (Kelvin Temp)	3000K/4000K/5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	110
Color Temp	Warm to Cool White
CRI	80+
Operating Frequency	50/60Hz
Operating Temp	-40C (-40F) to +50C (+122F)
HID Equivalent	200W-400W
Lumens	11200L-17280L
Volts	120V-277V
Watts	80W/100W/120W

Physical

Lamp Base	Integrated
Finish	BRONZE
ANSI Base	Integrated
Lamp Type	Integrated LED

Additional Info

Warranty	5-Years

Documents

Compliance

ADA Compliant	No
Bug Rating	B2-U4-G5
CA Prop 65	Lead
DLC ID	PLQBZSSZVMBW
FCC Compliant	Yes
IP Rating	IP65
Location Rating	Wet
ROHS Compliant	Yes
Safety Listing	cULus - Certified
California Ban	Lawful for sale
DLC Approved	Yes
Energy Star Certified	No
Title 20	Exempt
T24 Compliant	No

Packaging

UPC	045923670763
Case Cube	1.0405
Case Height	9.84
Case Length	15.63
Case Quantity	1
Case UPC	10045923670760
Case Weight	10.14
Case Width	11.69
EA Cube	1.0405
EA Height	9.84
EA Length	15.63
EA Quantity	1
EA Weight	10.14
EA Width	11.69
Inner Cube	0.0
Inner Height	0.0
Inner Length	0.0
Inner Quantity	0
Inner Weight	0.0
Inner Width	0.0
Pack Type	Box
Web Height	9.35
Web Width	14.36
