JH5056

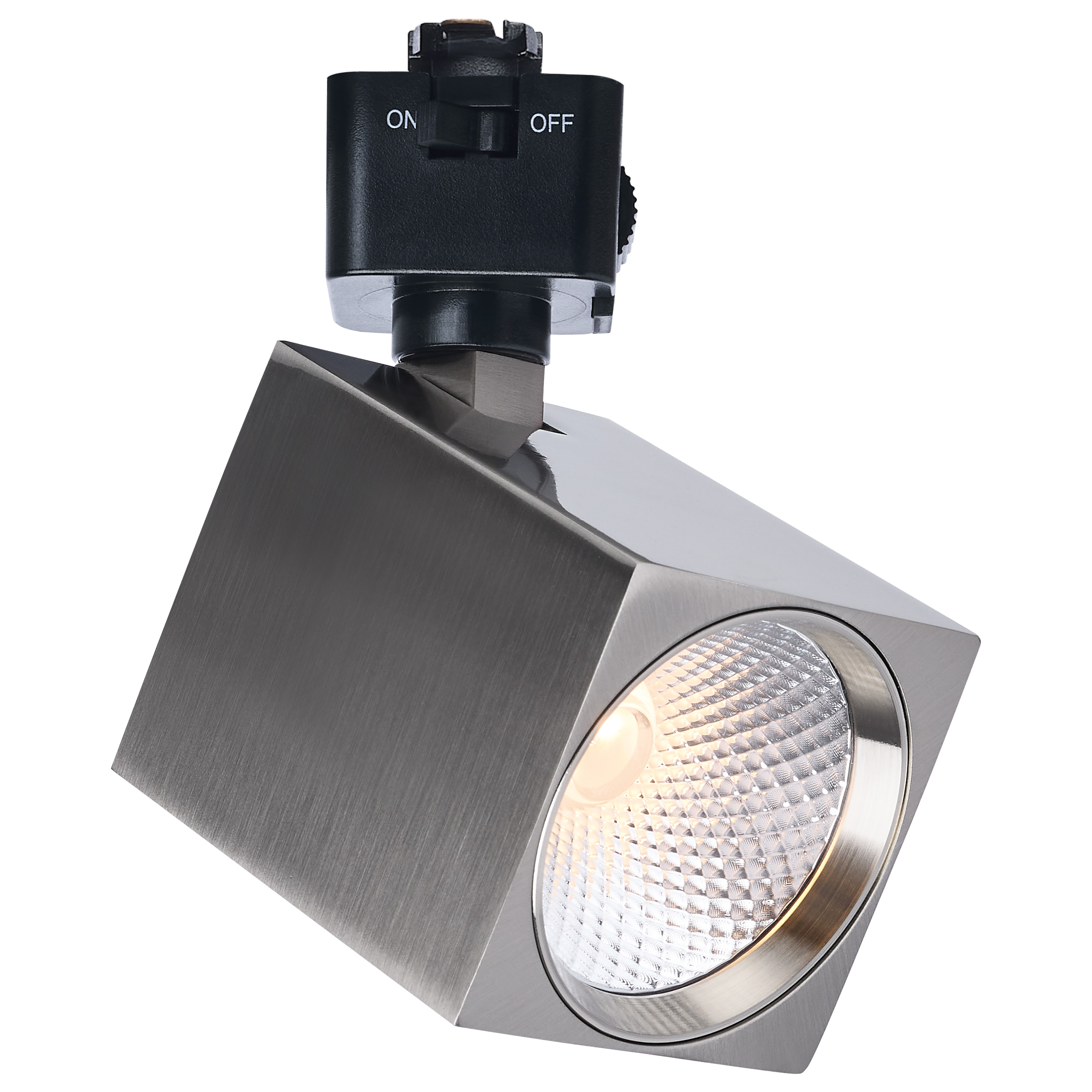

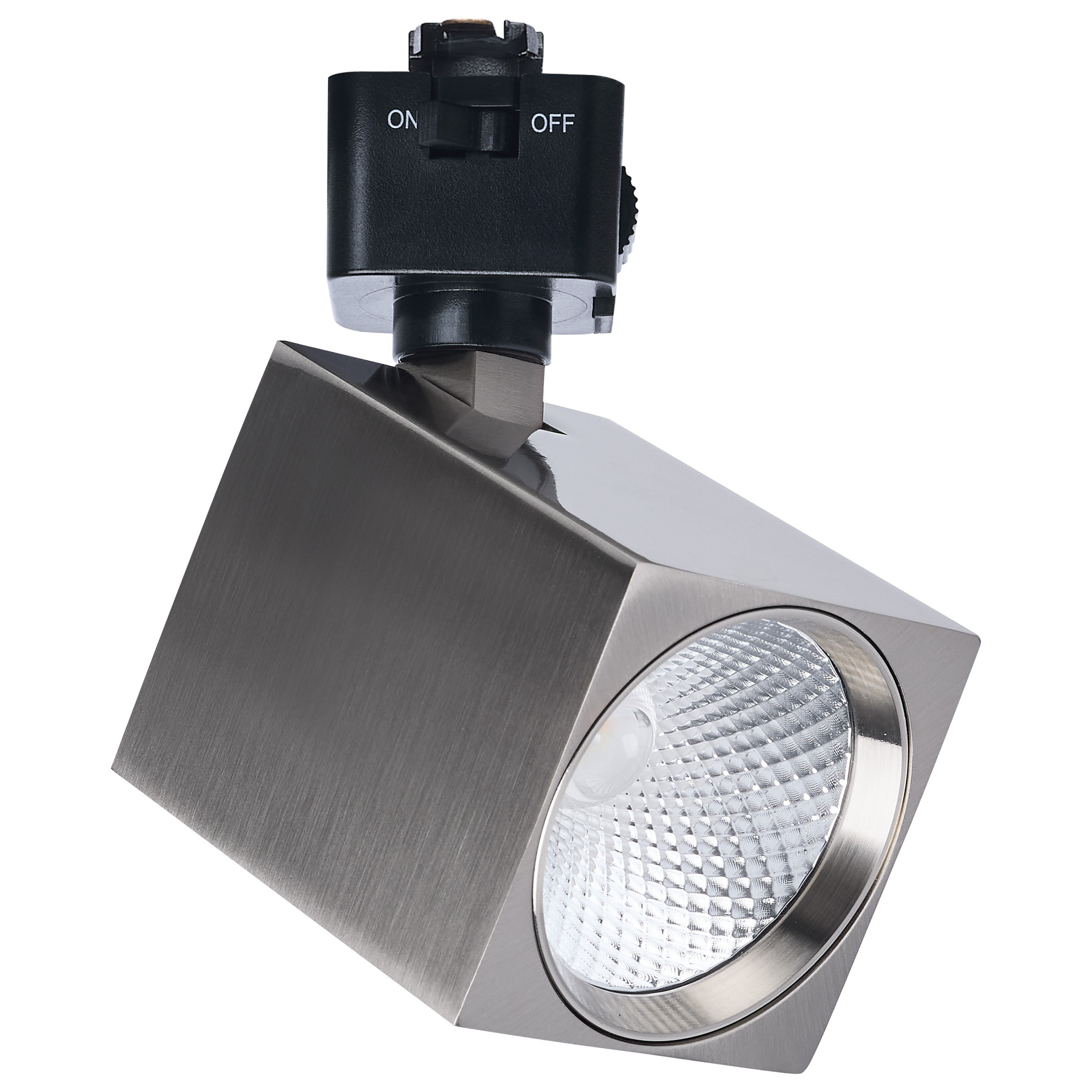

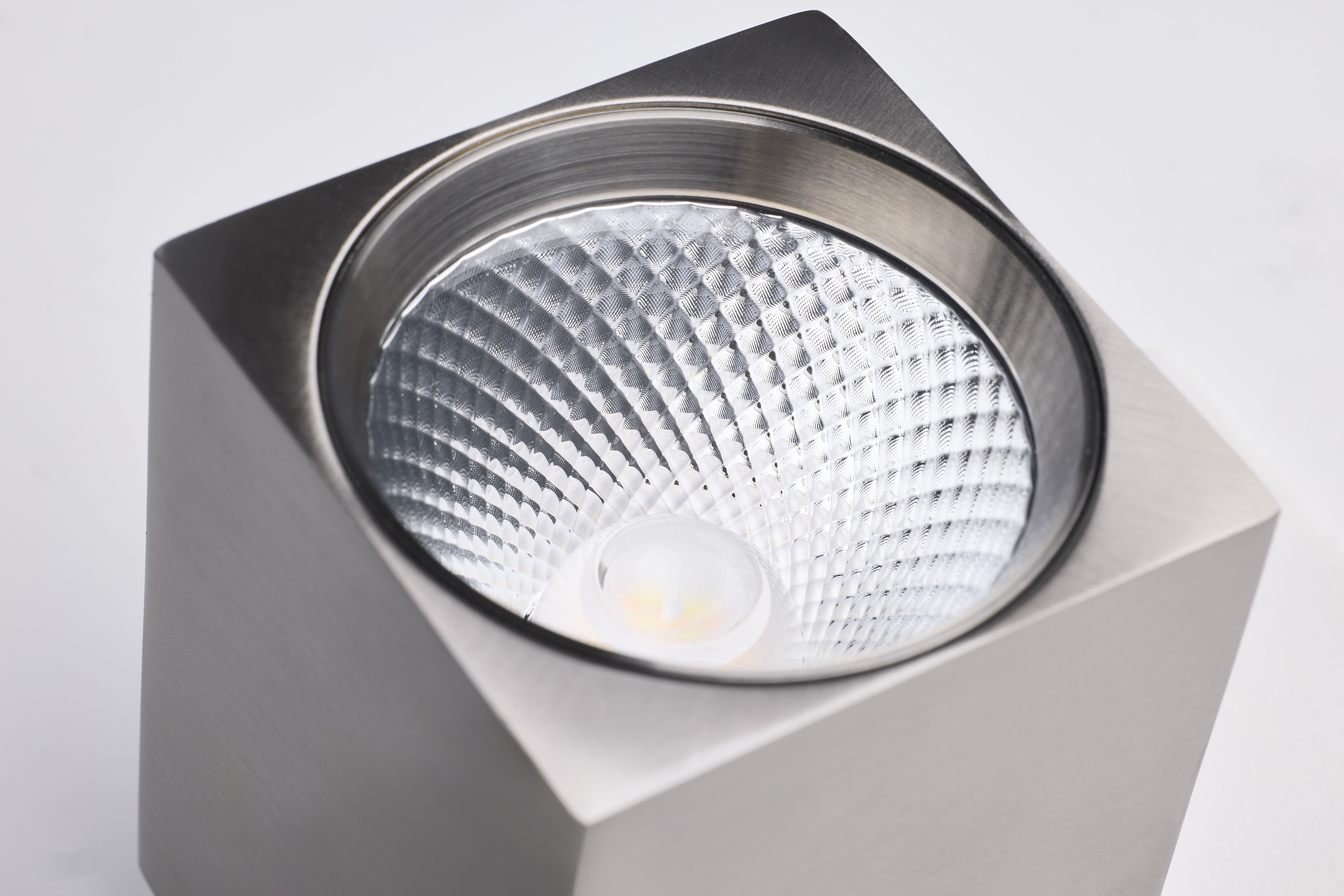

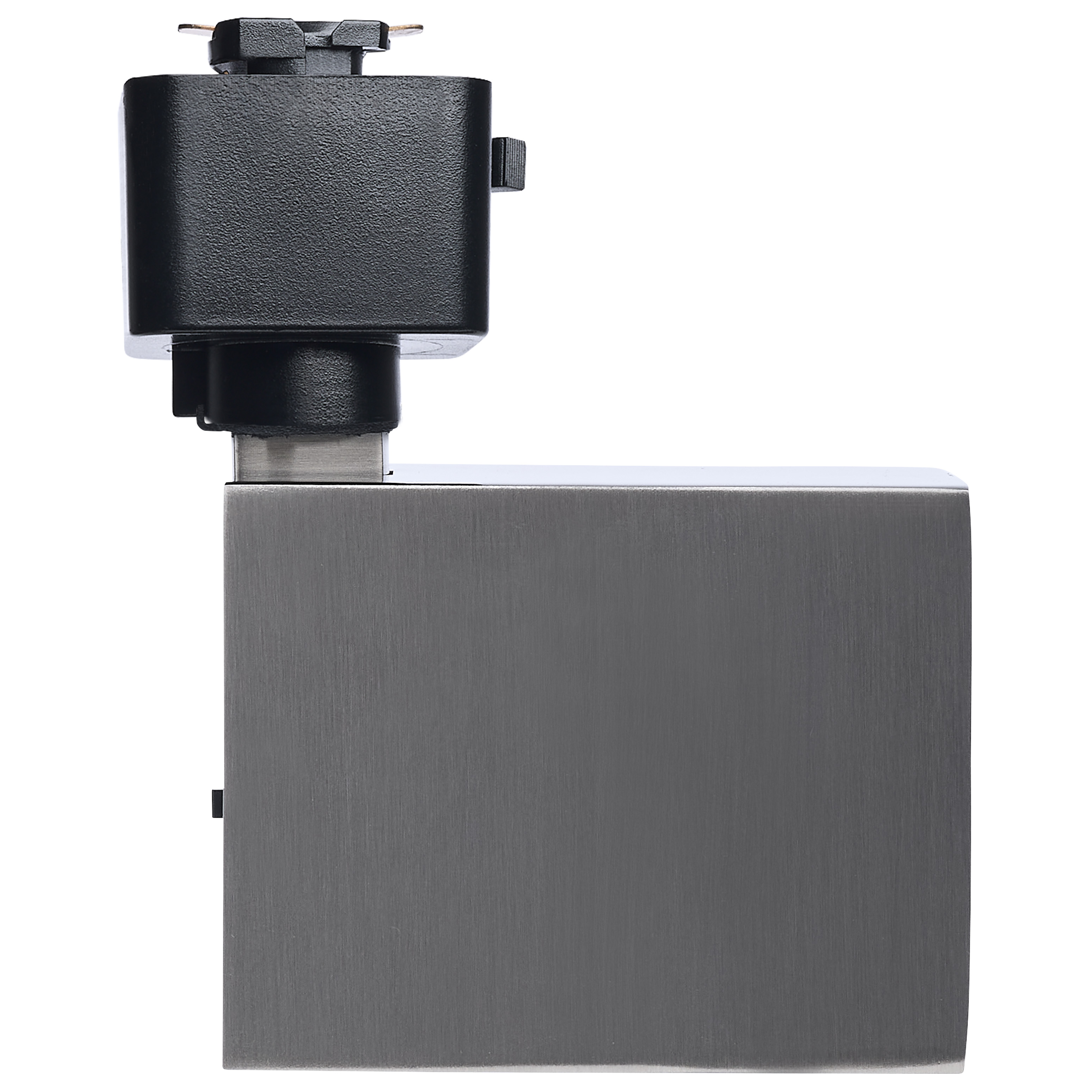

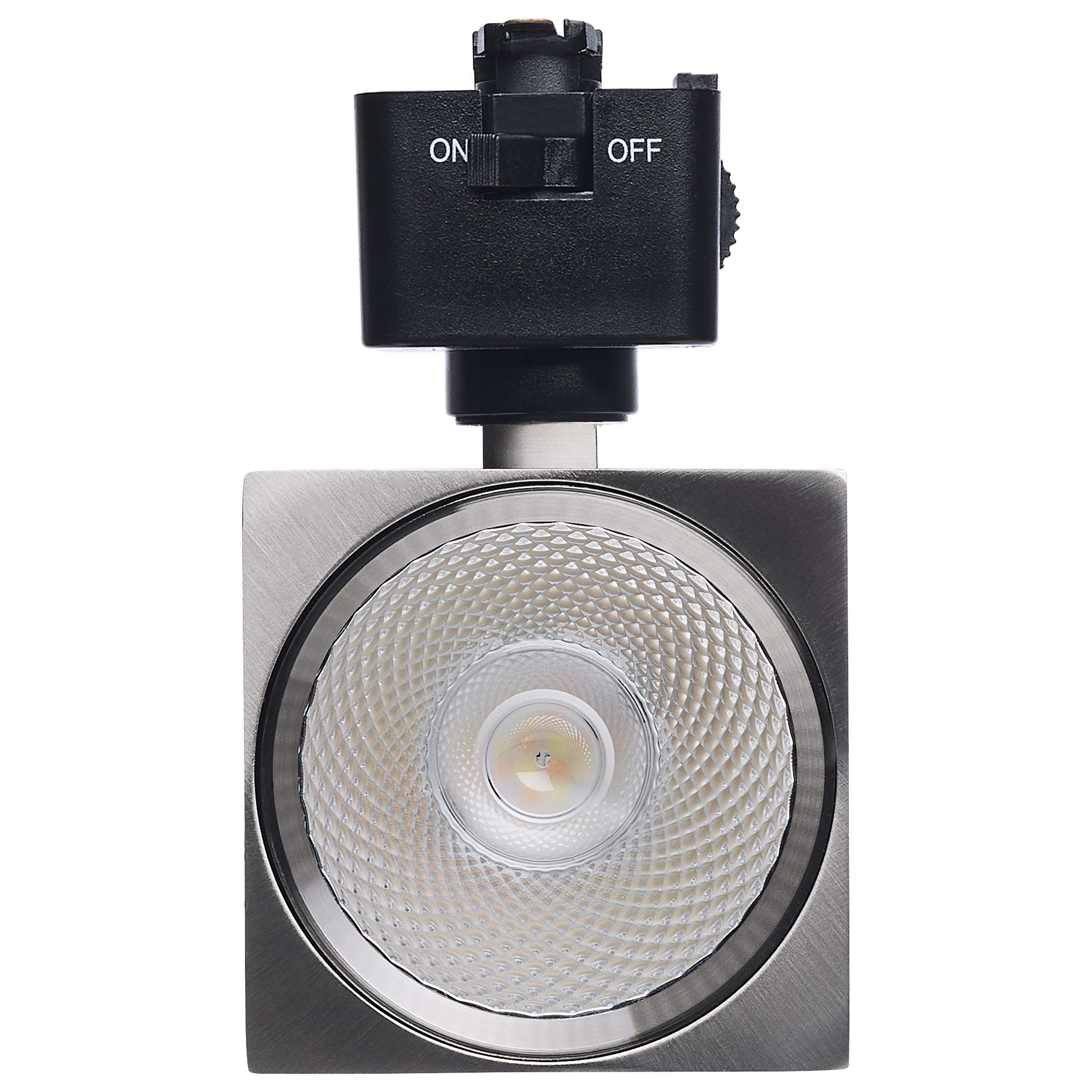

8W SQUARE D2W 6CCT BR NICK 48'

  • 8 Watt LED Track Head

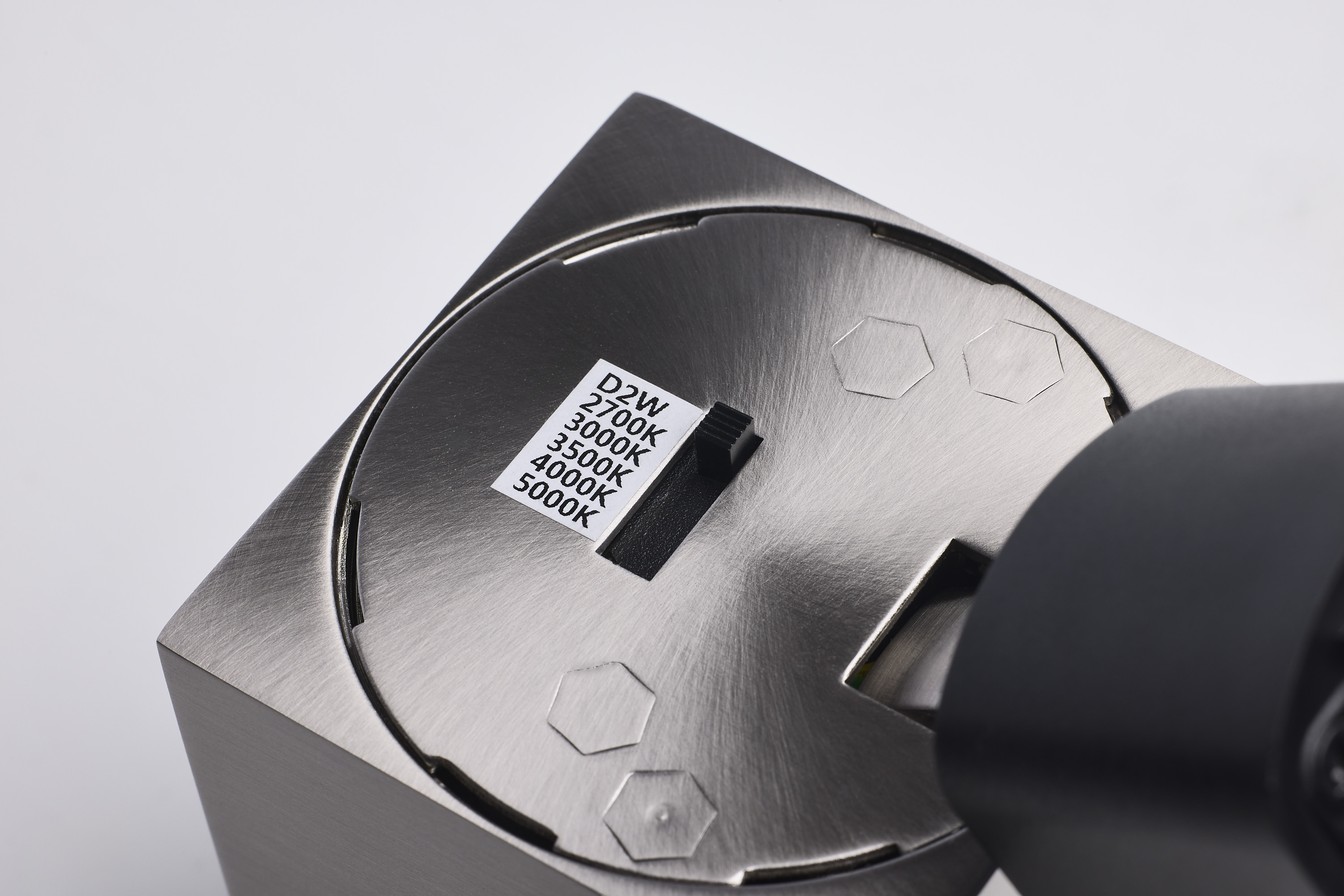

  • 2700K/3000K/3500K/4000K/5000K CCT Selectable
  • Dim to Warm
  • J Style
  • 48 Degree Beam Angle
  • 120 Volt
  • Brushed Nickel
  • Square
cc_selectable^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
JH5056 SpecificationsJH5056 Photometrics 2700K.iesJH5056 Photometrics 3000K.ies
Tools
Lighting Layout Analysis For JH5056
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
8 Watt LED Track Head; 2700K/3000K/3500K/4000K/5000K CCT Selectable; Dim to Warm; J Style; 48 Degree Beam Angle; 120 Volt; Brushed Nickel; Square
Products Specs
General
CompanySATCO
Mounting Height4.25
Mounting Length2.25
Mounting Width2.25
Bulb IncludedIntegrated
Center Beam Candle Power750
Dimmable TextForward or Reverse Phase; 120V only
Extends (in)5.0
MaterialAluminum
Fixture TypeTrack Head
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<100%
Track Head StyleJ-Style
Up Down InstallationUniversal
CCT SelectableYes
Wattage SelectableNo
Finish FamilyNickel
Amps0.070A
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes
Power Factor>0.92
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv11W
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K/3000K-2000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)48
Color TempWarm Dimming, Warm White to Natural Light
CRI90+
Dimming TypePhase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens500L-600L
Volts120v
Watts8W
Physical
Lamp BaseIntegrated
FinishBrushed Nickel
Housing ColorBrushed Nickel
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty3-Years
Documents
Features
Flicker FreeYes
Compliance
ADA CompliantNo
CA Prop 65Lead
Dark Sky RatedNo
FCC CompliantYes
Location RatingDry
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923412745
Case Cube0.7238
Case Height11.42
Case Length16.85
Case Quantity24
Case UPC10045923412742
Case Weight20.88
Case Width6.5
EA Cube0.0243
EA Height5.31
EA Length2.95
EA Quantity1
EA Weight0.87
EA Width2.68
Inner Cube0.0
Pack TypeKraft Box
Web Height2.27
Web Length2.87
Web Width2.28
