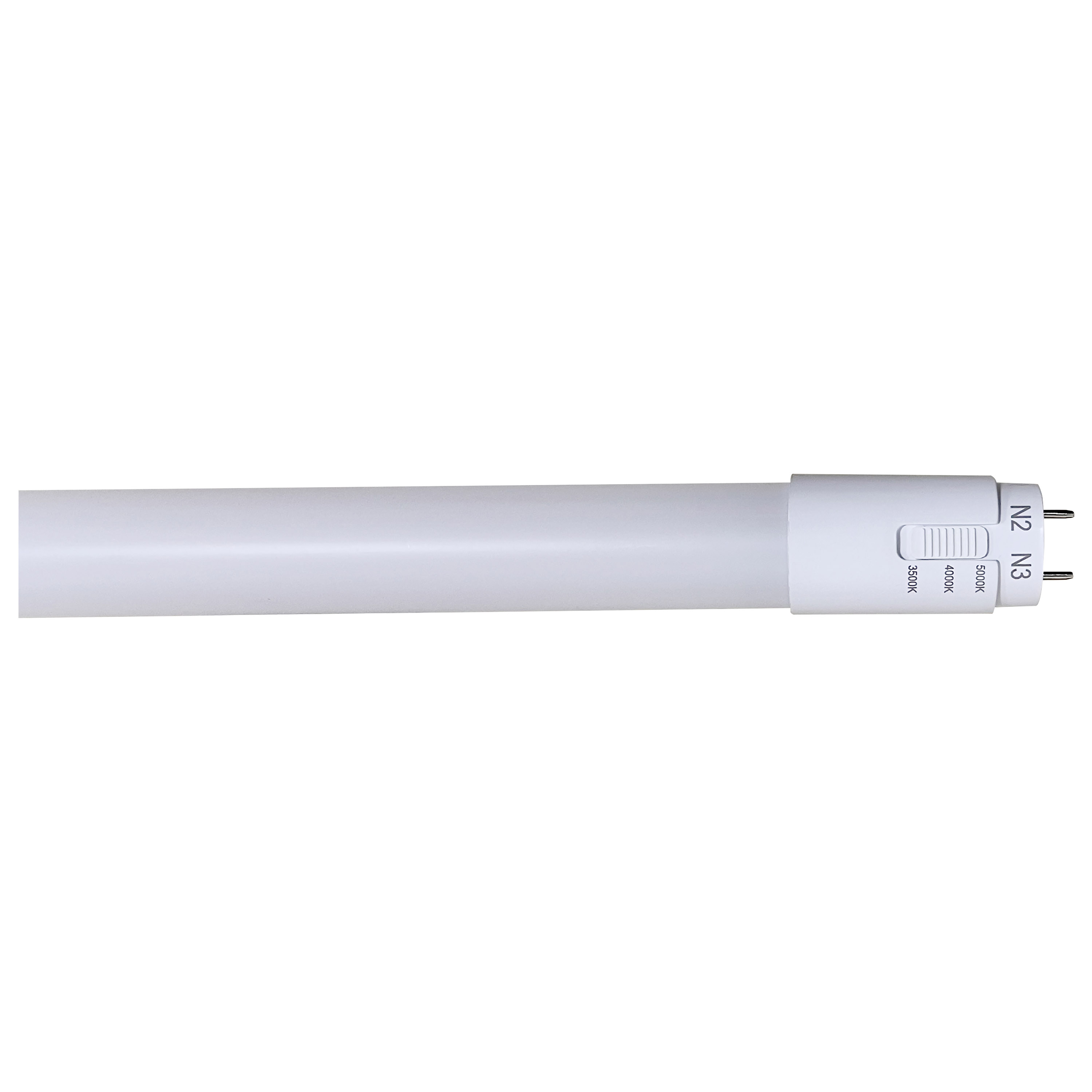

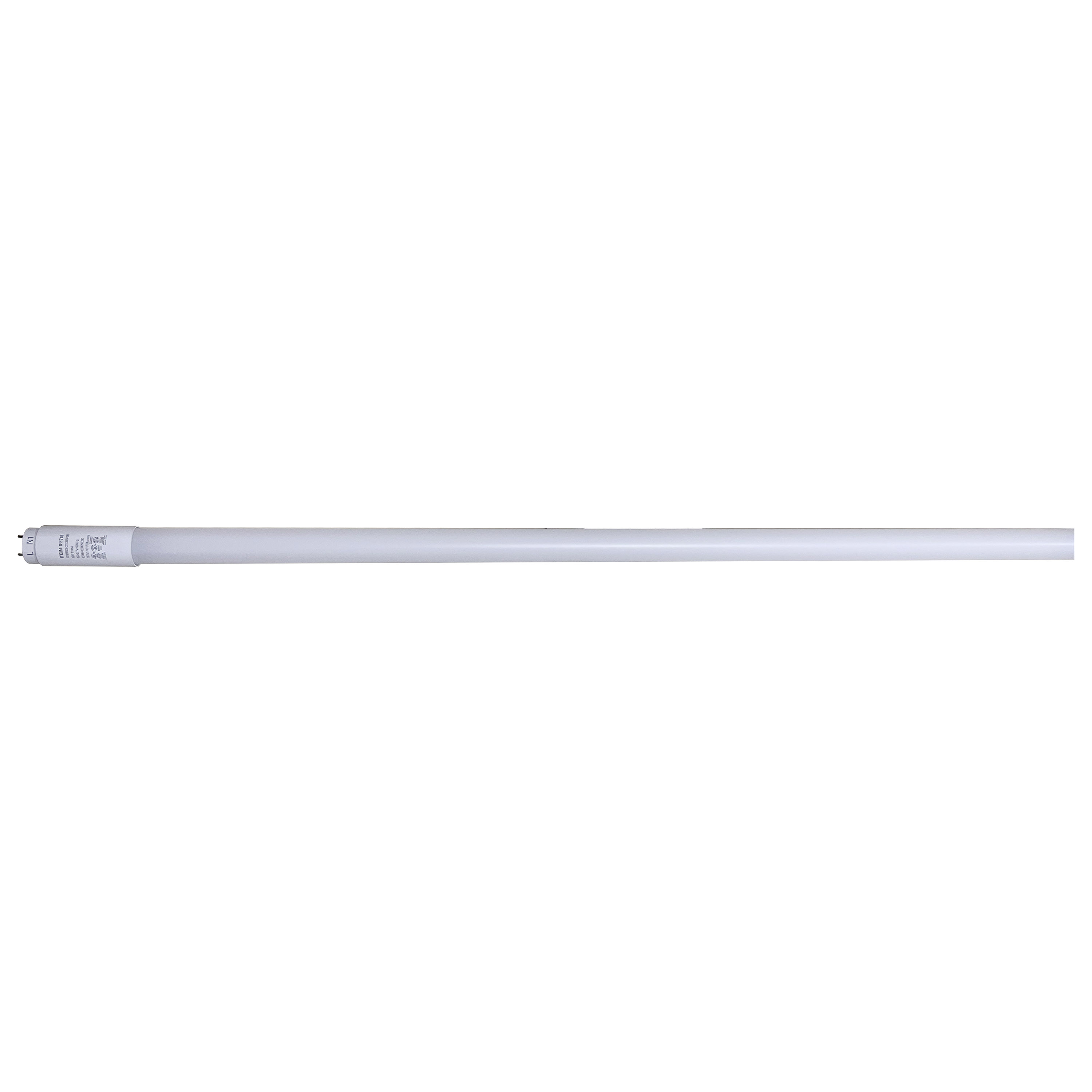

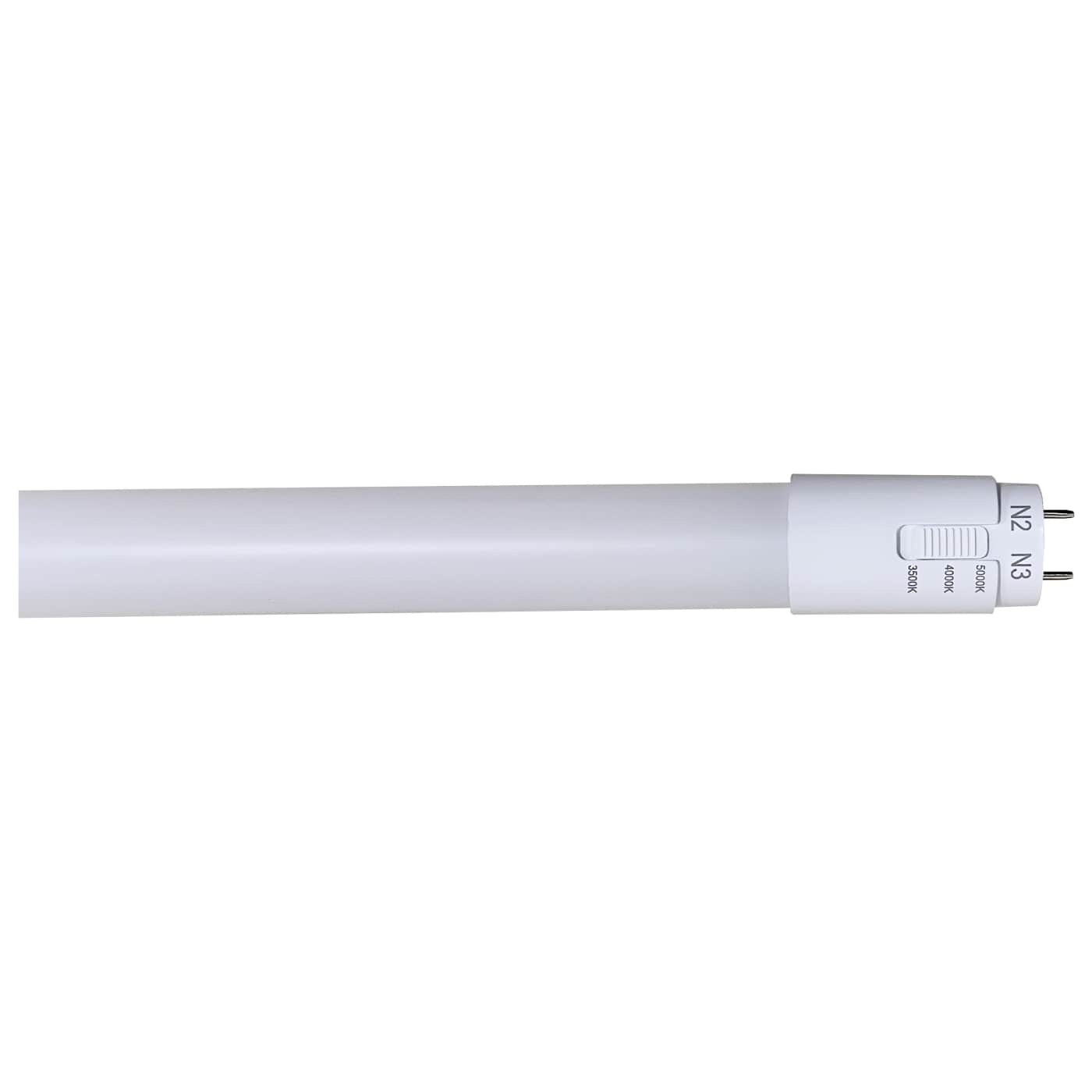

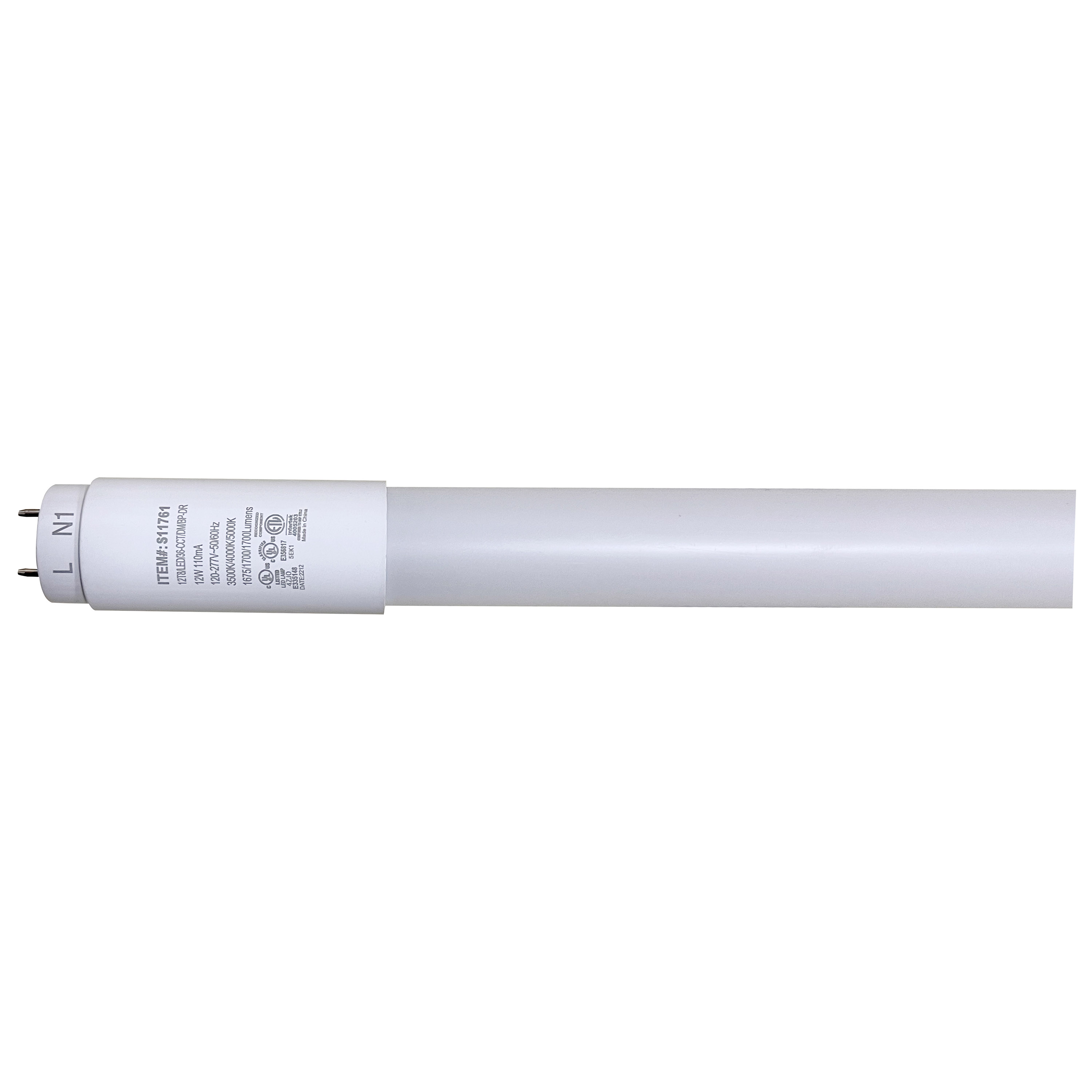

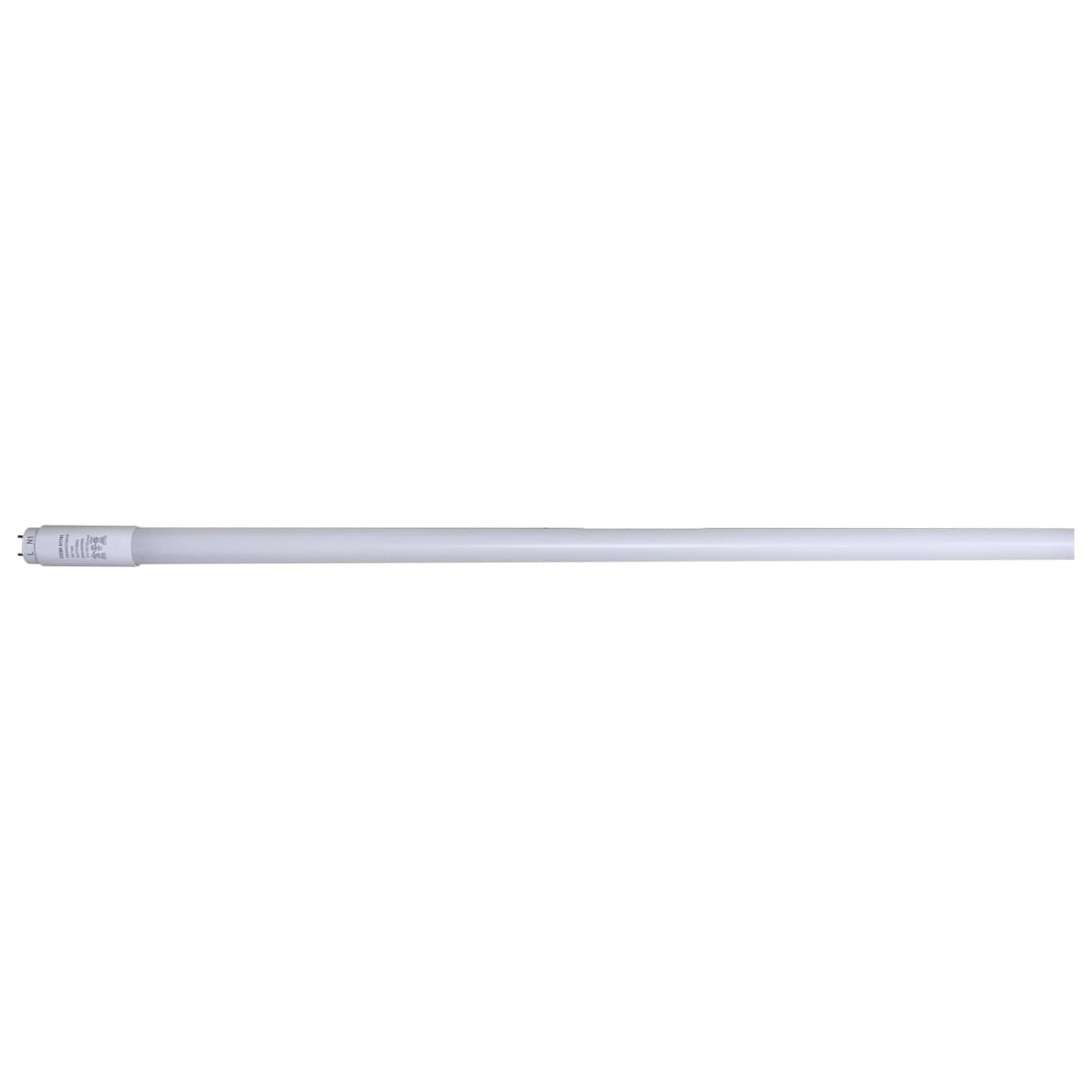

S11761 12T8/LED/36-CCT/DM/BP-DR

S11761

12T8/LED/36-CCT/DM/BP-DR

12 Watt T8 LED; CCT Selectable; Medium bi-pin base; 50000 Hours; Type A/B; Ballast Bypass or Direct Replacement; Single or Double Ended Wiring; Glass with PET coating


SATCO|NUVO's premium LED T8 dual mode lamps offer the most versatility of any linear replacement lamp on the market. These lamps are compatible with ballasts and in ballast bypass systems with single or double-ended wiring to maximize ease of installation. Choose from two, three, or four foot lengths and select 3500K/4000K/5000K during installation for immediate energy savings anywhere fluorescent lamps were used.
  • CCT Selectable - 3500K/4000K/5000K
  • Direct replacement for fluorescent T8 lamps
  • Ballast compatible or ballast bypass installation
  • NSF Certified - P.E.T. coated, shatter resistant glass tube
  • Compatible with select emergency backup and dimming ballasts
  • Dimmable
  • Rated for 50,000 hours
Lights

S11761

12T8/LED/36-CCT/DM/BP-DR

12 Watt T8 LED; CCT Selectable; Medium bi-pin base; 50000 Hours; Type A/B; Ballast Bypass or Direct Replacement; Single or Double Ended Wiring; Glass with PET coating

SATCO|NUVO's premium LED T8 dual mode lamps offer the most versatility of any linear replacement lamp on the market. These lamps are compatible with ballasts and in ballast bypass systems with single or double-ended wiring to maximize ease of installation. Choose from two, three, or four foot lengths and select 3500K/4000K/5000K during installation for immediate energy savings anywhere fluorescent lamps were used.
  • CCT Selectable - 3500K/4000K/5000K
  • Direct replacement for fluorescent T8 lamps
  • Ballast compatible or ballast bypass installation
  • NSF Certified - P.E.T. coated, shatter resistant glass tube
  • Compatible with select emergency backup and dimming ballasts
  • Dimmable
  • Rated for 50,000 hours

Specifications

General
StatusActive
SubstituteS21761
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType A/B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36
FinishWhite
CCT (Kelvin)3500K/4000K/5000K
TemperatureNeutral White to Natural Light
CRI83
Lumens1675L/1700L/1700L
Beam Spread180
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60Hz
CCT (Kelvin)3500K/4000K/5000K
TemperatureNeutral White to Natural Light
CRI83
Lumens1675L/1700L/1700L
Beam Spread180
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL35.78
MOD1
Nominal Length36
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishWhite
MaterialGlass / Plastic
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.44
Additional Information
Shatter-Proof TypePET Coated
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Listed; cULus - Classified; cETLus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-5FL73B
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923117619
Each Quantity1
Each Length (in.)36.00
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.49
Each Cube (CuFt.)0.0208
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923117616
Case Quantity25
Case Length (in.)38.20
Case Width (in.)6.50
Case Height (in.)6.70
Case Weight (lb.)13.67
Case Cube (CuFt.)0.9627
×
×

Ballast Compatibility

Name Type View
LED T8 Ballast Compatibility Chart LED T8 Ballasts Ballasts View
×

Precautions

No precautions available at this time.

×
