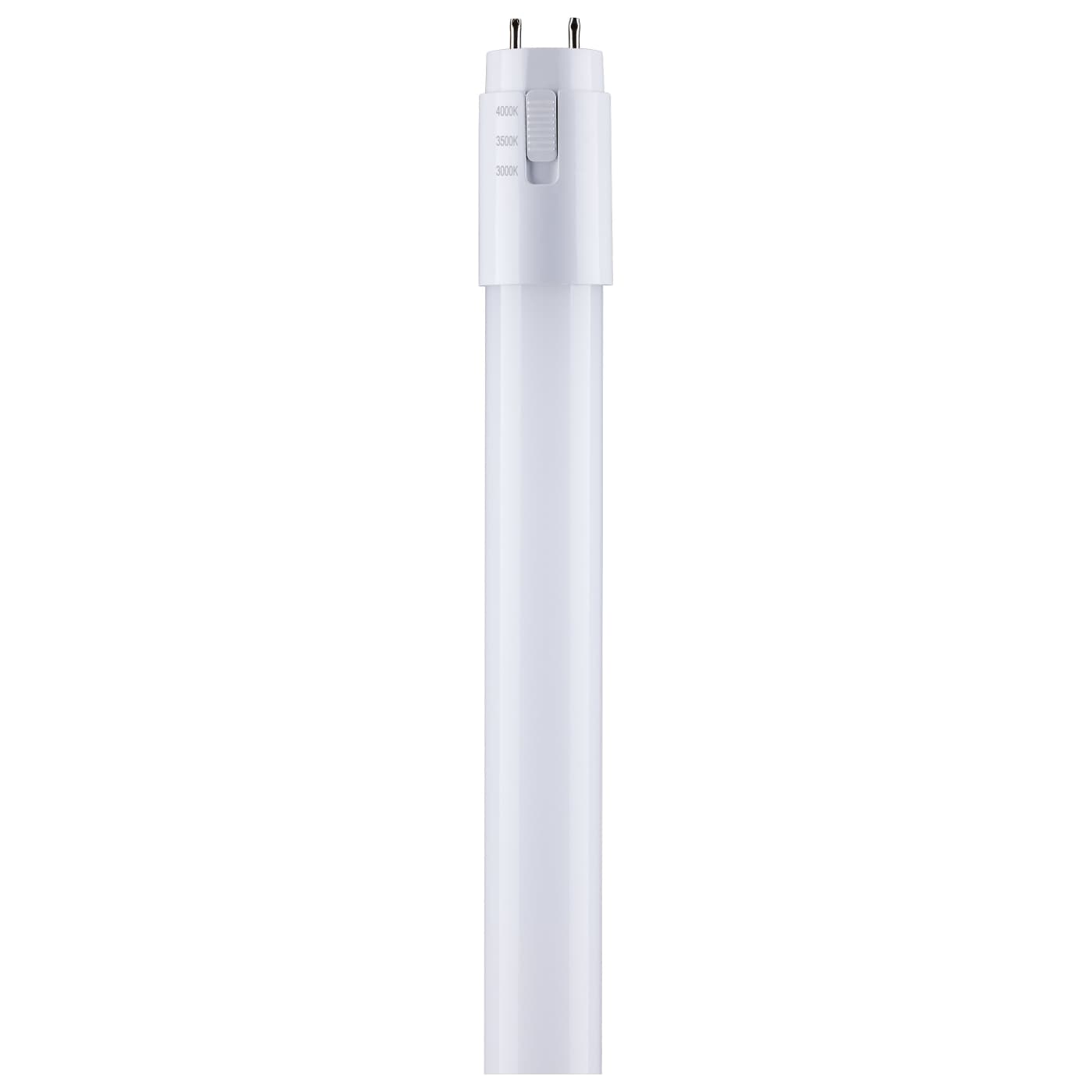

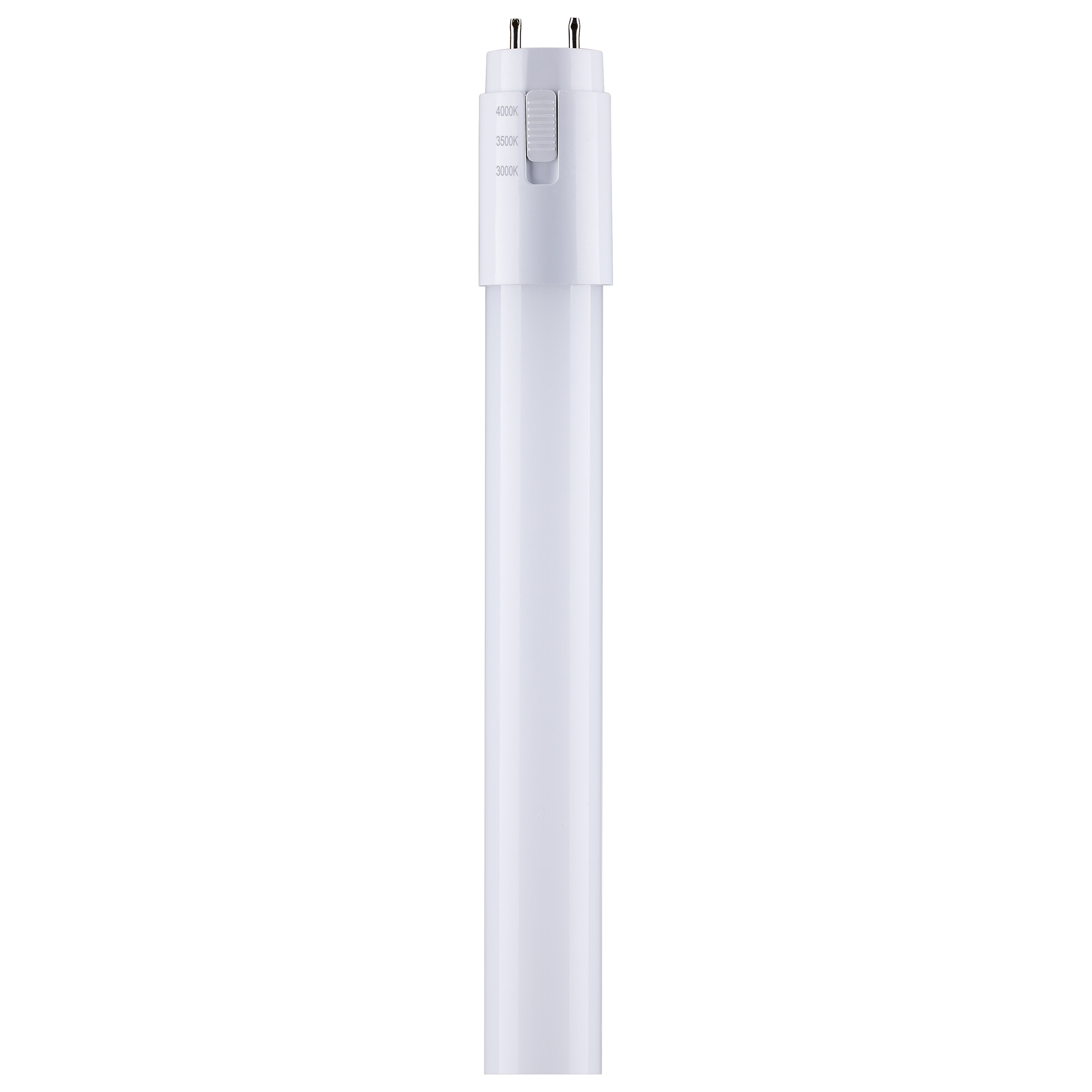

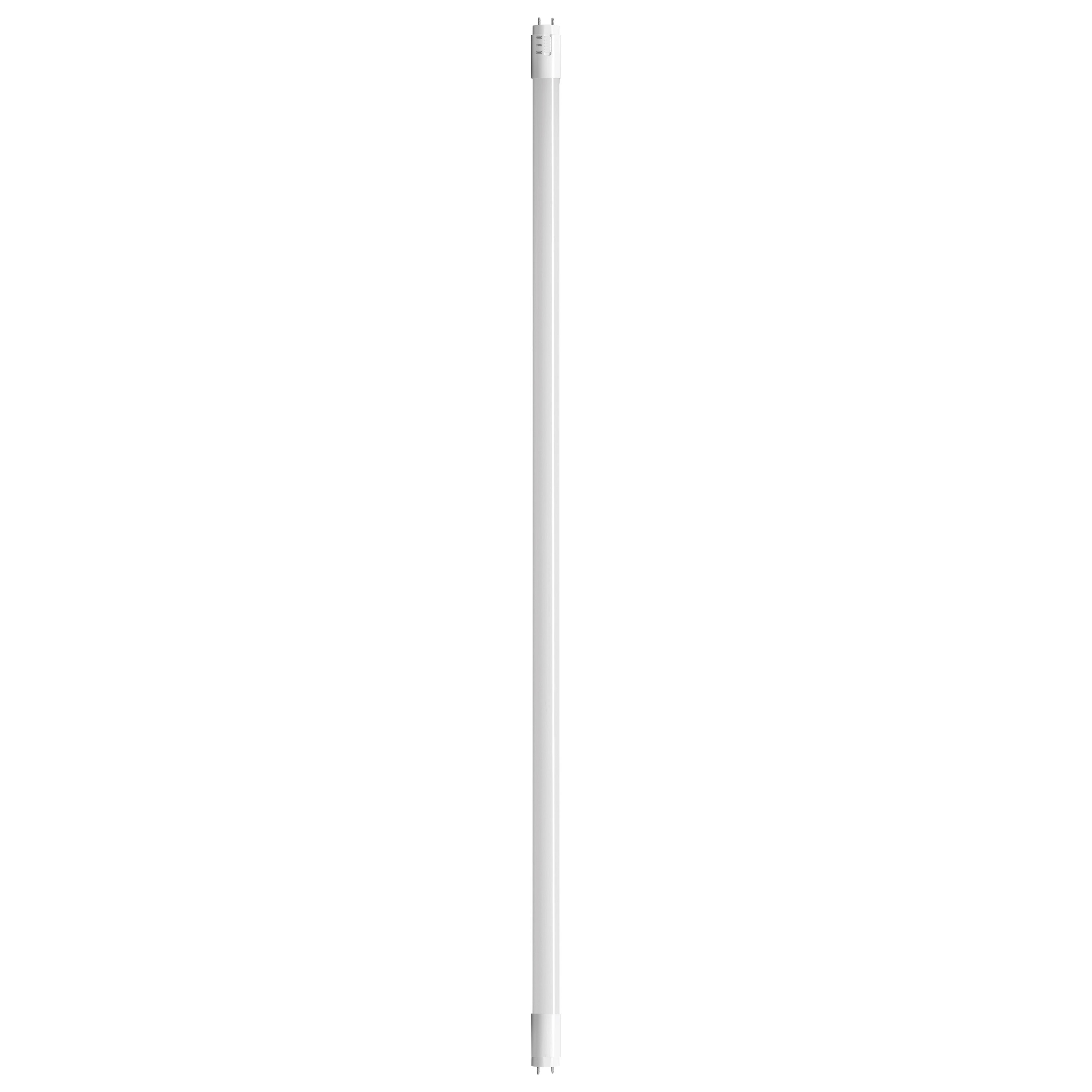

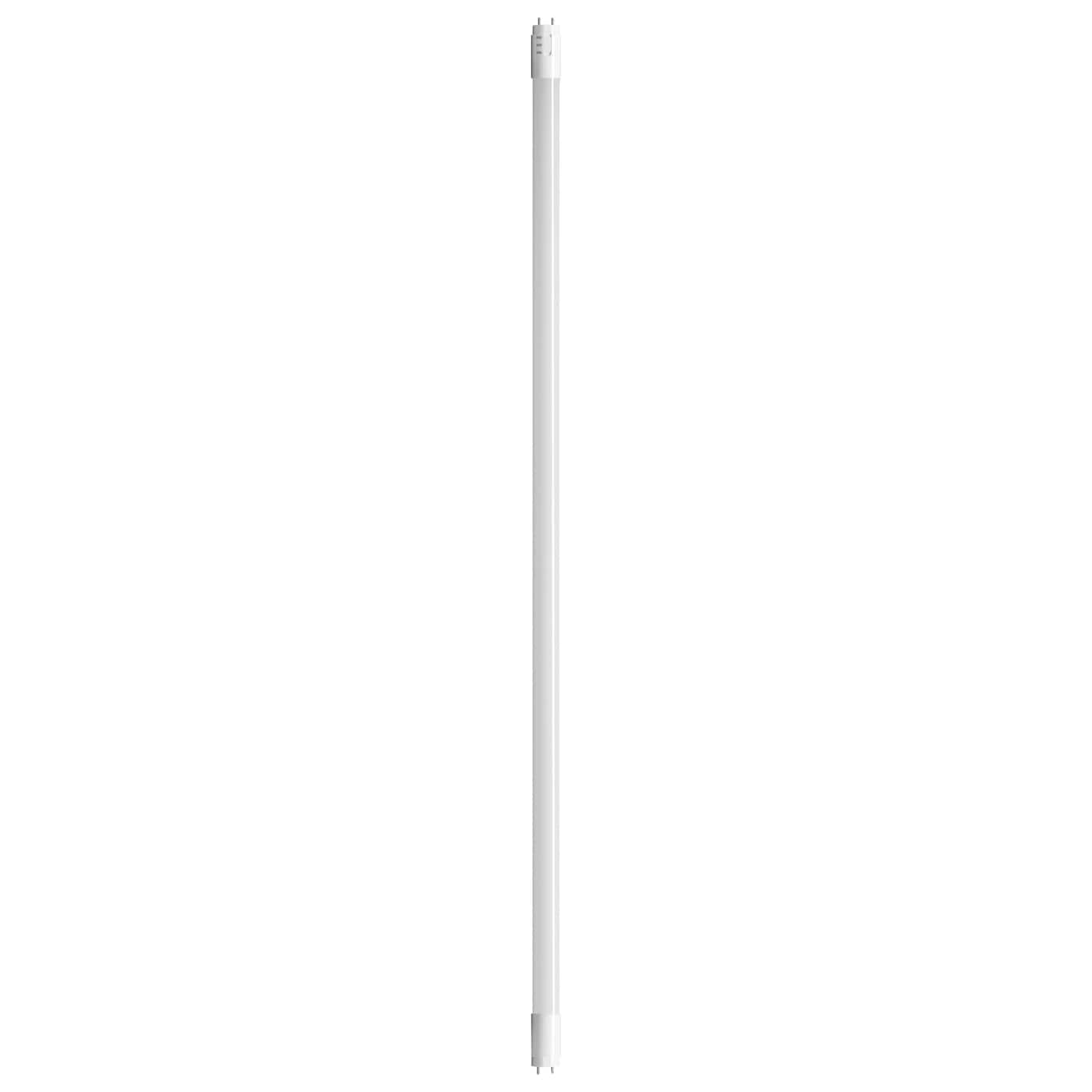

10T8/LED/48/830-835-840/DR - S11968
10T8/LED/48/830-835-840/DR - S11968
10T8/LED/48/830-835-840/DR - S11968
10T8/LED/48/830-835-840/DR - S11968
S11968

10T8/LED/48/830-835-840/DR

Suggested Replacement: S21917
  • 10 Watt T8 LED
  • CCT Selectable
  • G13 base
  • 50000 Average rated hours
  • Type A
  • Ballast Dependent
  • 25PK
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_list^3
S11968 SpecificationsS11968 Ballast Compatibility Chart.pdfS11968 Ballast Compatibility Chart 347V.pdf
Description
Description
10 Watt T8 LED; CCT Selectable; G13 base; 50000 Average rated hours; Type A; Ballast Dependent; 25PK
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A
Ballasting RequirementsBallast required, check compatibility
Dimmable TextOnly Dimmable with Compatible Dimming Ballasts
Lamp FilamentLED
MaterialPlastic
Fixture TypeLinear
StatusTransitioning
StyleUtility
Surge ProtectionBallast Dependent
Total Harmonic Distortion20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Additional InfoSold in packs of 25
Amps0.083-0.036A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)220
Color TempWarm White to Neutral White
CRI80+
Dimming TypeCheck Ballast MFG for Dimmer Compatibility
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1700L/1750L/1800L
VoltsBallast Dependent
Watts10W
Physical
Lamp BaseMedium Bi Pin
FinishWHITE
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL48.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-NRYM8J
Location RatingDamp
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119682
Case Cube1.2601
Case Height6.7
Case Length50.0
Case Quantity25
Case UPC10045923119689
Case Weight8.75
Case Width6.5
EA Cube1.2601
EA Height6.7
EA Length50.0
EA Quantity1
EA Weight0.51
EA Width6.5
Pack TypeSleeve
Web Length48.0
Web Width1.0
