» S28932

Discontinued – Suggested Replacement: S28932R1

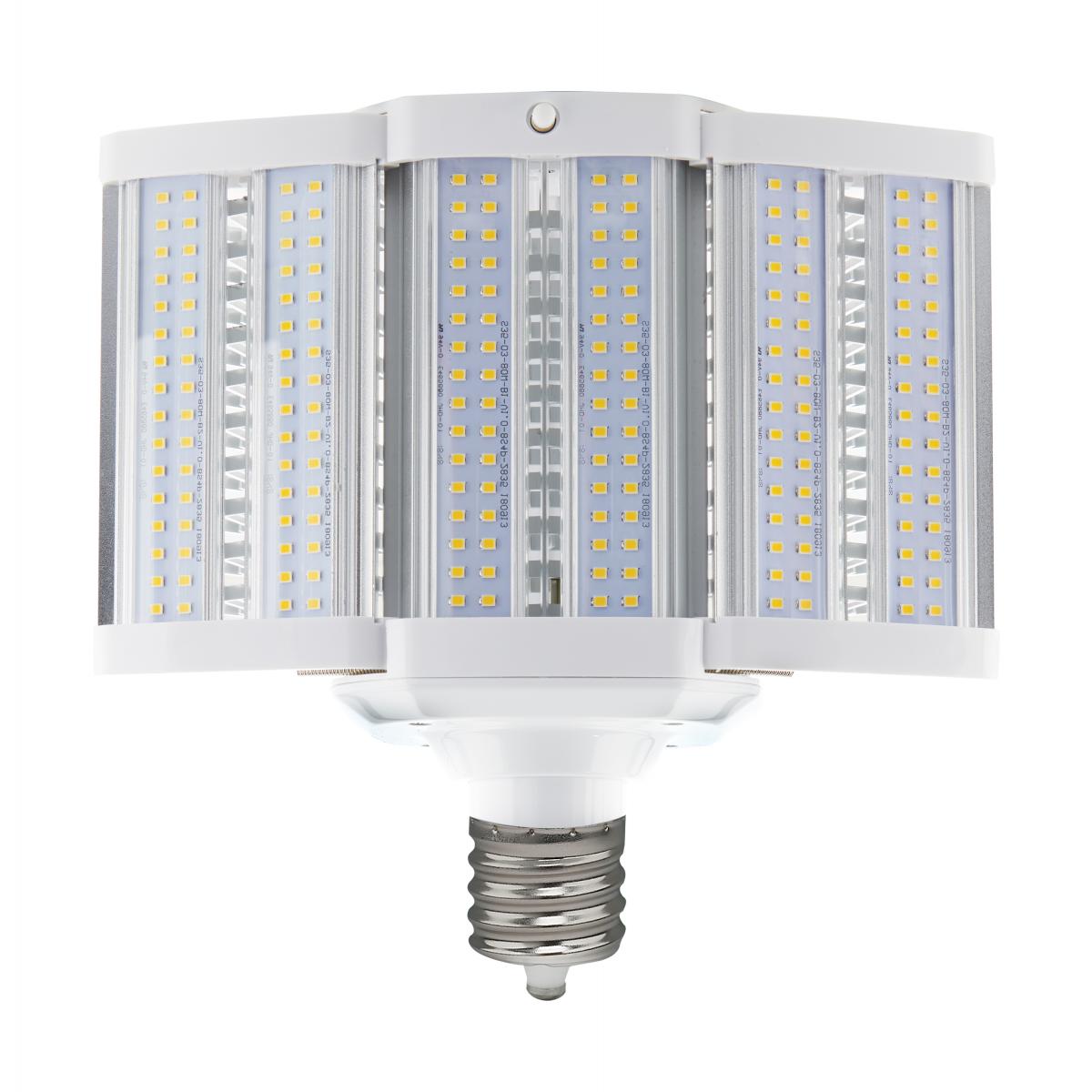

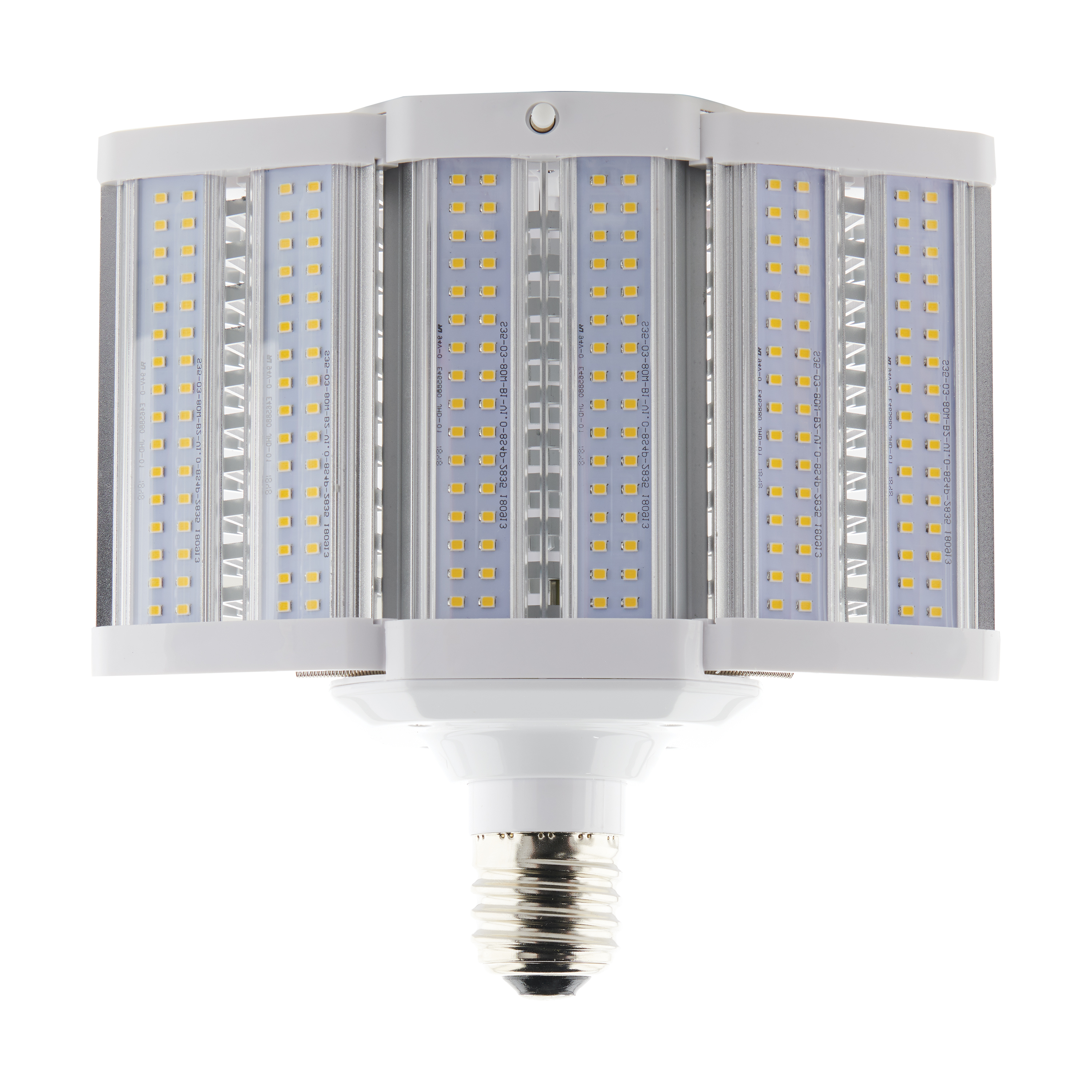

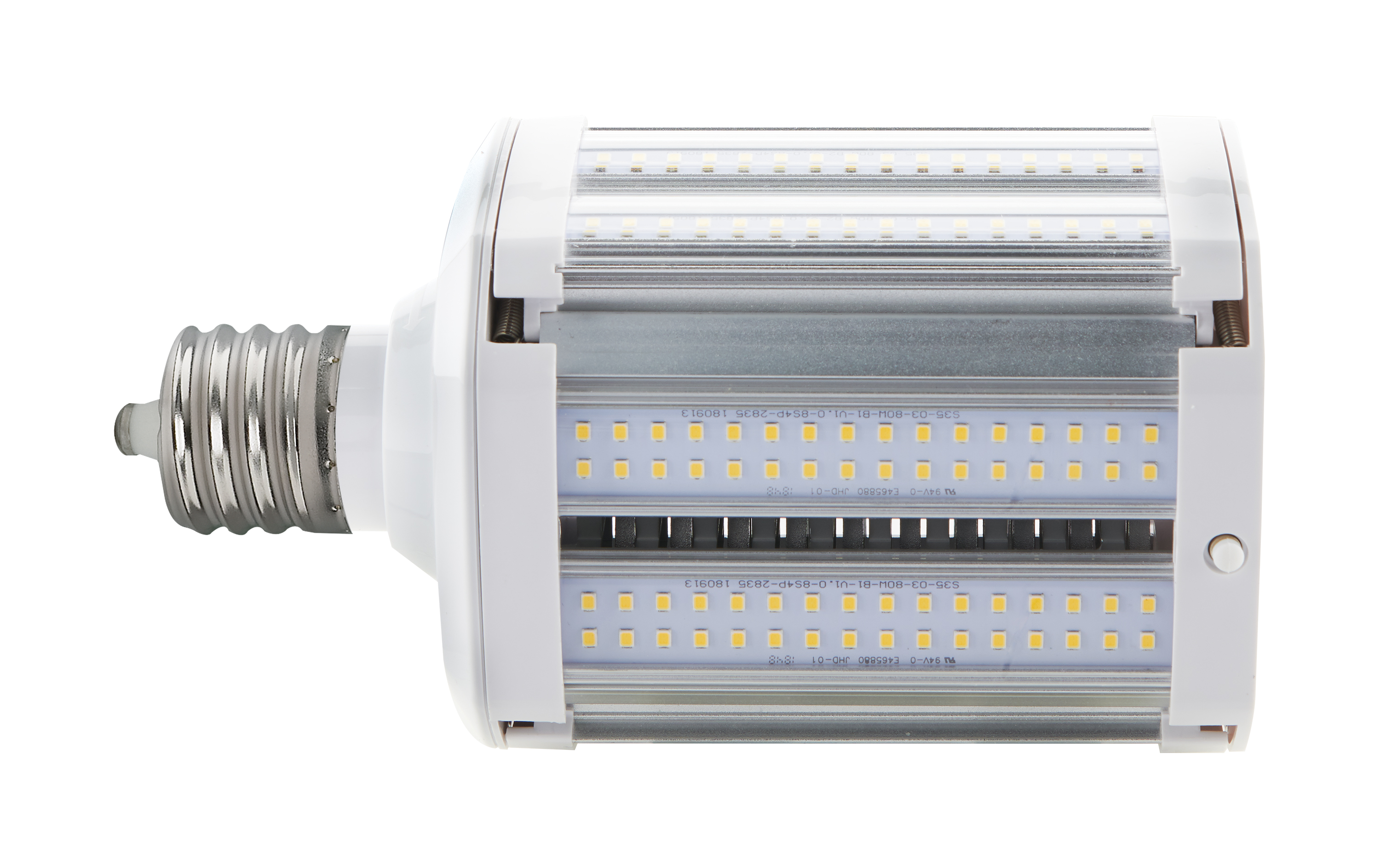

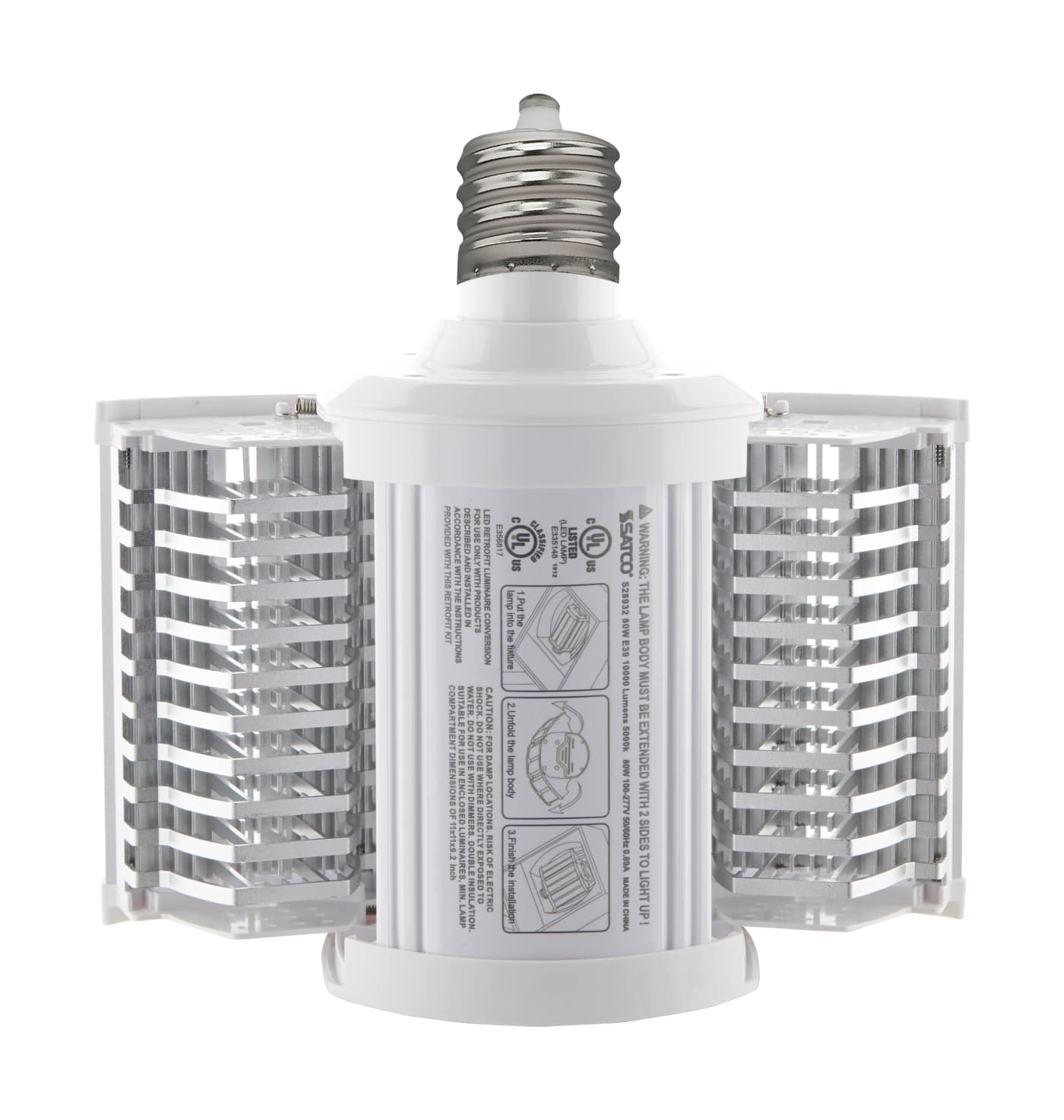

S28932 80W/LED/HID/SB/5K/EX39

S28932

80W/LED/HID/SB/5K/EX39

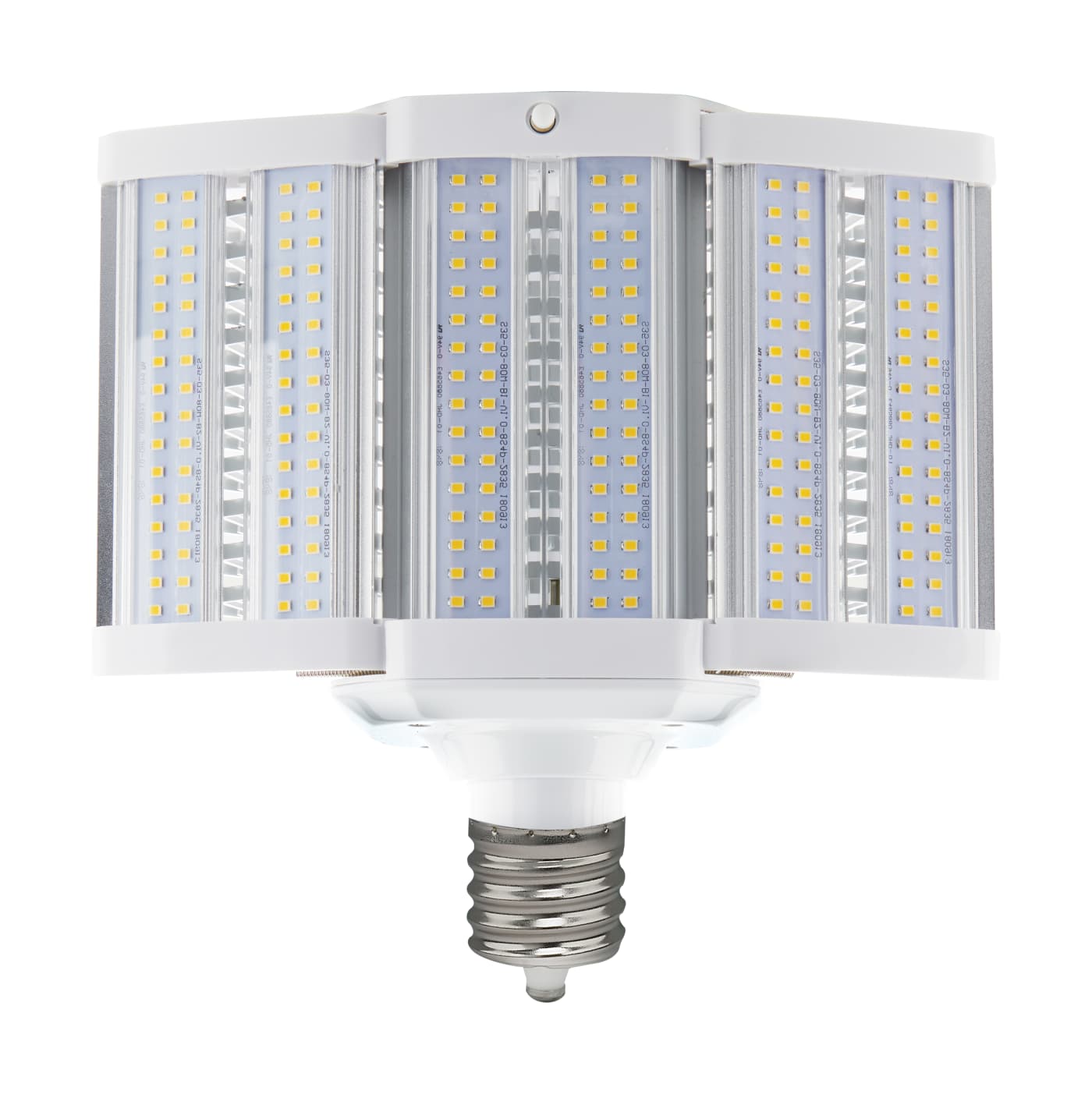

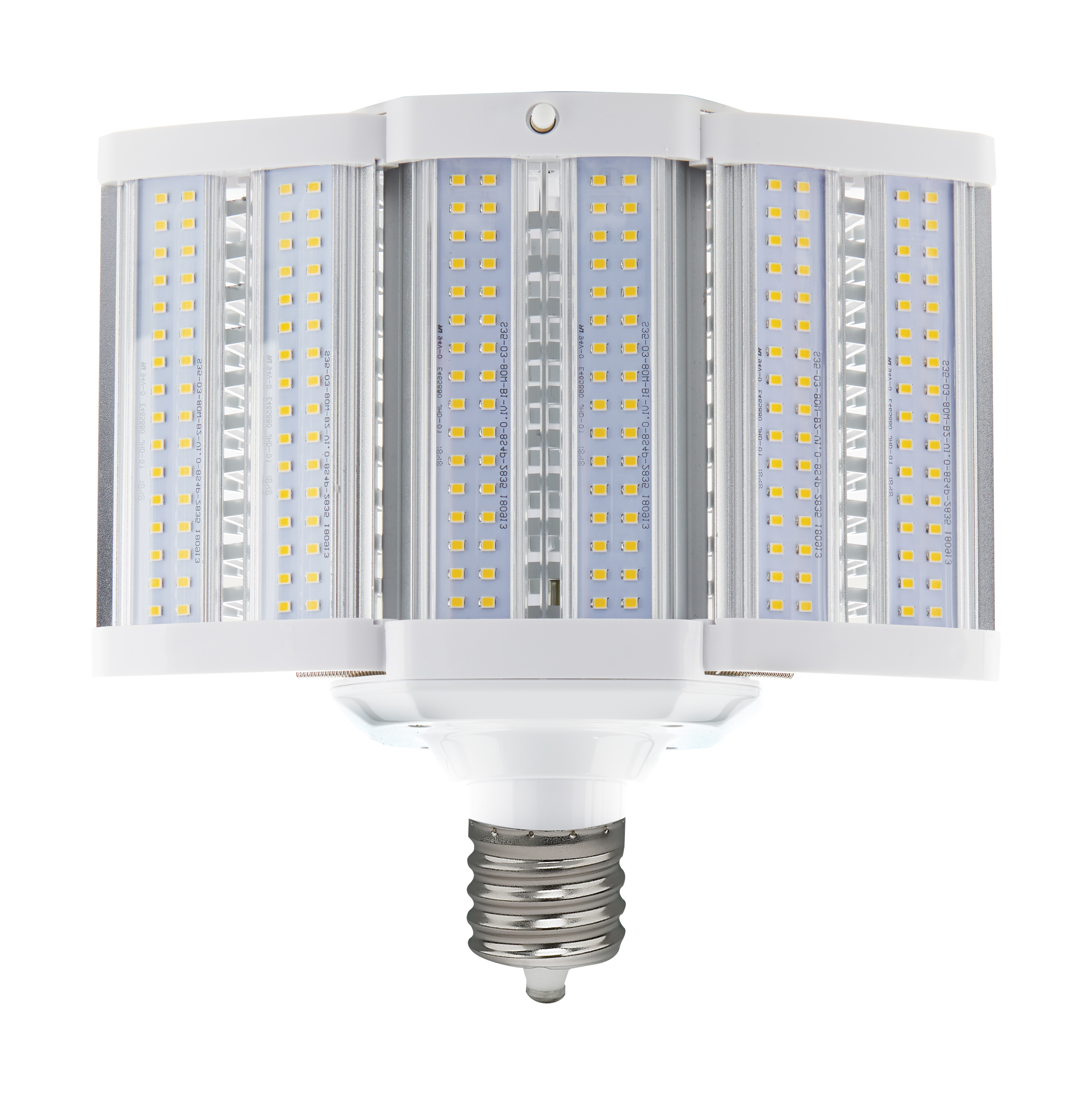

80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications; 5000K; Mogul Extended; Type B Ballast Bypass;100-277 Volt

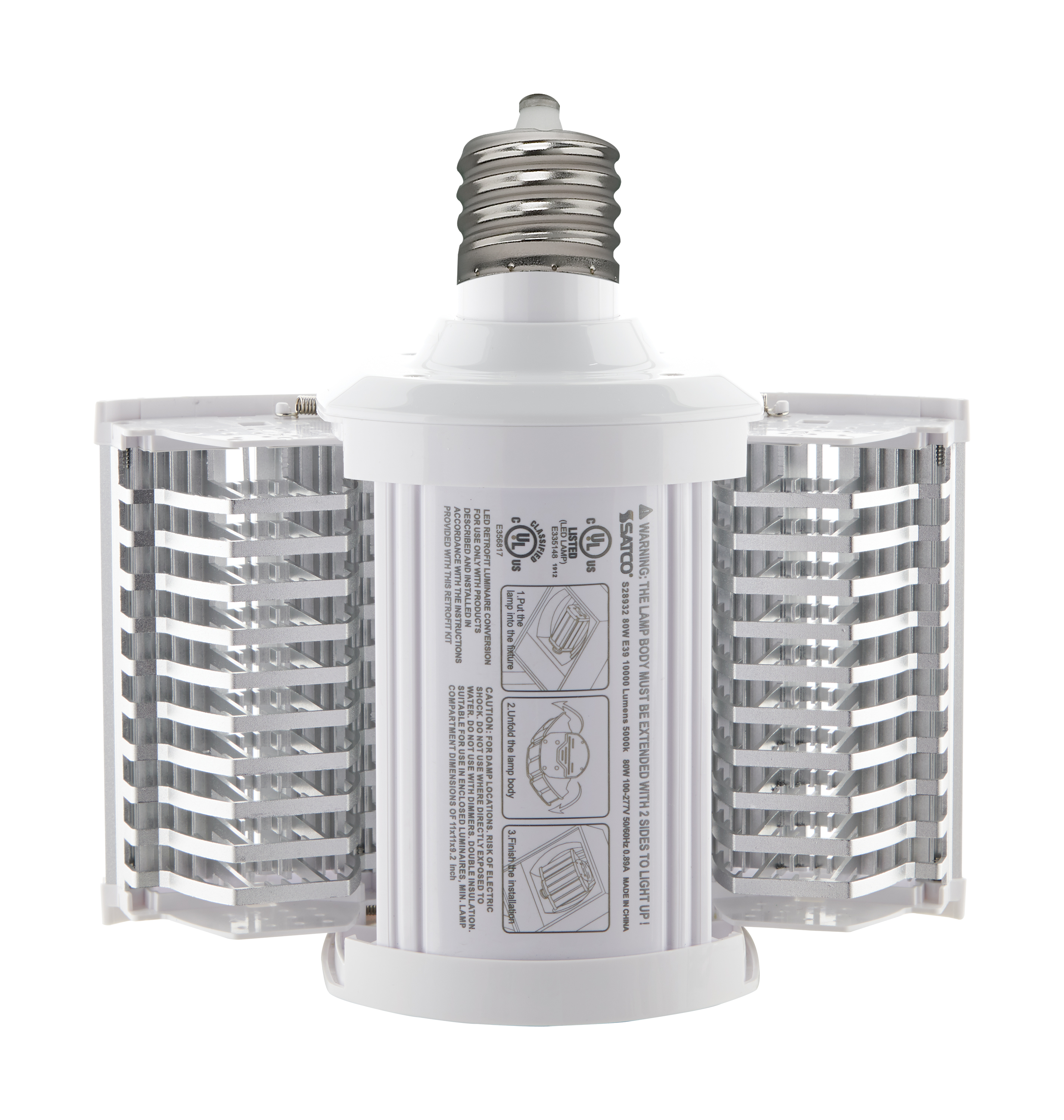

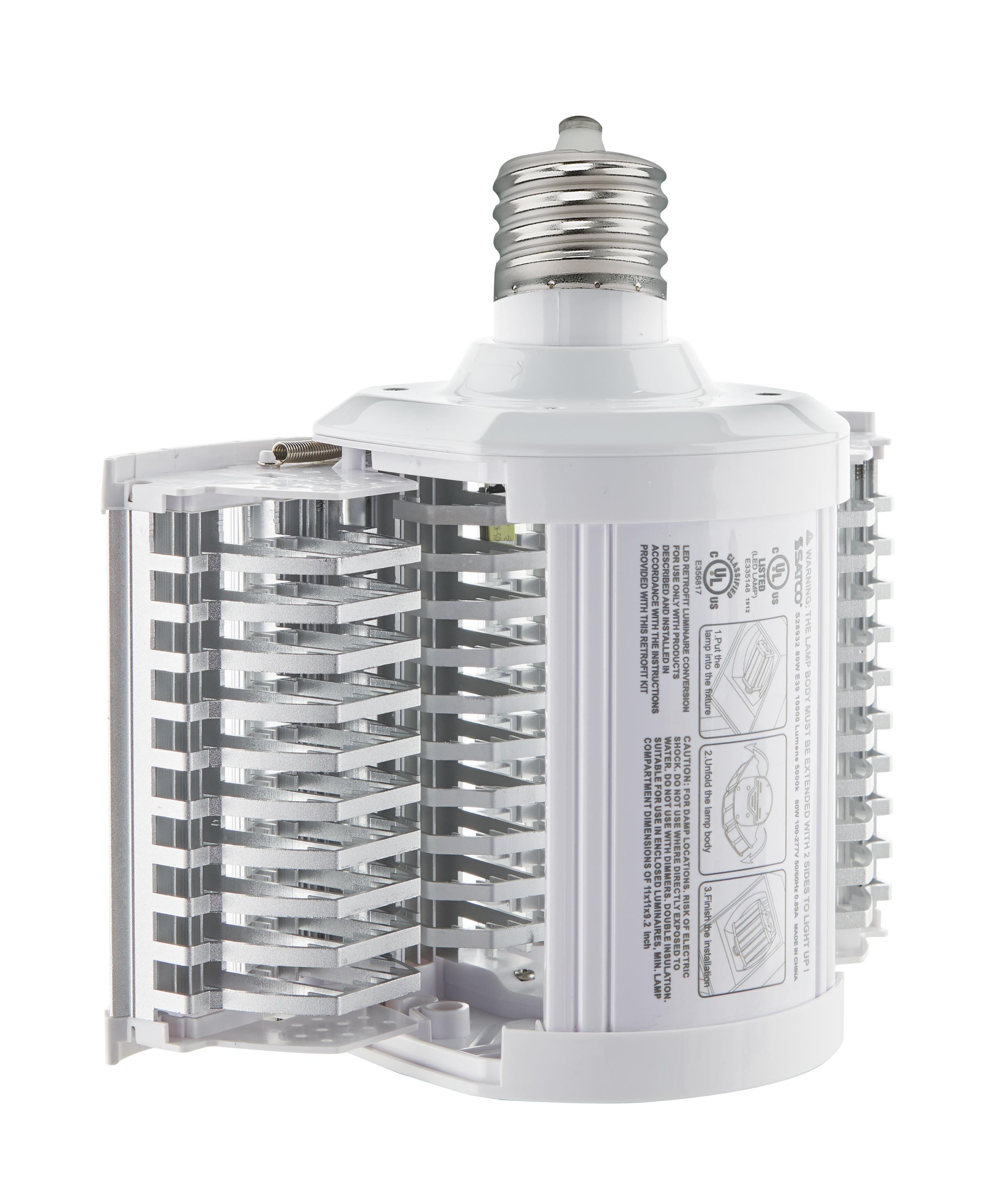

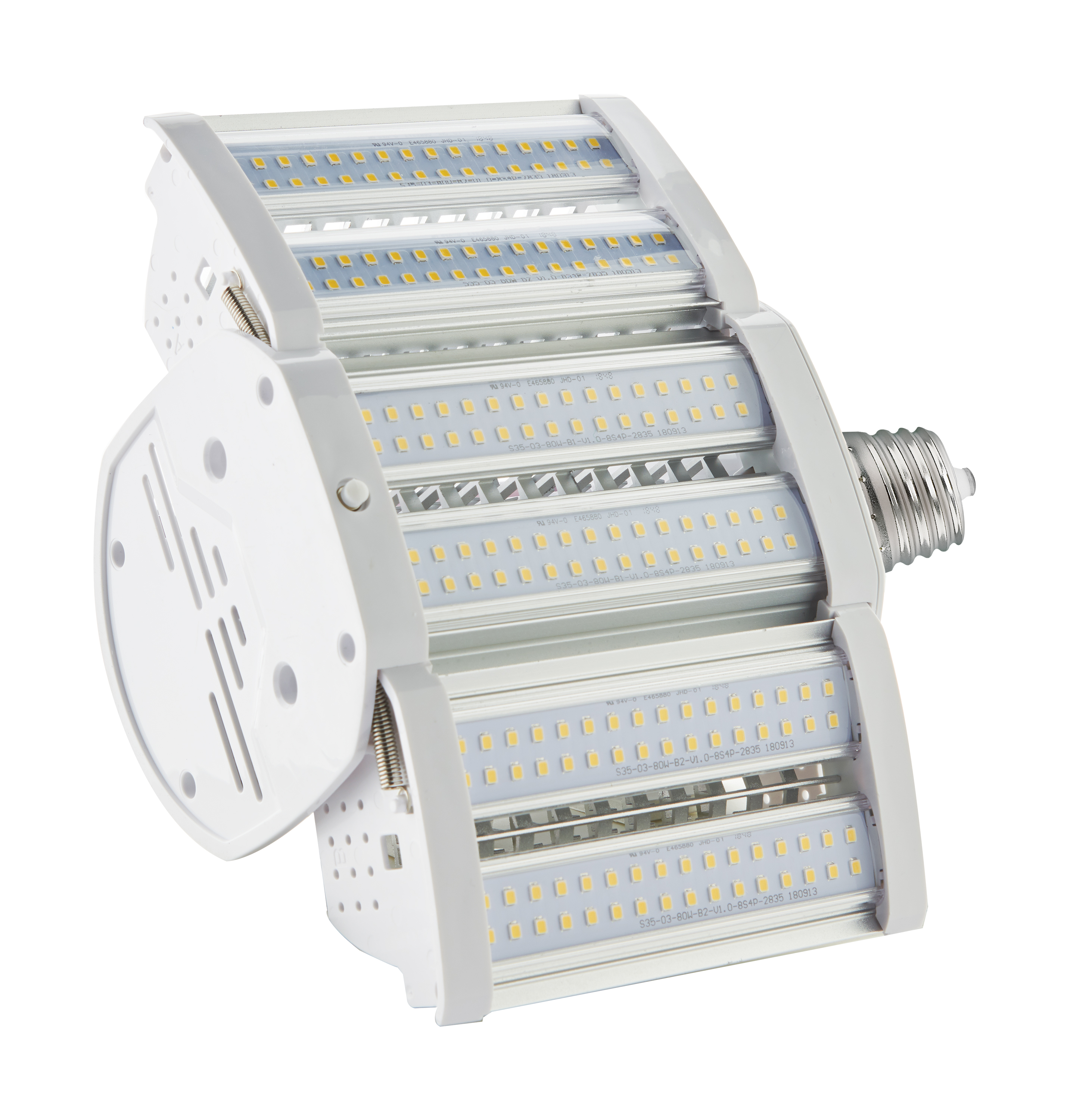

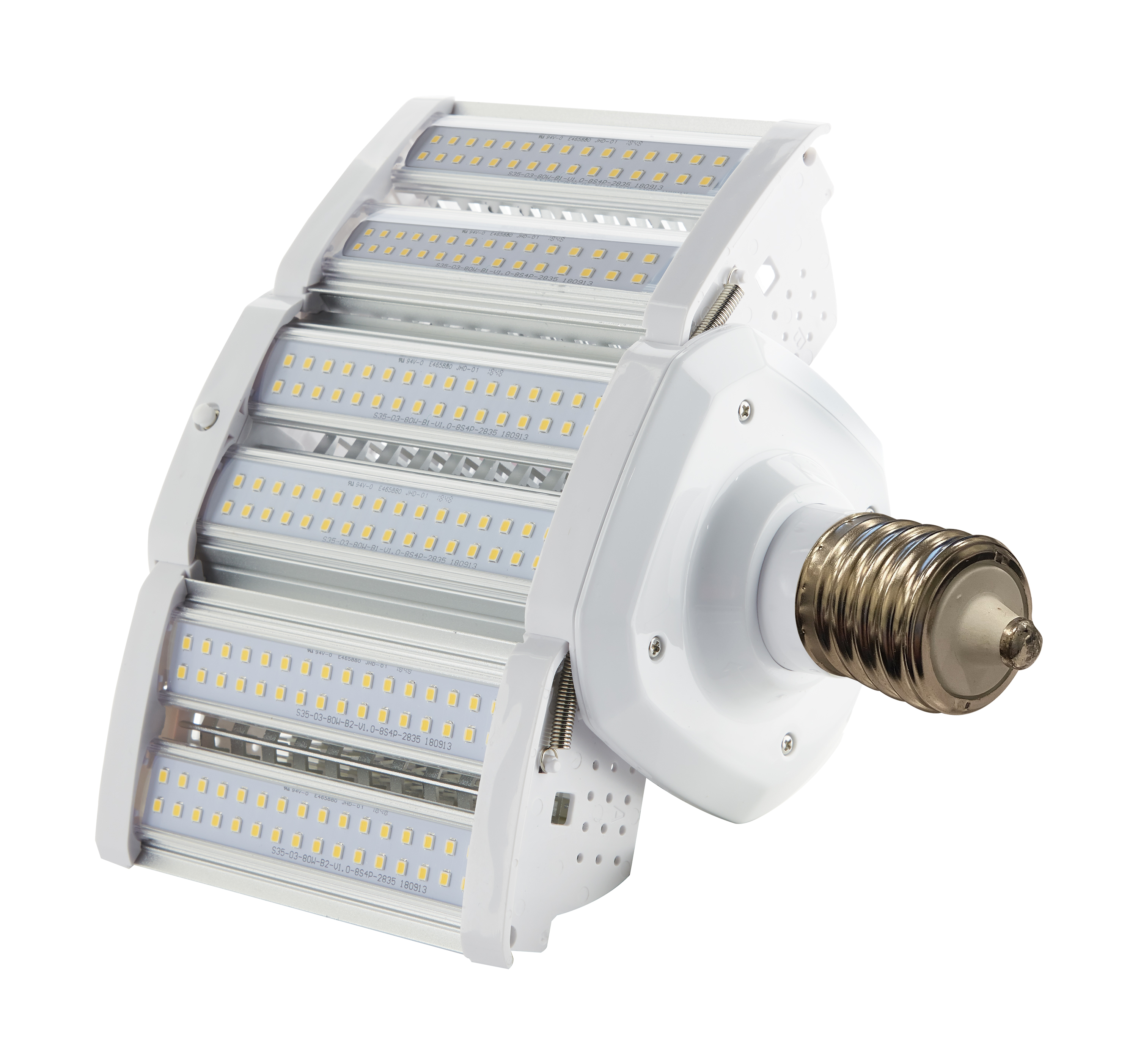

SATCO|NUVO's second generation Hi-Pro shoebox lamps have just gotten a whole lot smarter! The lamps are suitable for new lamps and metal halide replacements. The Gen2 shoebox lamp offers higher efficiency, improved heat dissipation, and a port for mounting motion sensor, photocell, or Wi-Fi accessories. The unique design of its expandable sides helps to make for an easy installation. When opened in position, the lamp delivers a 180 degree beam angle that focuses light distribution to where it is needed most.
  • Natural Light
  • 250W HID Replacement
  • Damp rated for outdoor use
  • Corncob shape; White finish
  • L:8.77 inches; D:4.38 inches
Lights

S28932

80W/LED/HID/SB/5K/EX39

80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications; 5000K; Mogul Extended; Type B Ballast Bypass;100-277 Volt

SATCO|NUVO's second generation Hi-Pro shoebox lamps have just gotten a whole lot smarter! The lamps are suitable for new lamps and metal halide replacements. The Gen2 shoebox lamp offers higher efficiency, improved heat dissipation, and a port for mounting motion sensor, photocell, or Wi-Fi accessories. The unique design of its expandable sides helps to make for an easy installation. When opened in position, the lamp delivers a 180 degree beam angle that focuses light distribution to where it is needed most.
  • Natural Light
  • 250W HID Replacement
  • Damp rated for outdoor use
  • Corncob shape; White finish
  • L:8.77 inches; D:4.38 inches

Specifications

General
StatusDiscontinued
SubstituteS28932R1
Watts80W
Incandescent Equivalent400W
HID Equivalent250W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
CCT (Kelvin)5000K
TemperatureNatural Light
CRI83

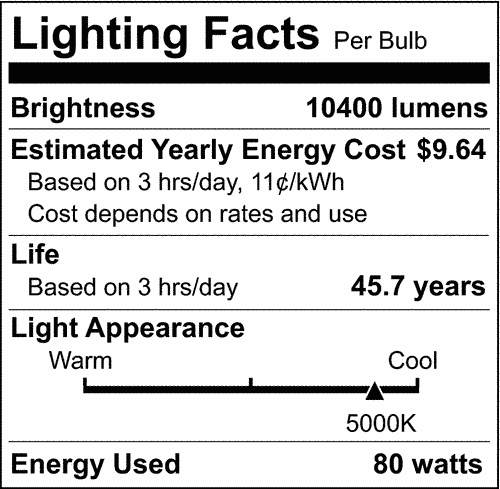

Lumens10400L
Beam Spread180
Hours Rated50000
Product CategoryExpandable Hi-Pro
Lamp TypeExpandable Hi-Pro
TechnologyLED

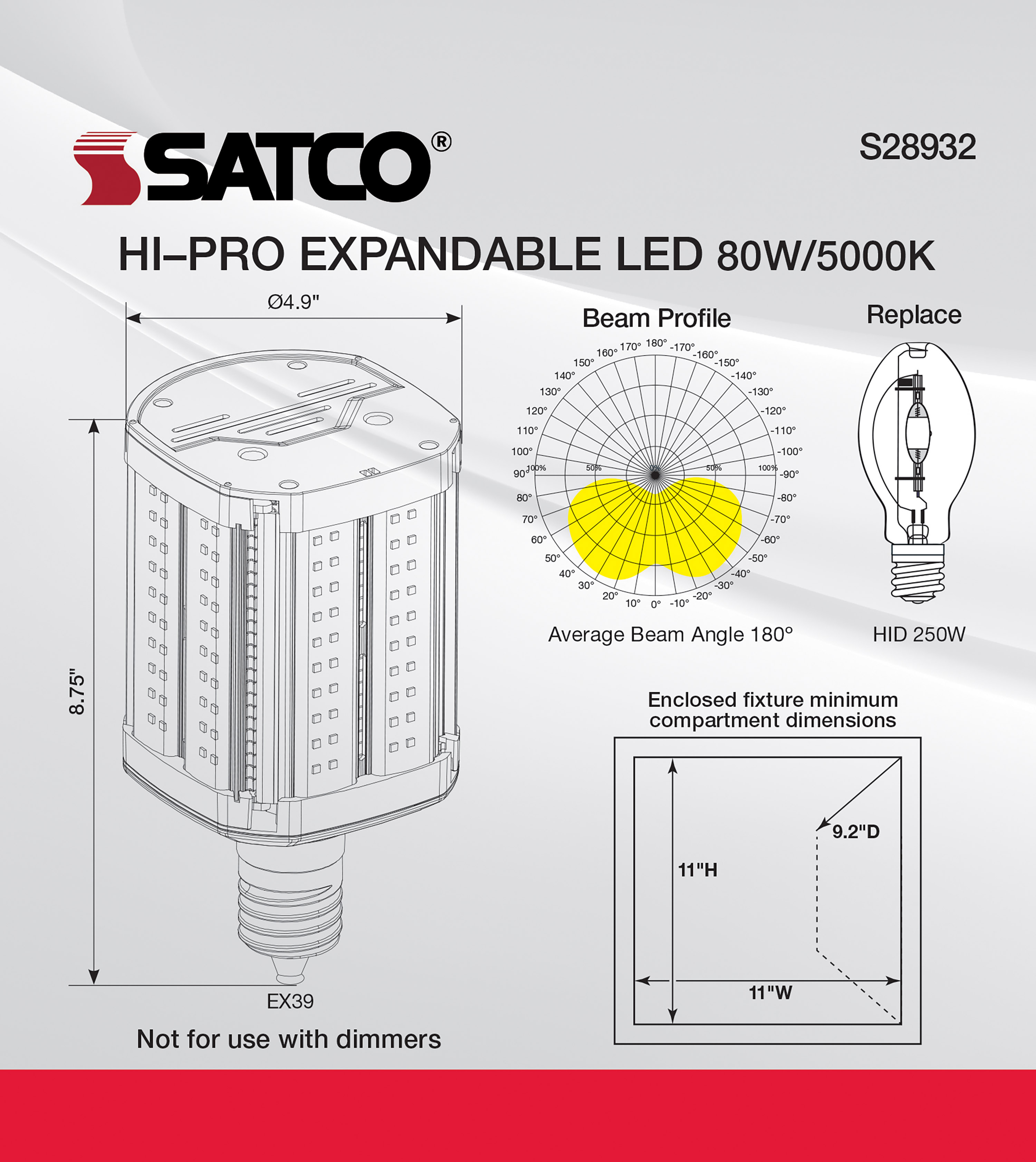

Min Compartment SizeLength: 11 in. Width: 9.2 in. Height: 11 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts80W
Incandescent Equivalent400W
HID Equivalent250W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI83
Lumens10400L
Beam Spread180
Power Factor0.9
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection - 4KV
THD15.10%
Operating Temperature-30C (-22F) to +45C (+113F)
Physical
MOL8.77
MOD4.38
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
Lens FinishWhite
Lens MaterialPlastic (PS)
Housing ColorWhite
Weight (lb.)2.42
Additional Information
Min Compartment SizeLength: 11 in. Width: 9.2 in. Height: 11 in.
Rated For Enclosed FixtureYes
IP RatingIP64

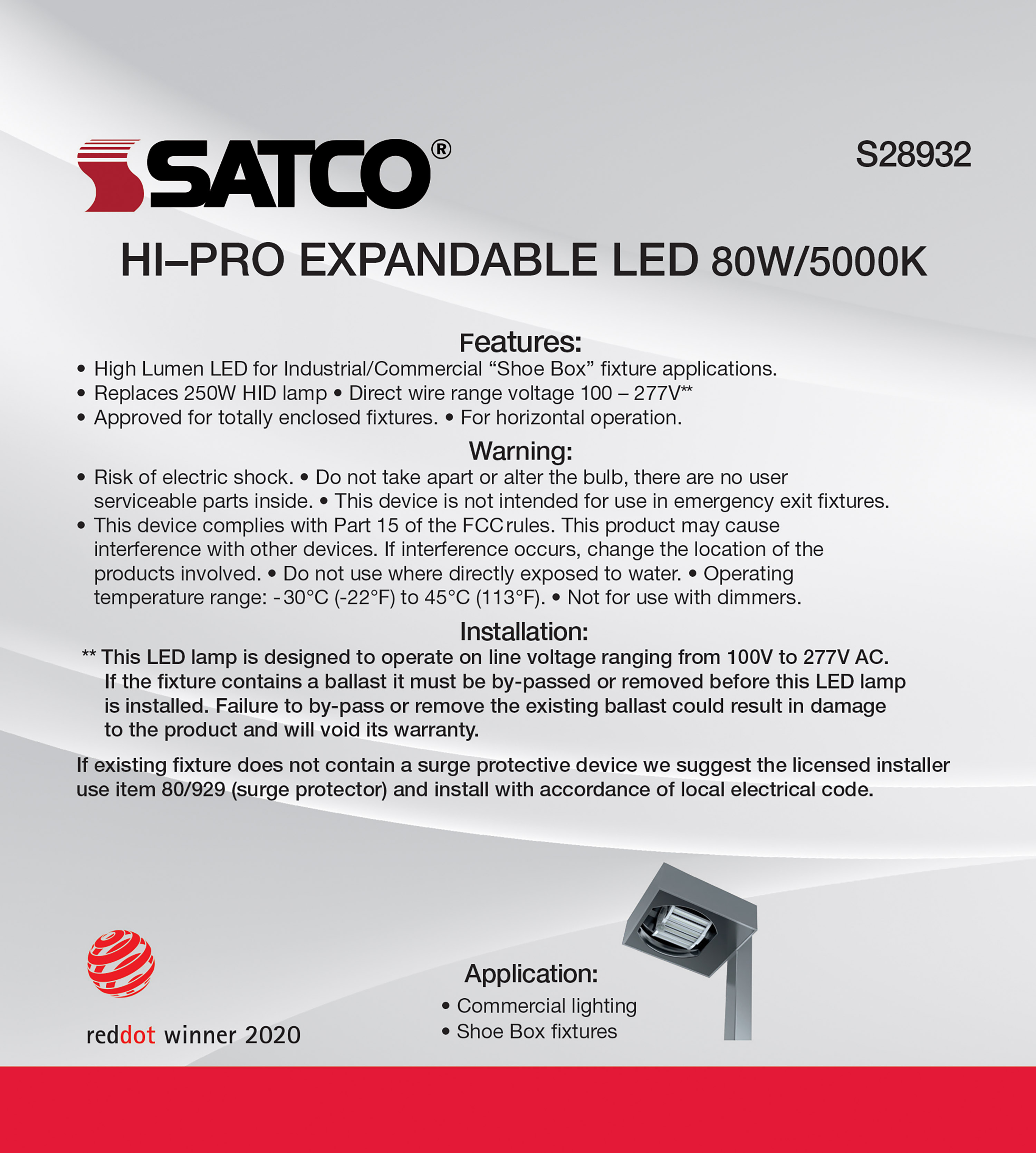

Specification NoteThis is not to be used with a ballast
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcUL - Classified; cUL - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPL0NRCV506NZ; PLO20DYP1HZI
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923289323
Each Quantity1
Each Length (in.)10.30
Each Width (in.)5.70
Each Height (in.)6.45
Each Weight (lb.)3.52
Each Cube (CuFt.)0.2191
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923289320
Case Quantity4
Case Length (in.)10.89
Case Width (in.)11.99
Case Height (in.)13.56
Case Weight (lb.)15.40
Case Cube (CuFt.)1.0246
