| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Aluminum / Plastic |
| Fixture Type | Expandable Hi-Pro |
| Product Notes | This is not to be used with a ballast |
| Status | Discontinued |
| Style | Utility |
| Most Current Generation | S28938R1 |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 18.10% |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 1.100-0.397A |
| Has Camera | False |
| IOT Enabled | True |
| Lens Finish | White |
| Lens Material | Plastic (PS) |
| Lensed | True |

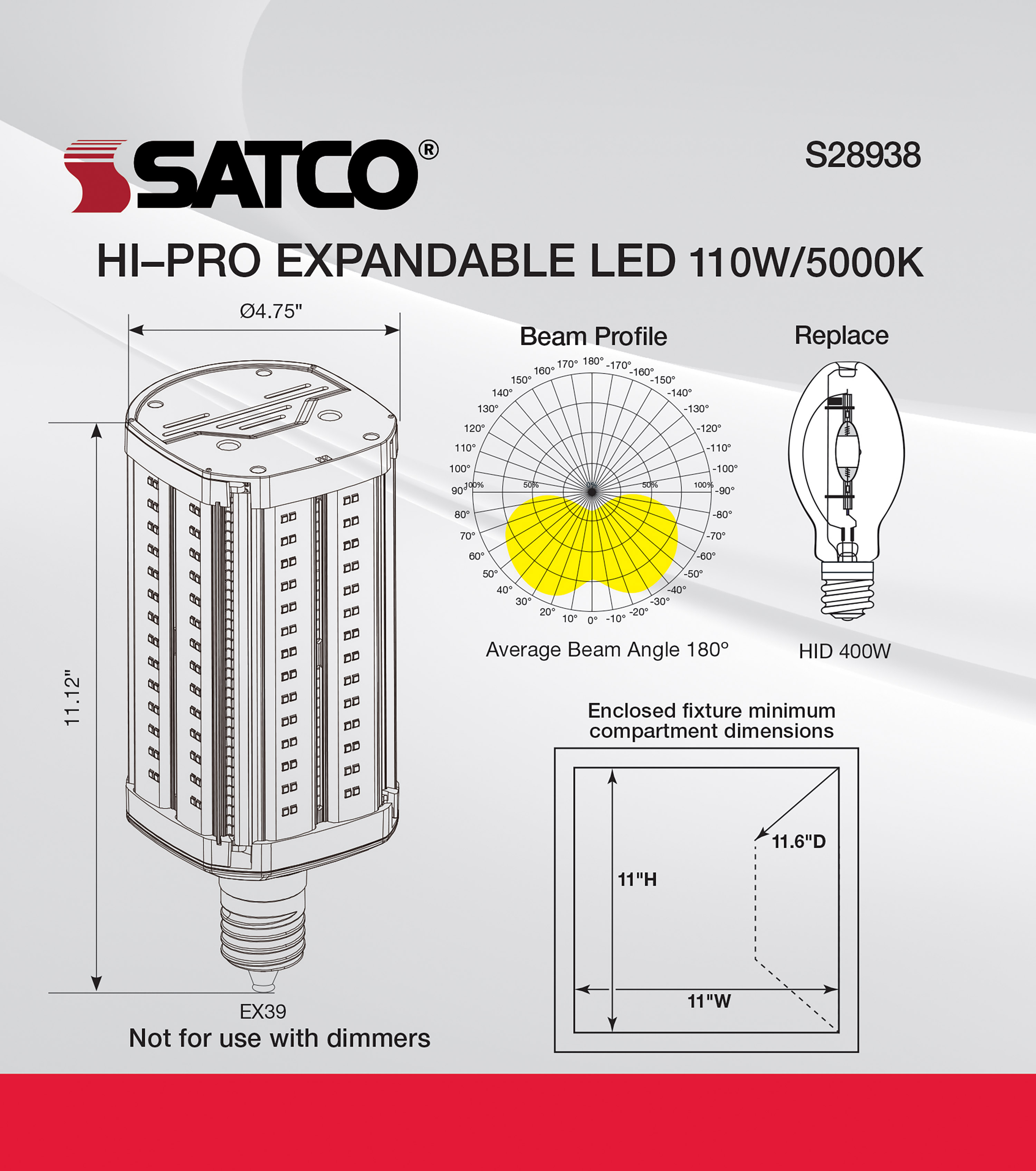

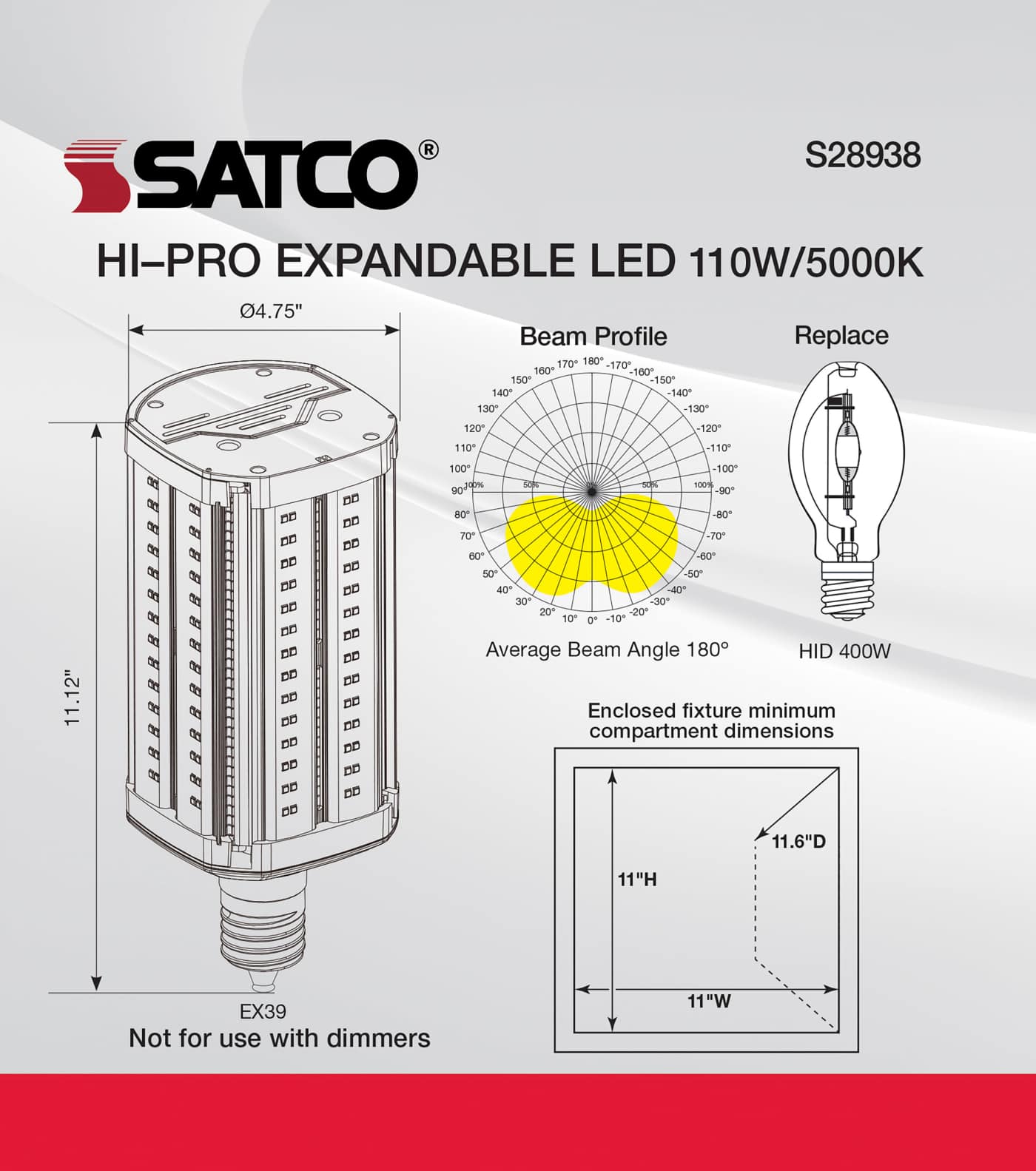

| Minimum Compartment Size | Length: 11 in. Width: 11.6 in. Height: 11 in. |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 750W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 180 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 400W |

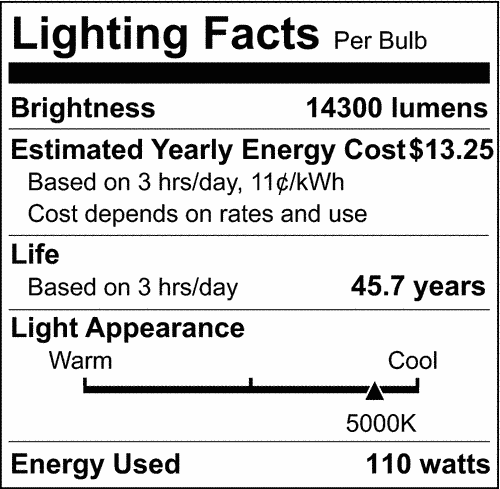

| Lumens | 14300L |
| Volts | 120V-277V |
| Watts | 110W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | EX39 |
| Lamp Type | Corncob |
| MOD Lamps | 4.38 |
| MOL | 11.13 |
| Warranty | 5-Years |
|---|---|

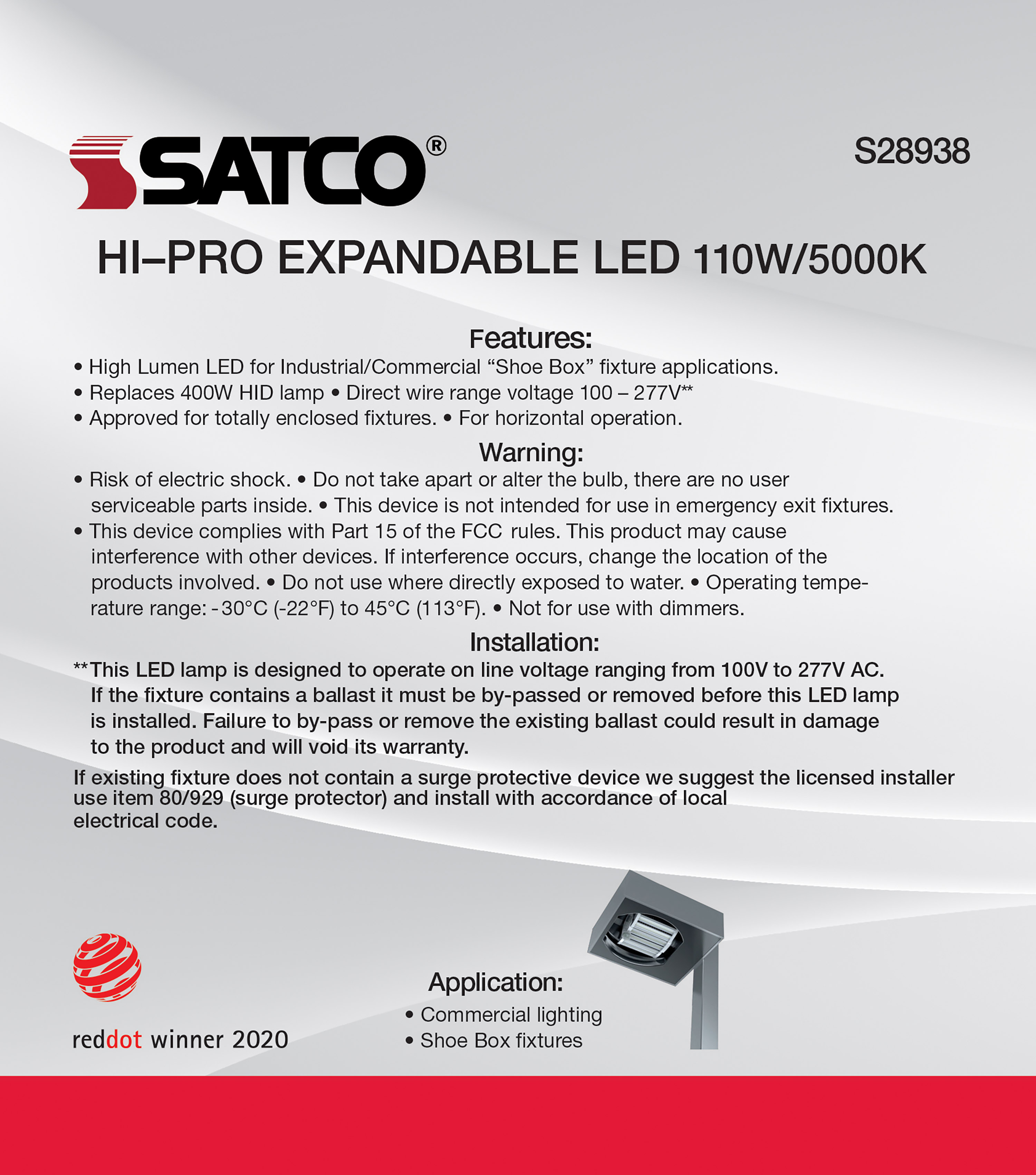

| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| CO Status | Lawful for sale |
| DLC ID | PLNP6G97552X |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| IP Rating | IP64 |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923289385 |
|---|---|
| Case Cube | 1.2457 |
| Case Height | 13.56 |
| Case Length | 13.24 |
| Case Quantity | 4 |
| Case UPC | 10045923289382 |
| Case Weight | 19.8 |
| Case Width | 11.99 |
| EA Cube | 0.2654 |
| EA Height | 6.45 |
| EA Length | 5.63 |
| EA Quantity | 1 |
| EA Weight | 4.62 |
| EA Width | 12.63 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |

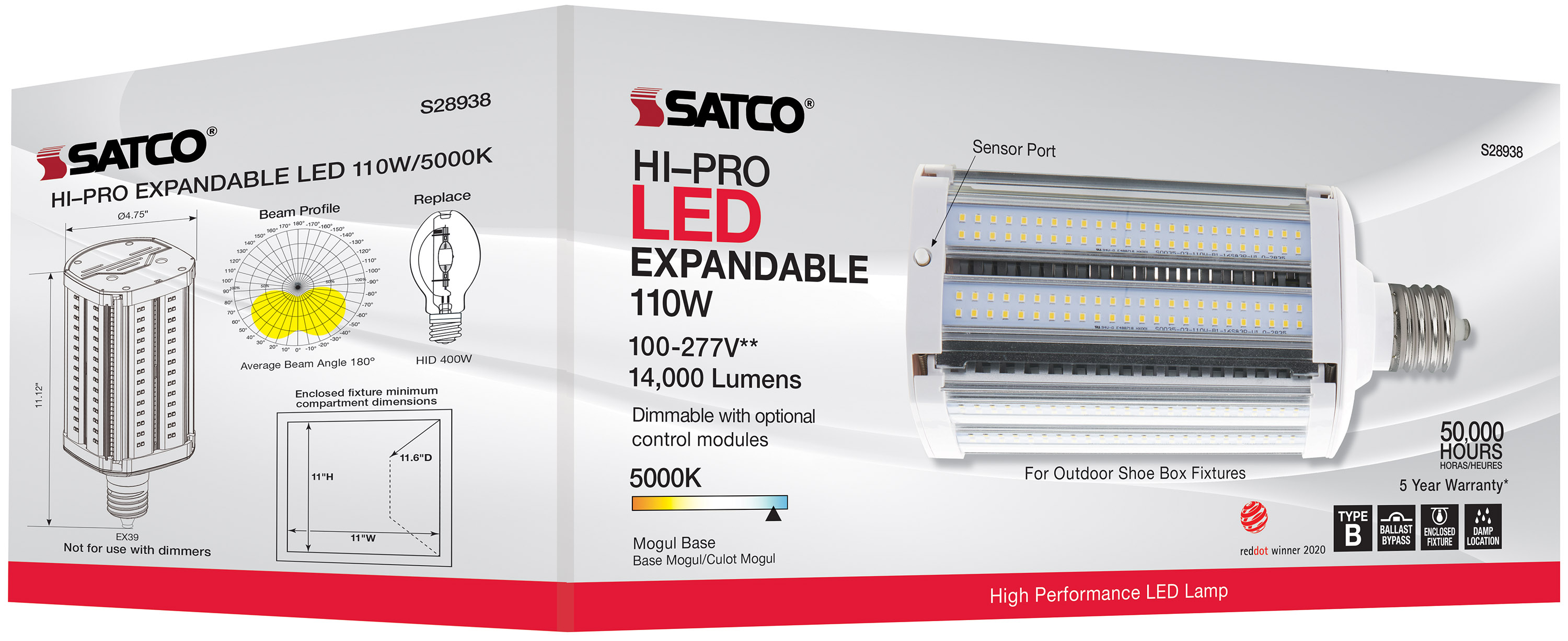

| Pack Type | Box |
| Web Length | 11.13 |
| Web Width | 4.38 |
