SKU S39472 - Image 1
S39472

9WLED/DIR/5-6/27K/120V

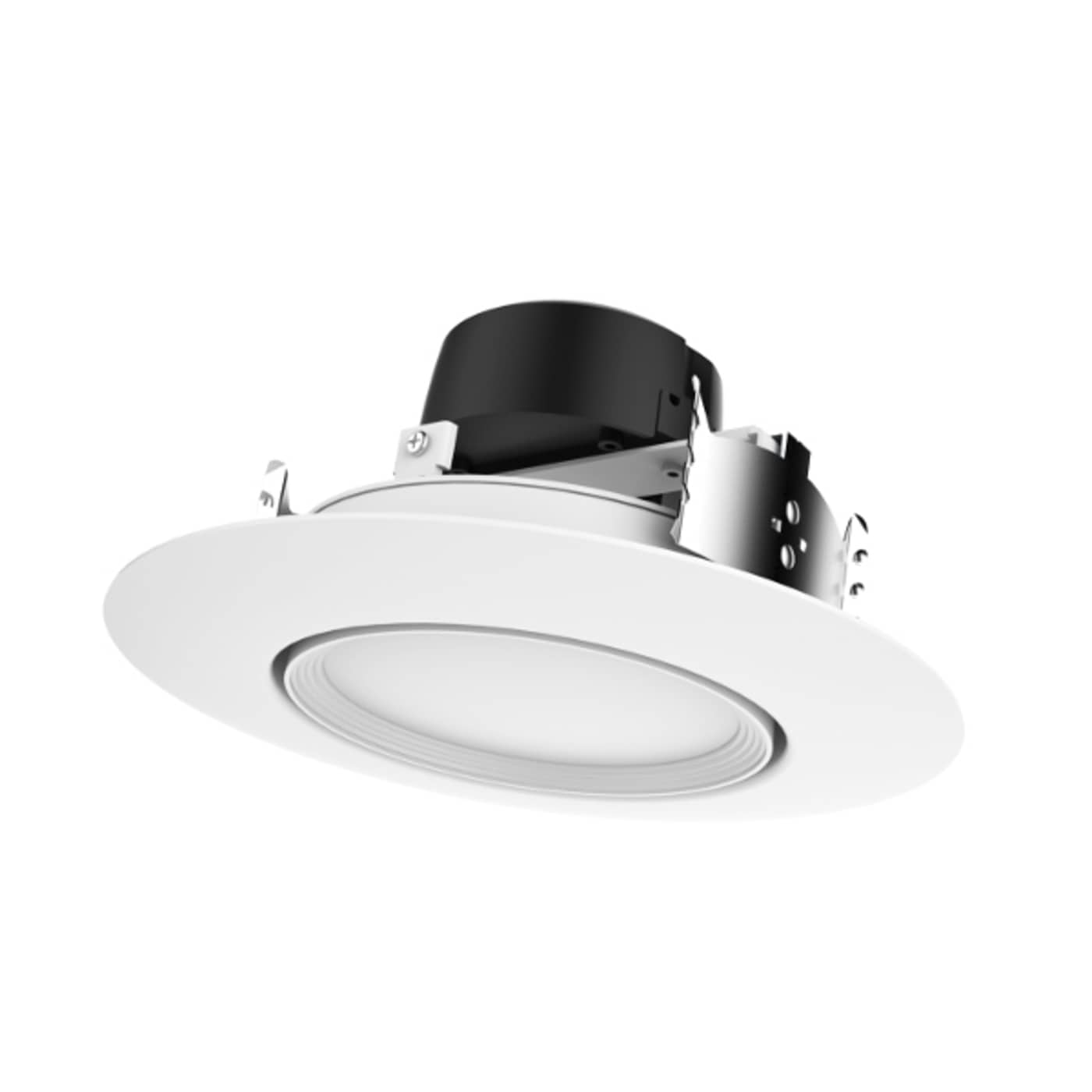

  • 9 watt LED Directional Retrofit Downlight - Gimbaled
  • 5"-6"
  • 2700K
  • 120 volts
  • Dimmable
  • White Finish
location_rating^damp^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S39472 SpecificationsS39472 InstructionsNU1350-5 LO RES LED Fixt Guide 10 20
Tools
Lighting Layout Analysis For S39472
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9 watt LED Directional Retrofit Downlight - Gimbaled; 5"-6"; 2700K; 120 volts; Dimmable; White Finish
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter7.41
MaterialThermo Plastic (PBT)
Fixture TypeDownlight Retrofit
Product NotesAiming Angle: 30dg
StatusDiscontinued
Most Current GenerationS11824
CCT SelectableFalse
Wattage SelectableFalse
Can Size5-6 in.
Finish FamilyWhite
Additional InfoTrim material is Thermo Plastic; Trim color is White
Amps0.075A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
Power Factor0.95
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens800L
Volts120v
Watts9W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextCalifornia T24 Listed
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923394720
Case Cube1.7047
Case Height9.06
Case Length18.98
Case Quantity8
Case UPC10045923394727
Case Weight11.57
Case Width17.13
EA Cube0.1672
EA Height8.07
EA Length8.27
EA Quantity1
EA Weight0.9
EA Width4.33
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.91
Web Width7.41
