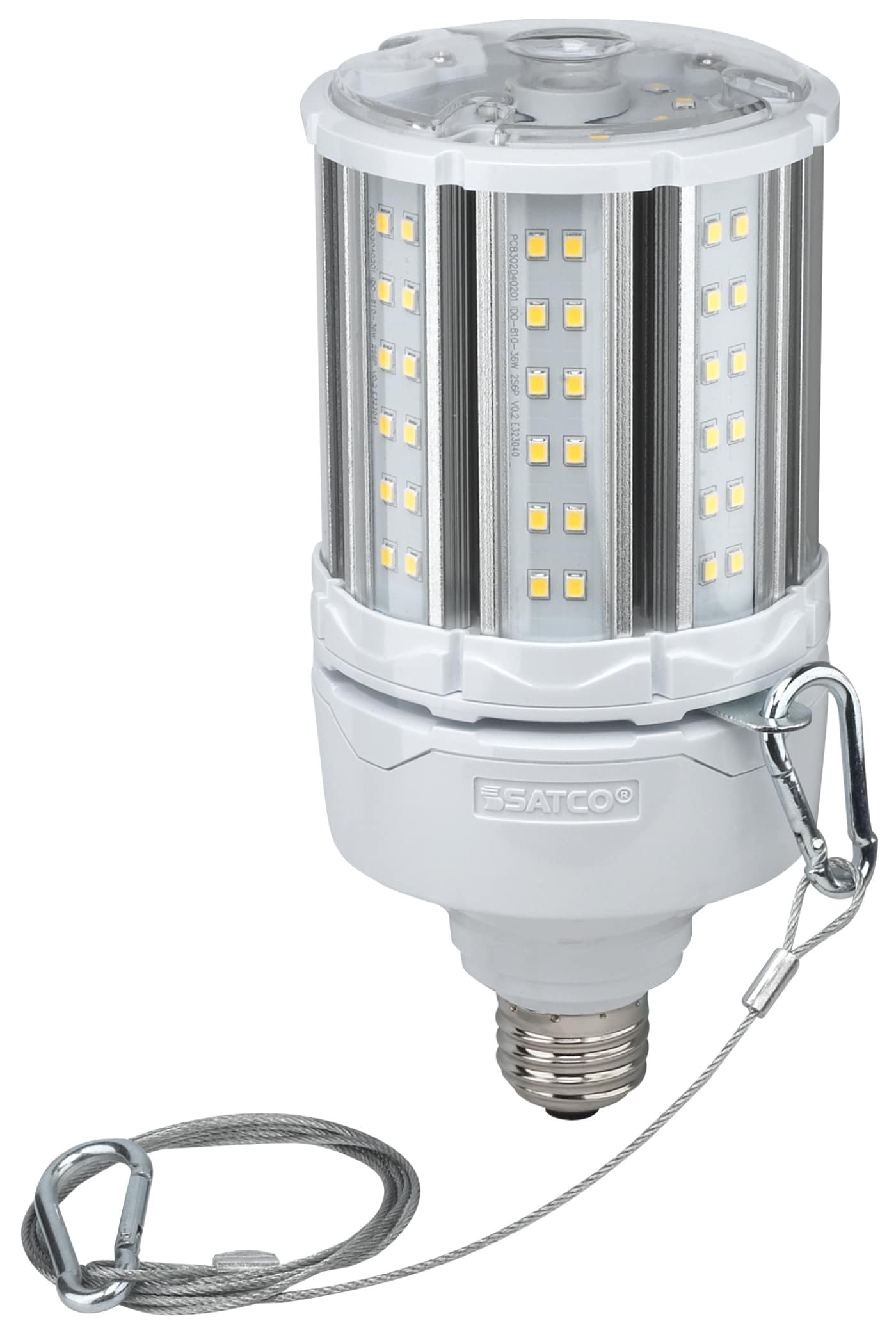

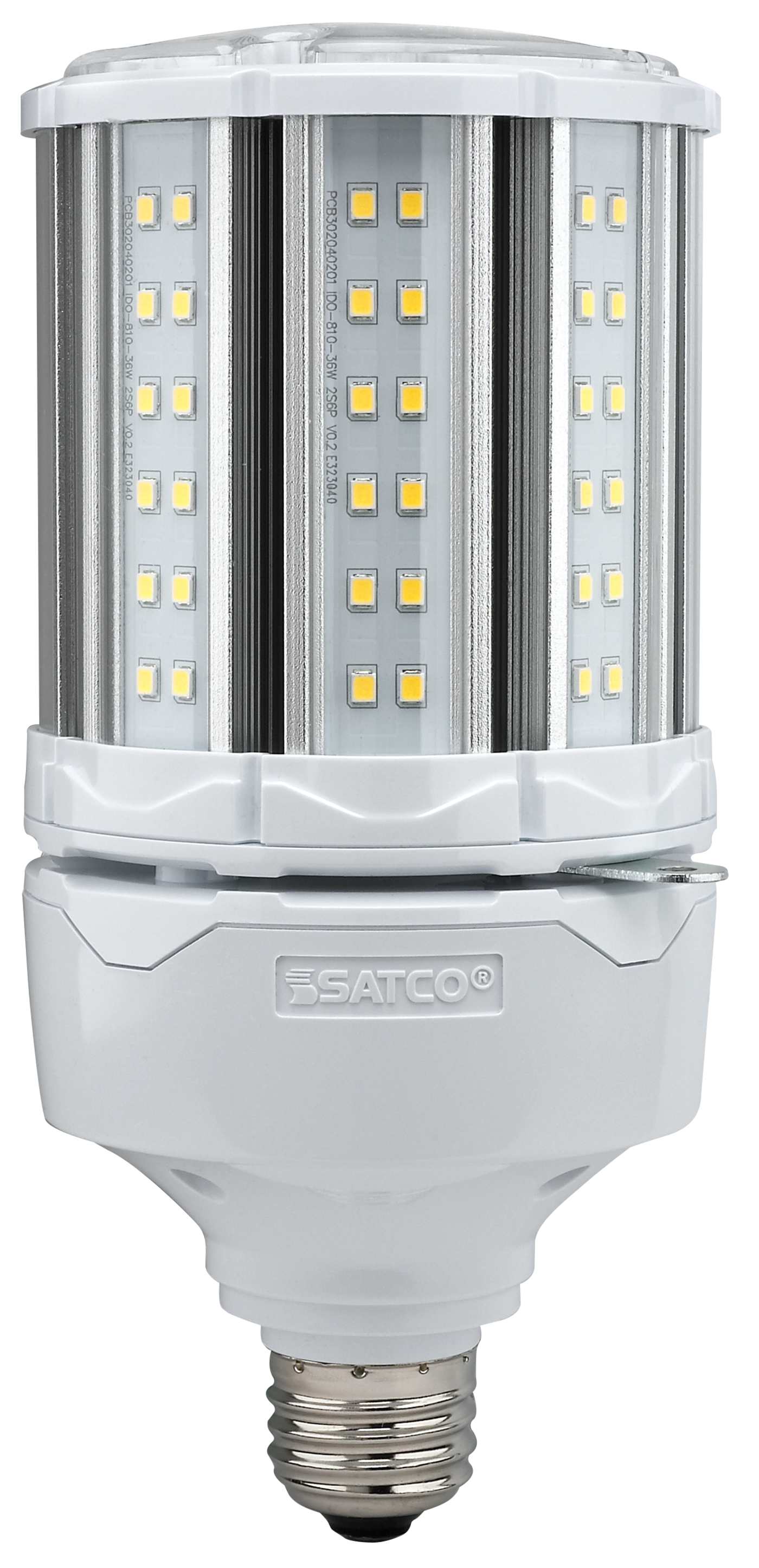

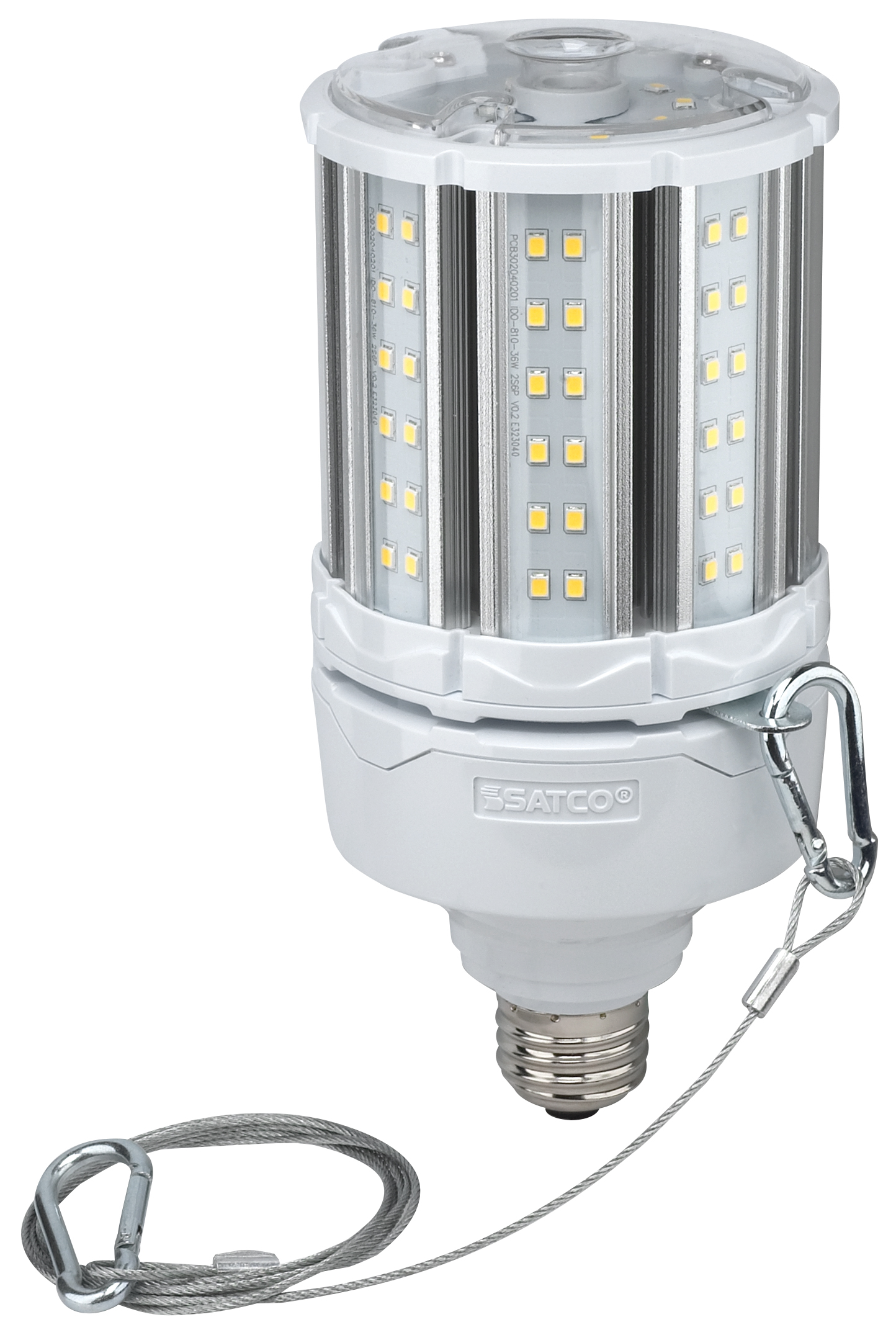

36W/LED/HID/2700K/100-277V E26 - S39672
36W/LED/HID/2700K/100-277V E26 - S39672
S39672

36W/LED/HID/2700K/100-277V E26

Discontinued - Suggested Replacement: S49672
  • 36 Watt LED HID Replacement
  • 2700K
  • Medium base
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

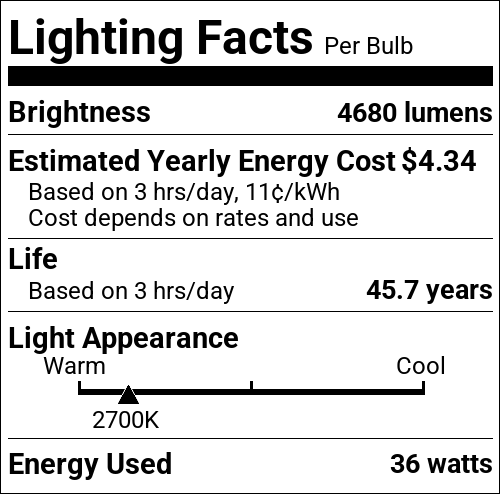

S39672 SpecificationsS39672 Photometrics.iesS39672 Instructions.pdfS39672 Lighting Facts Label
Tools
Lighting Layout Analysis For S39672
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
36 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
MaterialAluminum / Plastic
Fixture TypeCorncob
Product NotesDLC 5.1 replacement S23149; Non-DLC replacement S49672
StatusObsolete
StyleContemporary
Most Current GenerationS49672
Surge ProtectionBuilt-in surge protection - 4KV
Working VoltageAC 100-277V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoEmits no UV light; Contains no Mercury (Hg); Acceptable for use in food prep areas
Amps0.360-0.130A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPlastic (PS)
LensedYes
Minimum Compartment SizeLength: 8.5 in. Width: 6 in. Depth: 6 in.
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Shatter Proof TypeShatter resistant materials
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv55W
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
HID Equivalent150W
Lumens4680L
Volts120V-277V
Watts36W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhite
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps3.34
MOL7.34
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP64
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923306723
Case Cube1.7418
Case Height10.43
Case Length19.29
Case Quantity12
Case UPC10045923306720
Case Weight24.25
Case Width14.96
EA Cube0.1238
EA Height9.6
EA Length4.72
EA Quantity1
EA Weight1.97
EA Width4.72
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length7.34
Web Width3.34
