» S8688

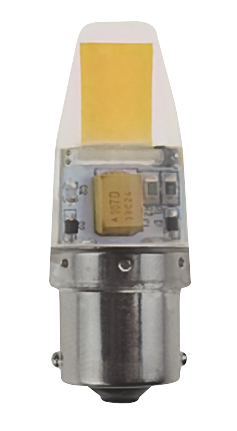

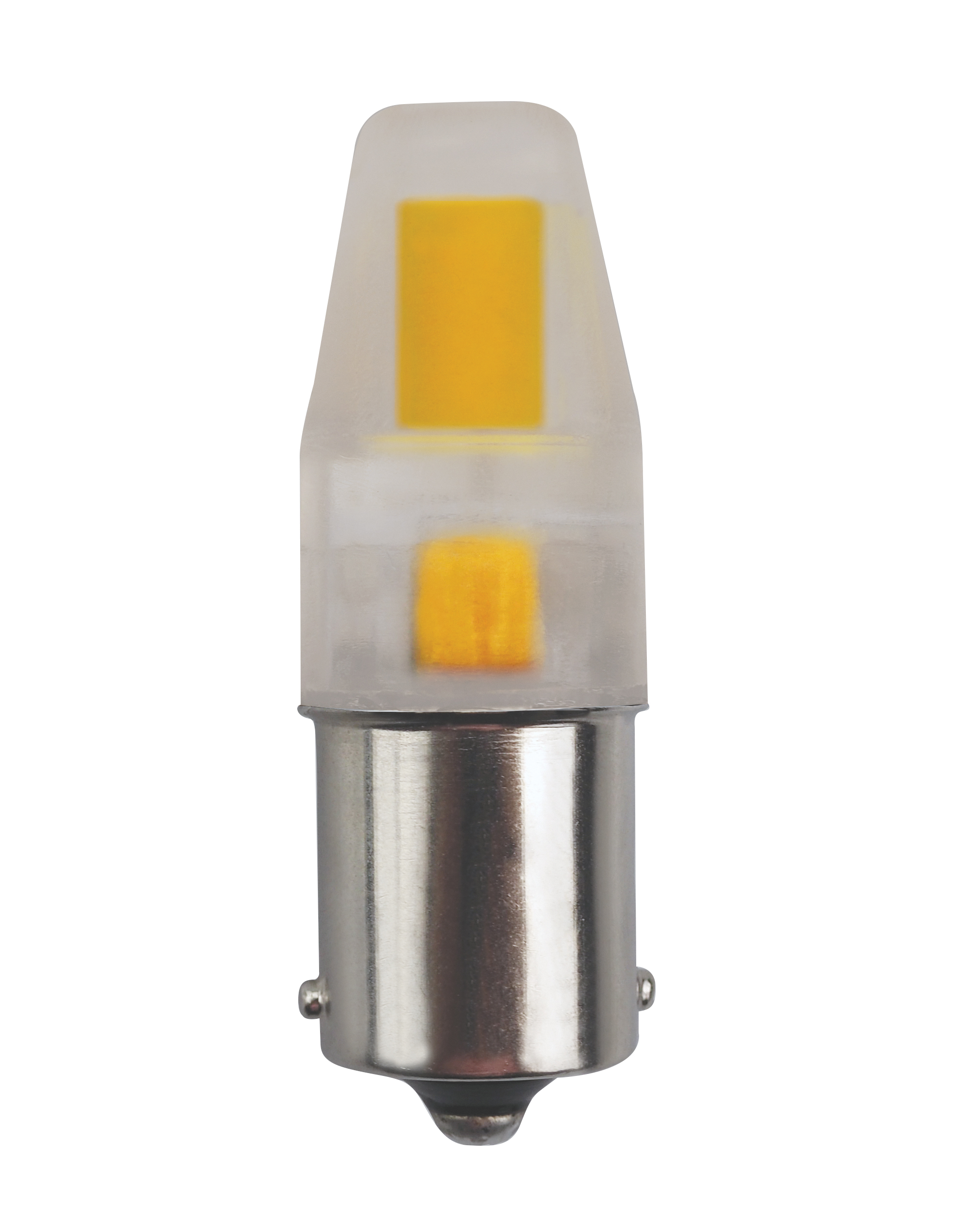

S8688 LED/3W/BA15S/CL/3K/12V

S8688

LED/3W/BA15S/CL/3K/12V

3W; LED; 3000K; Clear; S.C Bayonet Base; 12 Volt AC/DC


Lights

S8688

LED/3W/BA15S/CL/3K/12V

3W; LED; 3000K; Clear; S.C Bayonet Base; 12 Volt AC/DC

Specifications

General
StatusActive
SubstituteS12358
Watts3W
Incandescent Equivalent25W
HID Equivalent35W
Volts12V
ShapeT4
BaseBayonet Single Contact
ANSI BaseBA15s
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI80
Lumens330L
Beam Spread360
DimmableYes-Dimmable
Hours Rated25000
Product CategoryMiniature
Lamp TypeMiniature
TechnologyLED
Electrical
Watts3W
Incandescent Equivalent25W
HID Equivalent35W
Volts12V
CCT (Kelvin)3000K
TemperatureWarm White
CRI80
Lumens330L
Beam Spread360
DimmableYes-Dimmable
Hours Rated25000
Physical
MOL1.63
MOD0.75
ShapeT4
BaseBayonet Single Contact
ANSI BaseBA15s
FinishFrost
Additional Information
Rated For Enclosed FixtureYes
Warranty3 Year Limited
Compliance
Safety ListingcETLus
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California Prop 65
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923086885
Each Quantity1
Each Length (in.)0.88
Each Width (in.)0.88
Each Height (in.)2.00
Each Weight (lb.)0.02
Each Cube (CuFt.)0.0009
Pack TypeBox
Inner UPC20045923086889
Inner Quantity20
Inner Length (in.)3.50
Inner Width (in.)3.50
Inner Height (in.)2.13
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0151
Case UPC10045923086882
Case Quantity200
Case Length (in.)17.38
Case Width (in.)4.00
Case Height (in.)5.13
Case Weight (lb.)4.04
Case Cube (CuFt.)0.2064
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
