» S8690

Discontinued – Suggested Replacement: S28690

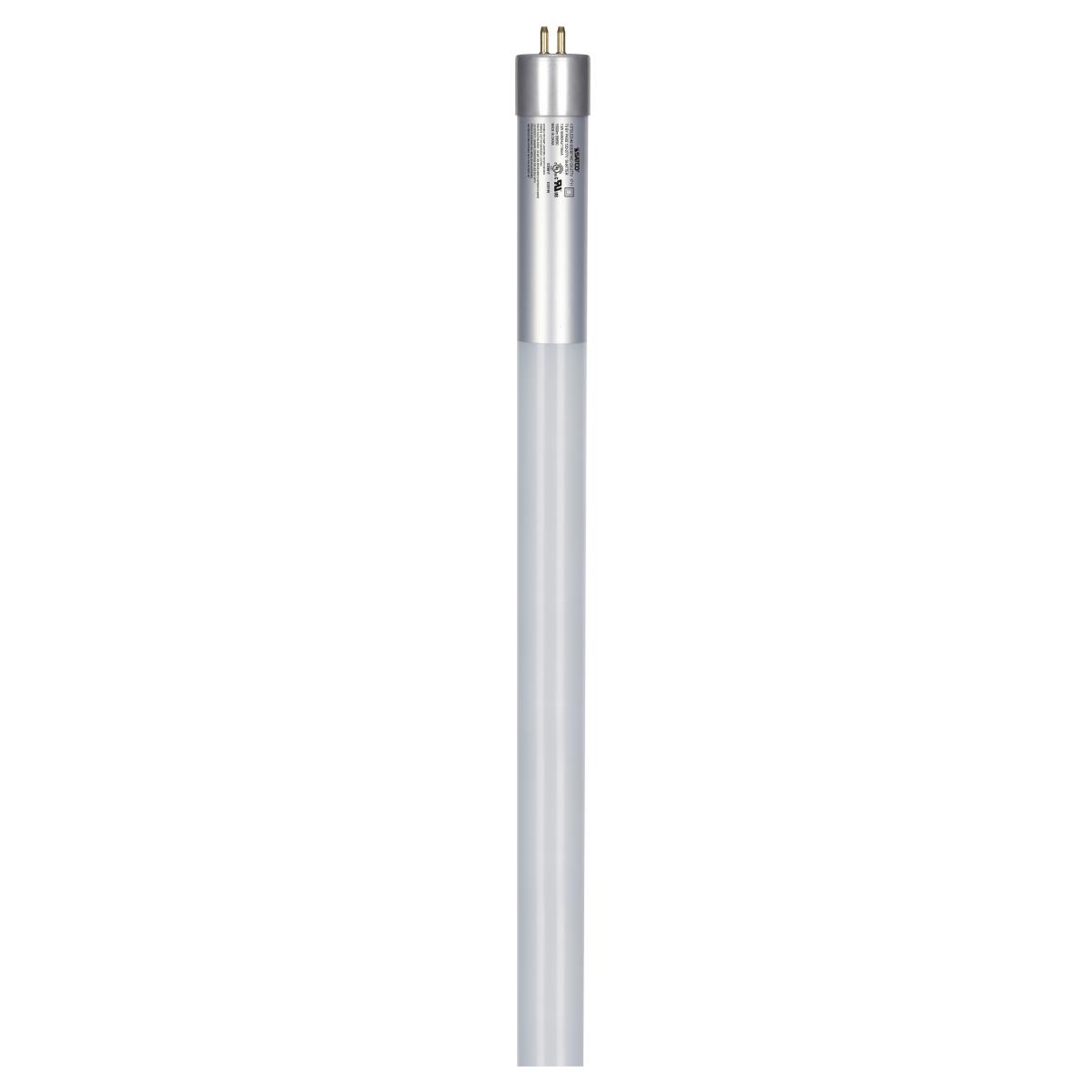

S8690 13T5/LED/46-835/BP/HE/120-277V

S8690

13T5/LED/46-835/BP/HE/120-277V

13 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1600 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single Ended Wiring


Lights

S8690

13T5/LED/46-835/BP/HE/120-277V

13 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1600 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single Ended Wiring

Specifications

General
StatusDiscontinued
SubstituteS28690
Watts13W
Incandescent Equivalent100W
Fluorescent Equivalent28W
Volts120V-277V
Ballast TypeType B
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI83

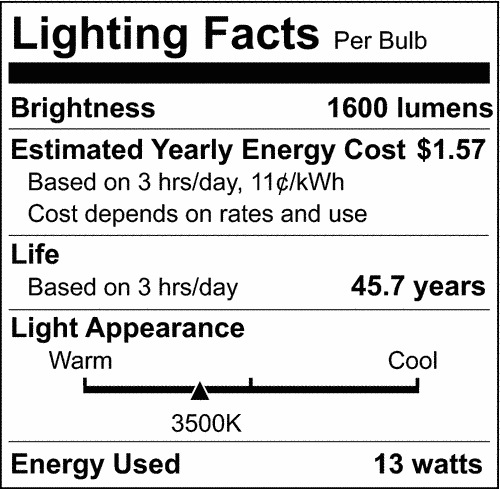

Lumens1600L
Beam Spread240
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts13W
Incandescent Equivalent100W
Fluorescent Equivalent28W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI83
Lumens1600L
Beam Spread240
DimmableNon-Dimmable
Power Factor0.91
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD0.88
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrost
MaterialGlass
Lens FinishFrost
Housing ColorSilver
Additional Information
Shatter-Proof TypeYes
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923086908
Each Quantity1
Each Length (in.)45.80
Each Width (in.)0.80
Each Height (in.)0.80
Each Weight (lb.)0.40
Each Cube (CuFt.)0.0170
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923086905
Case Quantity25
Case Length (in.)48.10
Case Width (in.)5.20
Case Height (in.)5.20
Case Weight (lb.)12.90
Case Cube (CuFt.)0.7527
