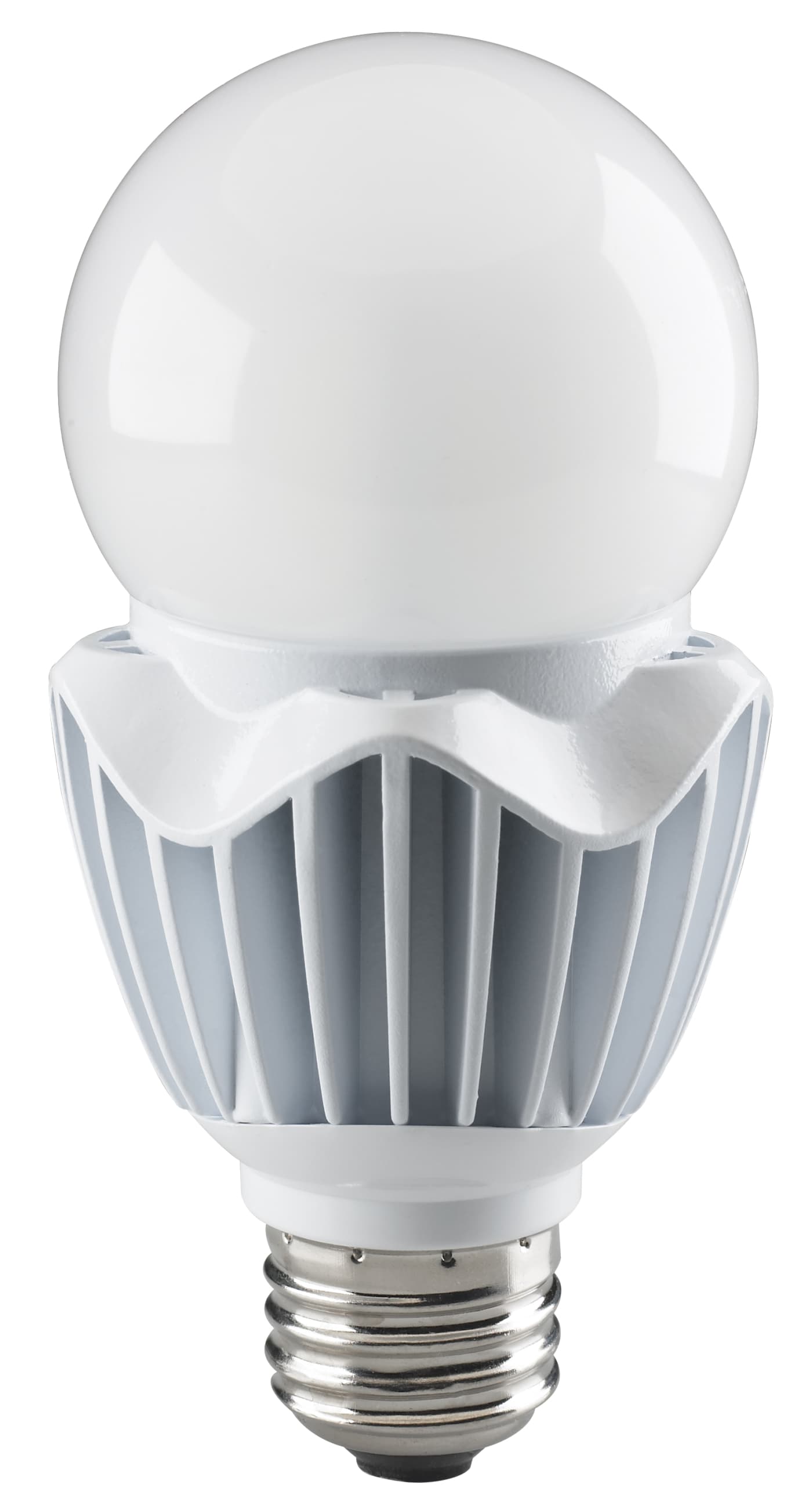

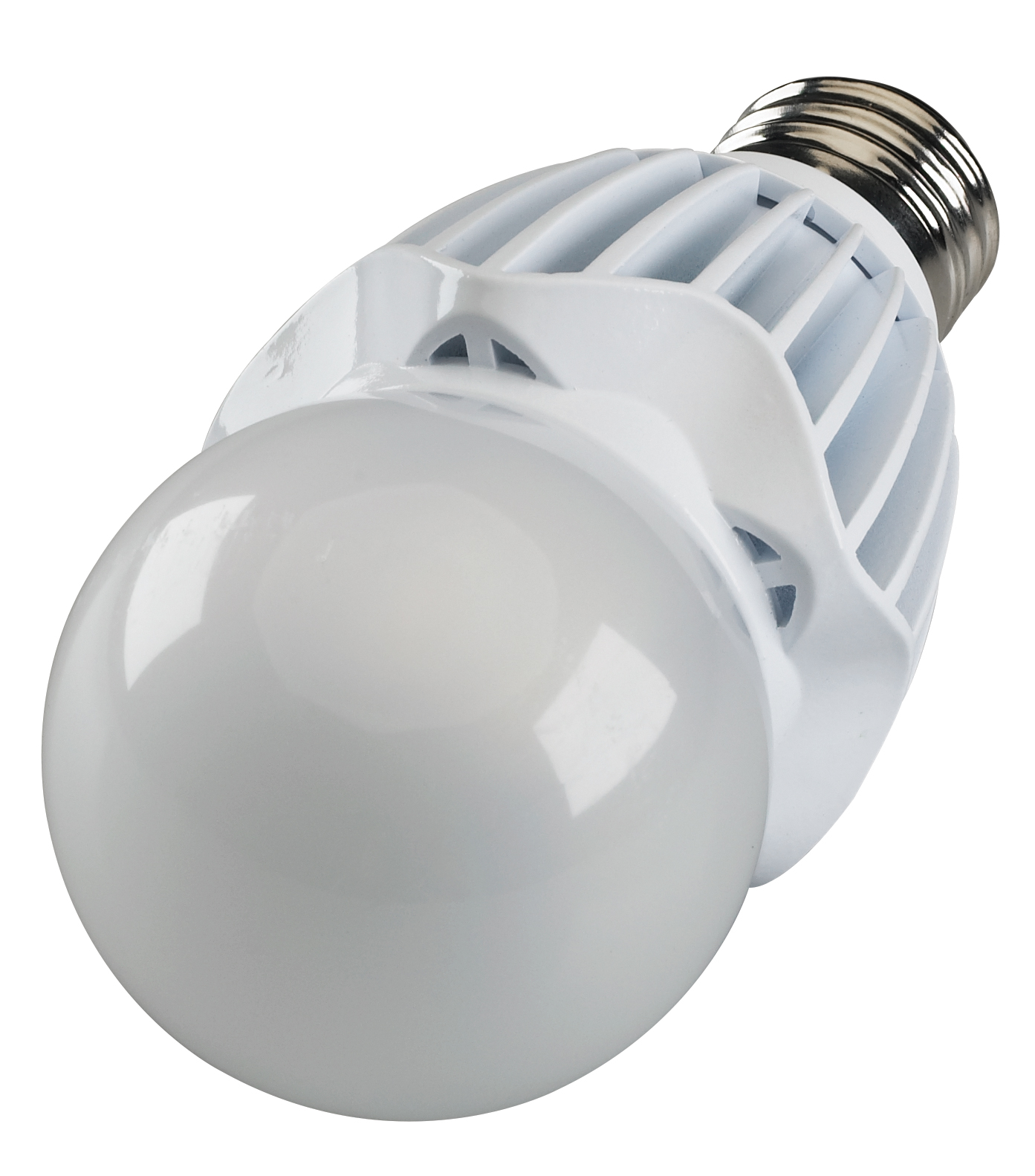

S8735

20WA21/LED/27K/120V/DIM

Discontinued - Suggested Replacement: S28737
  • 20 Watt LED A21
  • High lumen output
  • 2700K
  • Medium base
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S8735 SpecificationsSA2218 HiProLED A21Lamps PI 3 21
Tools
Lighting Layout Analysis For S8735
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
20 Watt LED A21; High lumen output; 2700K; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Candle Power185.0
Lamp FilamentLED
MaterialDie-Cast Aluminum / PC
Fixture TypeType A
StatusDiscontinued
StyleTraditional
Most Current GenerationS28737
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.167A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Minimum Compartment SizeLength: 8.50 in. Width: 6 in. Depth: 6 in.
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)280
Color TempWarm White
CRI80+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens2350L
Volts120v
Watts20W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA21
MOD Lamps2.63
MOL5.0
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - R8 <72
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923087356
Case Cube1.5379
Case Height15.35
Case Length15.16
Case Quantity24
Case UPC10045923087353
Case Weight15.5
Case Width11.42
EA Cube0.0242
EA Height5.5
EA Length2.76
EA Quantity1
EA Weight0.59
EA Width2.76
Inner Cube0.6205
Inner Height6.89
Inner Length14.37
Inner Quantity12
Inner UPC20045923087350
Inner Weight7.2
Inner Width10.83
Pack TypeBox
Web Length5.0
Web Width2.63
