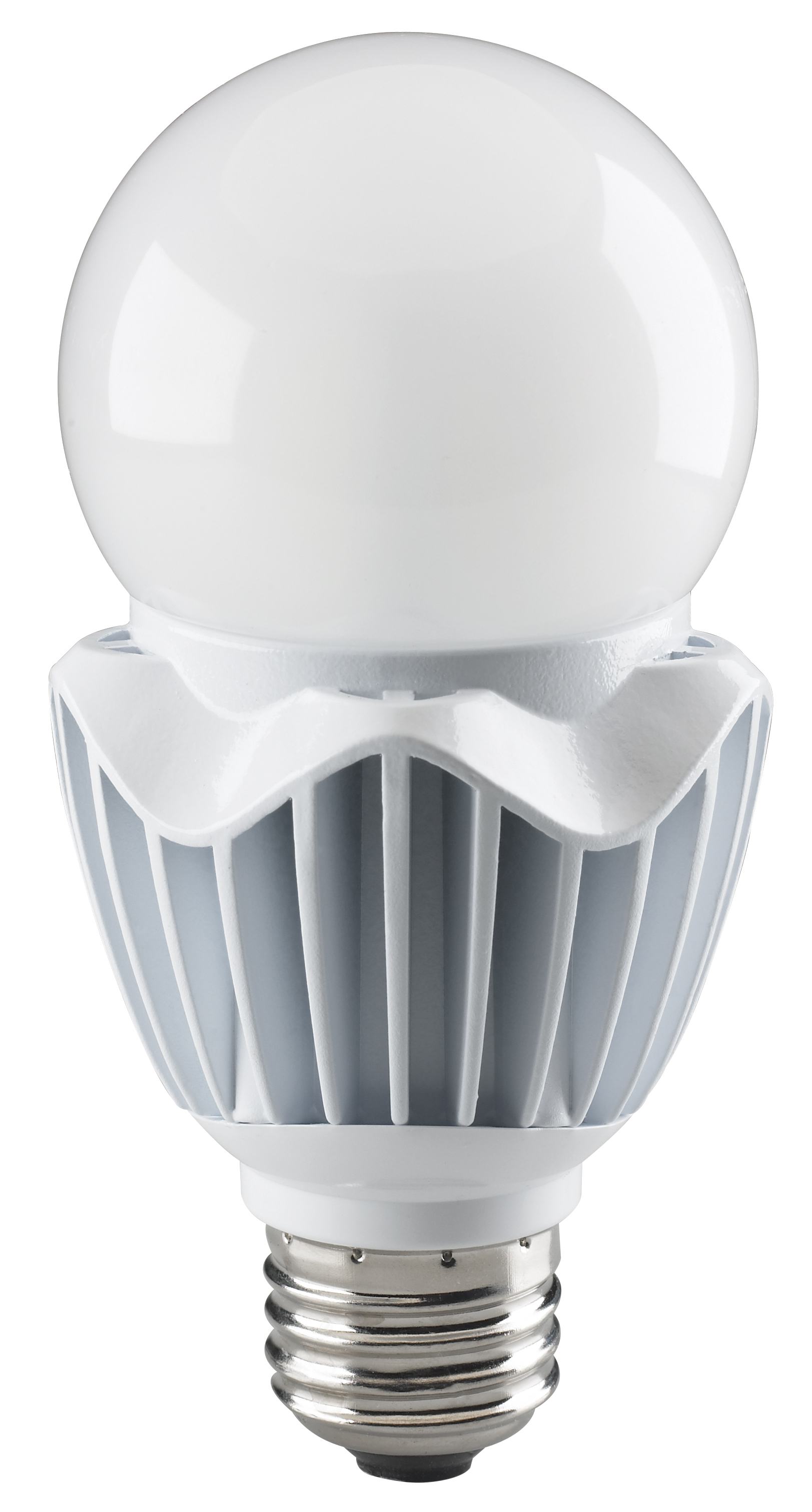

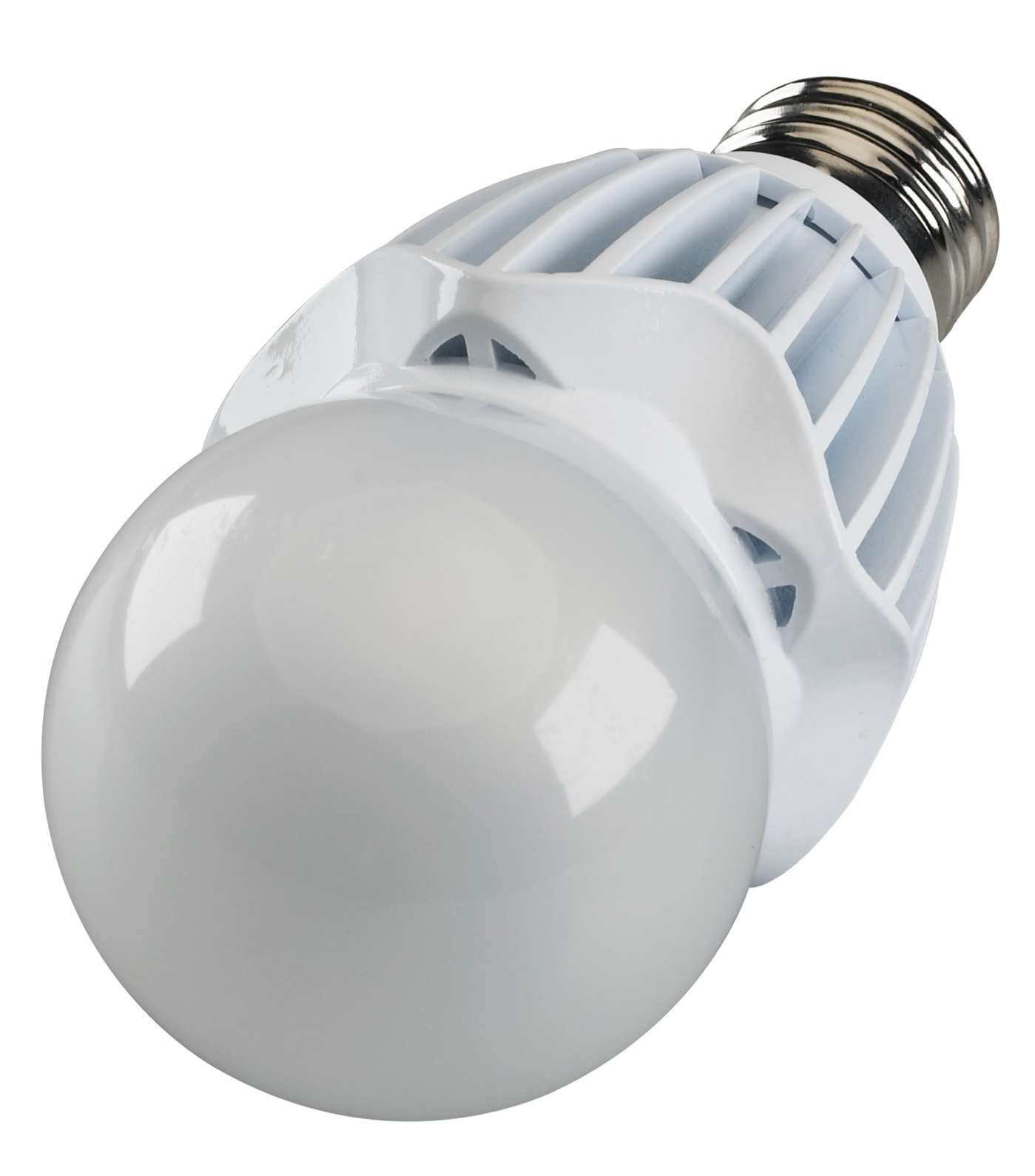

S8737 20WA21/LED/27K/120-277V

S8737

20WA21/LED/27K/120-277V

20 Watt - LED A21 High lumen output; 2700K; Medium base; 120-277 Volt


Lights

S8737

20WA21/LED/27K/120-277V

20 Watt - LED A21 High lumen output; 2700K; Medium base; 120-277 Volt

Specifications

General
StatusTransitioning
SubstituteS28737
Watts20W
Incandescent Equivalent125W
Volts120V-277V
ShapeA21
BaseMedium
ANSI BaseE26
FinishFrost
CCT (Kelvin)2700K
TemperatureWarm White
CRI80
Lumens2450L
Beam Spread280
DimmableNon-Dimmable
Hours Rated25000
Product CategoryType A
Lamp TypeType A
TechnologyLED
Electrical
Watts20W
Incandescent Equivalent125W
Volts120V-277V
Operating Frequency50/60Hz
CCT (Kelvin)2700K
TemperatureWarm White
CRI80
Lumens2450L
Candlepower190
Beam Spread280
Power Factor>0.9
Hours Rated25000
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL5
MOD2.63
ShapeA21
BaseMedium
ANSI BaseE26
FinishFrost
Housing ColorWhite
Weight (lb.)0.34
Additional Information
Rated For Enclosed FixtureYes
Min Compartment SizeLength: 8.50 in. Width: 6 in. Depth: 6 in.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarYes
ES Unique IDESID-2390499
CA T20 / T24 RationaleNon-Compliant - R8 <72
California StatusNon-Compliant
Title 20 / 24 StatusNon-Compliant
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923087370
Each Quantity1
Each Length (in.)2.76
Each Width (in.)2.76
Each Height (in.)5.50
Each Weight (lb.)0.59
Each Cube (CuFt.)0.0242
Pack TypeBox
Inner UPC20045923087374
Inner Quantity12
Inner Length (in.)14.37
Inner Width (in.)10.83
Inner Height (in.)6.89
Inner Weight (lb.)7.20
Inner Cube (CuFt.)0.6205
Case UPC10045923087377
Case Quantity24
Case Length (in.)15.16
Case Width (in.)11.42
Case Height (in.)15.35
Case Weight (lb.)15.50
Case Cube (CuFt.)1.5379
