» S8738

Discontinued – Suggested Replacement: S28737

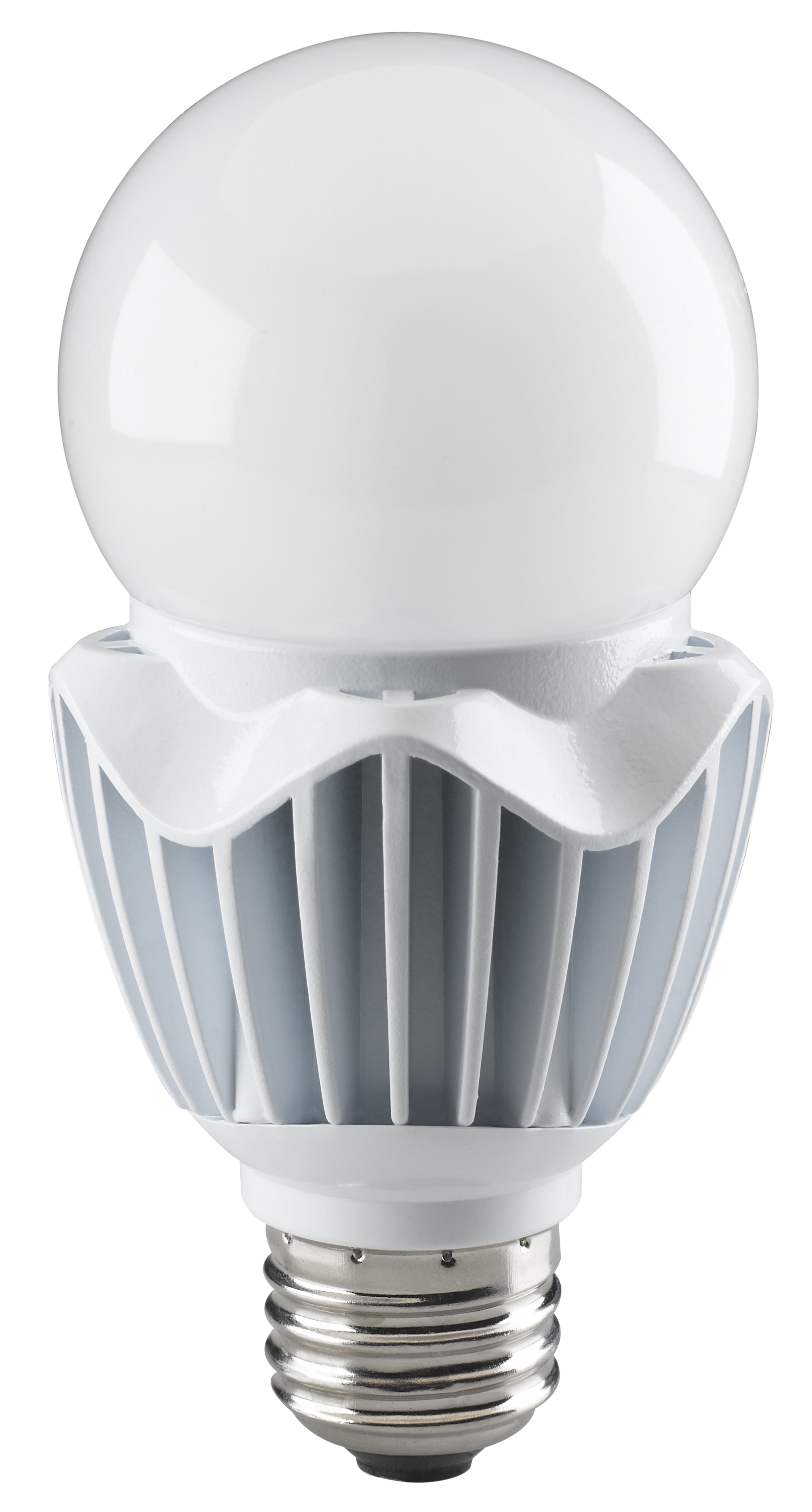

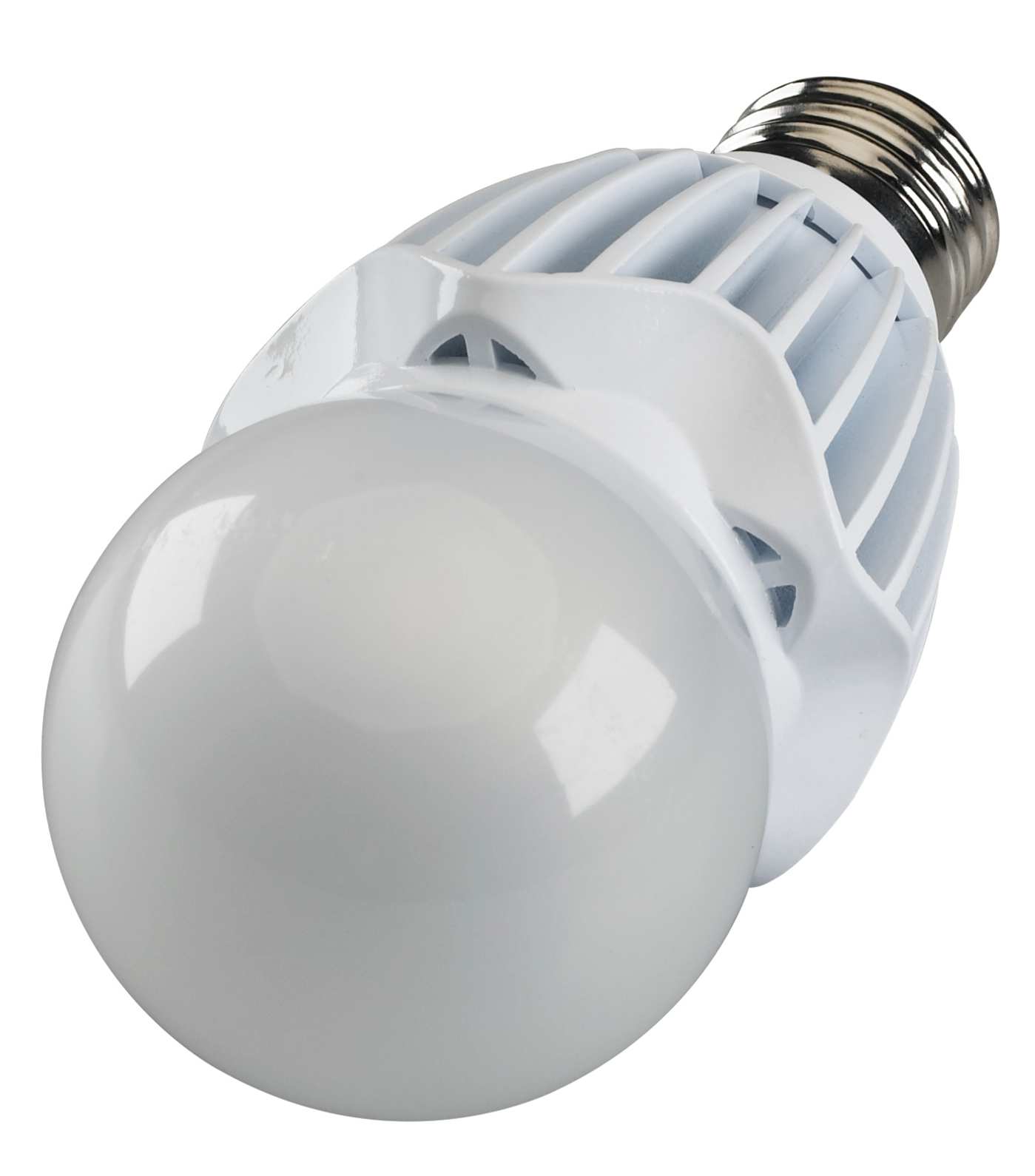

S8738 20WA21/LED/5K/120-277V

S8738

20WA21/LED/5K/120-277V

20 Watt - LED A21 High lumen output; 5000K; Medium base; 120-277 Volt


Lights

S8738

20WA21/LED/5K/120-277V

20 Watt - LED A21 High lumen output; 5000K; Medium base; 120-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS28737
Watts20W
Incandescent Equivalent150W
Volts120V-277V
ShapeA21
BaseMedium
ANSI BaseE26
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80

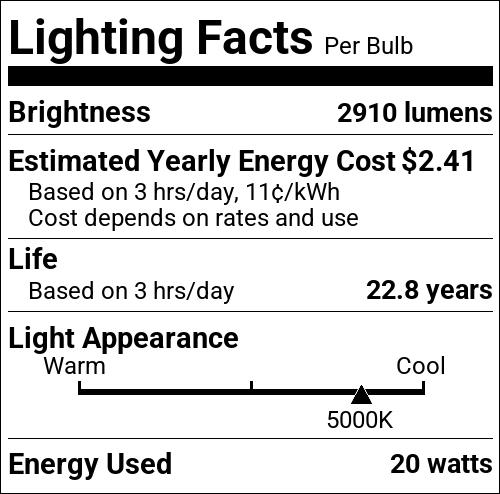

Lumens2910L
Beam Spread280
DimmableNon-Dimmable
Hours Rated25000
Product CategoryType A
Lamp TypeType A
TechnologyLED
Electrical
Watts20W
Incandescent Equivalent150W
Volts120V-277V
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens2910L
Candlepower209
Beam Spread280
Power Factor>0.9
Hours Rated25000
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL5
MOD2.63
ShapeA21
BaseMedium
ANSI BaseE26
FinishFrost
Housing ColorWhite
Weight (lb.)0.34
Additional Information
Rated For Enclosed FixtureYes
Min Compartment SizeLength: 8.50 in. Width: 6 in. Depth: 6 in.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarYes
ES Unique IDESID-2390500
CA T20 / T24 RationaleExempt - >2600 Lumens
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923087387
Each Quantity1
Each Length (in.)2.76
Each Width (in.)2.76
Each Height (in.)5.50
Each Weight (lb.)0.59
Each Cube (CuFt.)0.0242
Pack TypeBox
Inner UPC20045923087381
Inner Quantity12
Inner Length (in.)14.37
Inner Width (in.)10.83
Inner Height (in.)6.89
Inner Weight (lb.)7.20
Inner Cube (CuFt.)0.6205
Case UPC10045923087384
Case Quantity24
Case Length (in.)15.16
Case Width (in.)11.42
Case Height (in.)15.35
Case Weight (lb.)15.50
Case Cube (CuFt.)1.5379
