SKU S8759 - Image 1
S8759

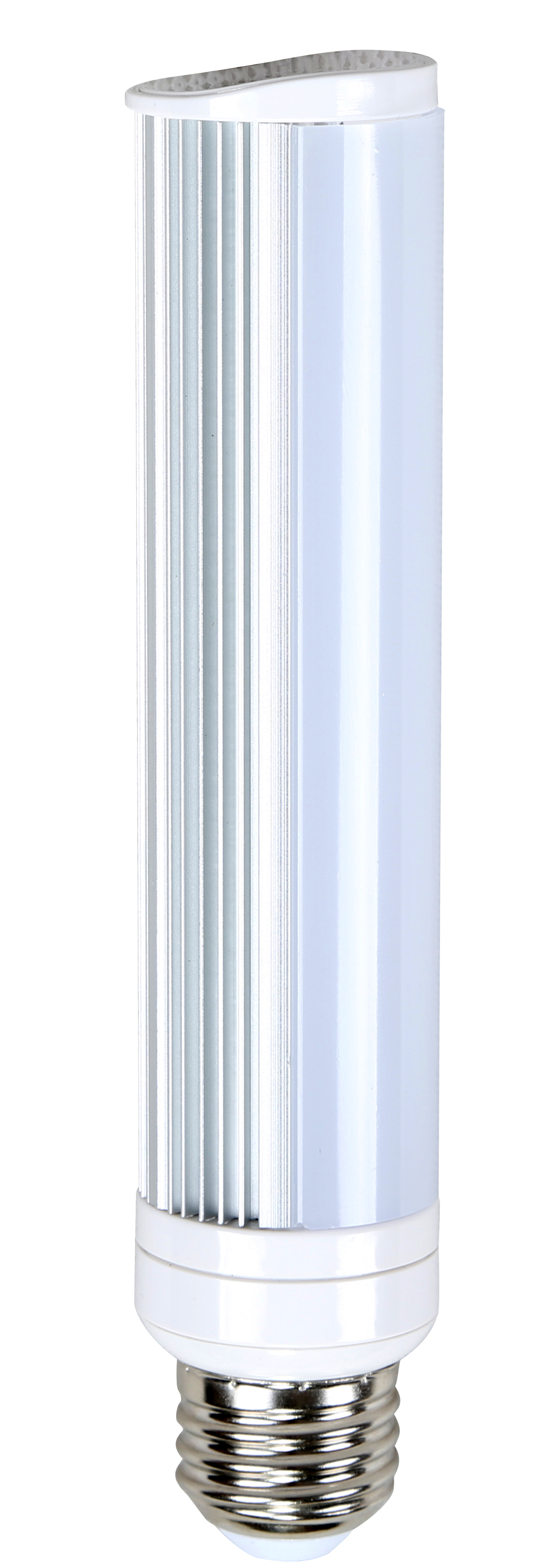

8W/H/LED/CFL/850/E26/120-277V

Suggested Replacement: S8760
  • 8 Watt LED PL Medium base
  • 5000K
  • Type B
  • Ballast Bypass
  • 960 Lumens
  • 50000 Average rated hours
  • 120 deg. Beam Angle
  • 120-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S8759 SpecificationsS8759 InstructionsSA2119 LED-CFL Pi Sheet 4.17
Tools
Lighting Layout Analysis For S8759
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
8 Watt LED PL Medium base; 5000K; Type B; Ballast Bypass; 960 Lumens; 50000 Average rated hours; 120 deg. Beam Angle; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
Fixture TypePL
StatusTransitioning
StyleTransitional
Most Current GenerationS8760
Surge ProtectionBuilt-in-surge protection - 0.5KV
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.067-0.029A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv13W/18W
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens960L
Volts120V-277V
Watts8W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypePL
MOD Lamps1.38
MOL6.88
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - R8 <72
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923087592
Case Cube0.9555
Case Height9.1
Case Length18.9
Case Quantity50
Case UPC10045923087599
Case Weight15.9
Case Width9.6
EA Cube0.0115
EA Height1.65
EA Length7.28
EA Quantity1
EA Weight0.3
EA Width1.65
Inner Cube0.1419
Inner Height7.7
Inner Length9.1
Inner Quantity10
Inner UPC20045923087596
Inner Weight3.0
Inner Width3.5
Pack TypeBox
Web Length6.88
Web Width1.38
