| Company | SATCO |
|---|---|
| Dimmable Text | Reverse Phase or Phase Selectable |
| Lamp Filament | LED |
| Material | Silicon |
| Fixture Type | Miniature |
| Status | Discontinued |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | No Finish |
| Amps | 0.250A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Clear |
| Lensed | Yes |
| Operating Position | Universal |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Incandescent Equivalent | 25W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 25000 |
| Beam Angle (degree) | 360 |
| Color Temp | Warm White |
| CRI | 80+ |
| Dimming Type | 120V only, Phase cut |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| HID Equivalent | 35W |
| Lumens | 300L |
| Volts | 12V |
| Watts | 3W |
| Lamp Base | Bi Pin G6.35 |
|---|---|
| Finish | Clear |
| ANSI Base | G6.35 |
| Lamp Type | T4 |
| MOD Lamps | 0.5 |
| MOL | 1.63 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cETLus |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923095443 |
|---|---|
| Case Cube | 0.1911 |
| Case Height | 4.75 |
| Case Length | 17.38 |
| Case Quantity | 200 |
| Case UPC | 10045923095440 |
| Case Weight | 4.99 |
| Case Width | 4.0 |
| EA Cube | 0.0006 |

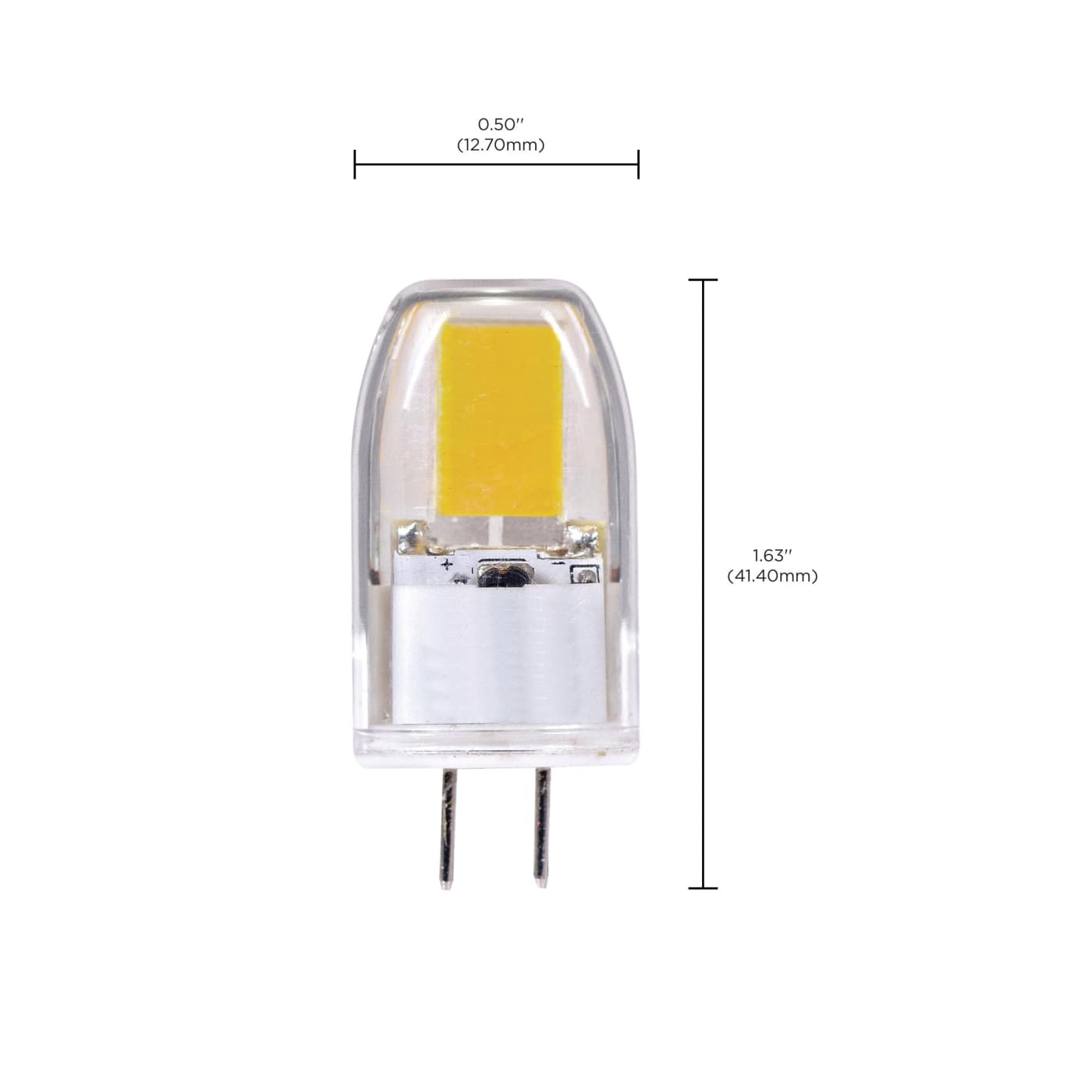

| EA Height | 1.75 |
| EA Length | 0.63 |
| EA Quantity | 1 |
| EA Weight | 0.02 |
| EA Width | 0.88 |
| Inner Cube | 0.0142 |
| Inner Height | 2.0 |
| Inner Length | 3.63 |
| Inner Quantity | 20 |
| Inner UPC | 20045923095447 |
| Inner Weight | 0.46 |
| Inner Width | 3.38 |
| Pack Type | Box |
| Web Length | 1.63 |
| Web Width | 0.5 |
