» S9926

Substitute S29926

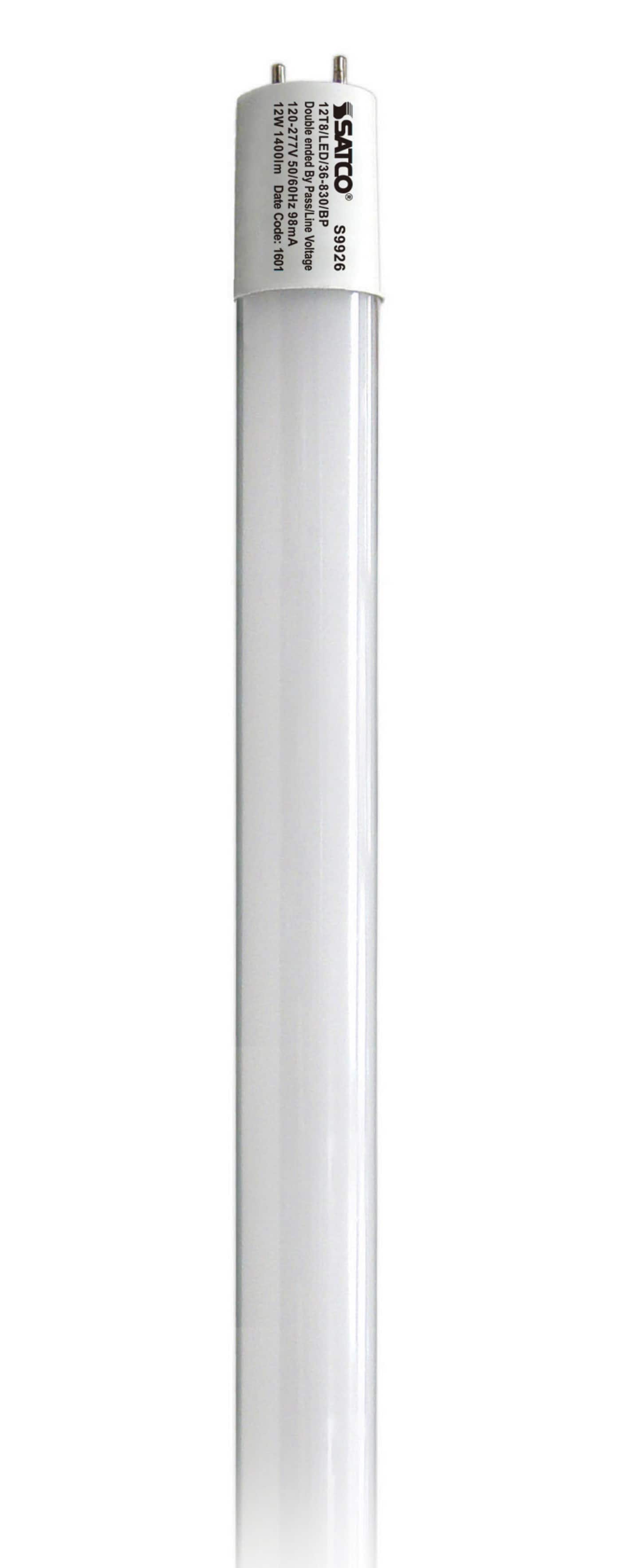

S9926 12T8/LED/36-830/BP 120-277V

S9926

12T8/LED/36-830/BP 120-277V

12 Watt T8 LED; Medium bi-pin base; 3000K; 50000 Average rated hours;Type B Ballast Bypass; 1400 Lumens

Lights

S9926

12T8/LED/36-830/BP 120-277V

12 Watt T8 LED; Medium bi-pin base; 3000K; 50000 Average rated hours;Type B Ballast Bypass; 1400 Lumens

Specifications

General
StatusDiscontinued
SubstituteS49934
Watts12W
Fluorescent Equivalent25W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1400L
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts12W
Fluorescent Equivalent25W
Volts120V-277V
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1400L
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL36
MOD1
Nominal Length36
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
Lens FinishFrost
Additional Information
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923099267
Each Quantity1
Each Length (in.)35.70
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.39
Each Cube (CuFt.)0.0207
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099264
Case Quantity10
Case Length (in.)36.40
Case Width (in.)6.30
Case Height (in.)3.00
Case Weight (lb.)4.60
Case Cube (CuFt.)0.3981
