S16501 FC8T9/LED/CIR/840/BP

S16501

FC8T9/LED/CIR/840/BP

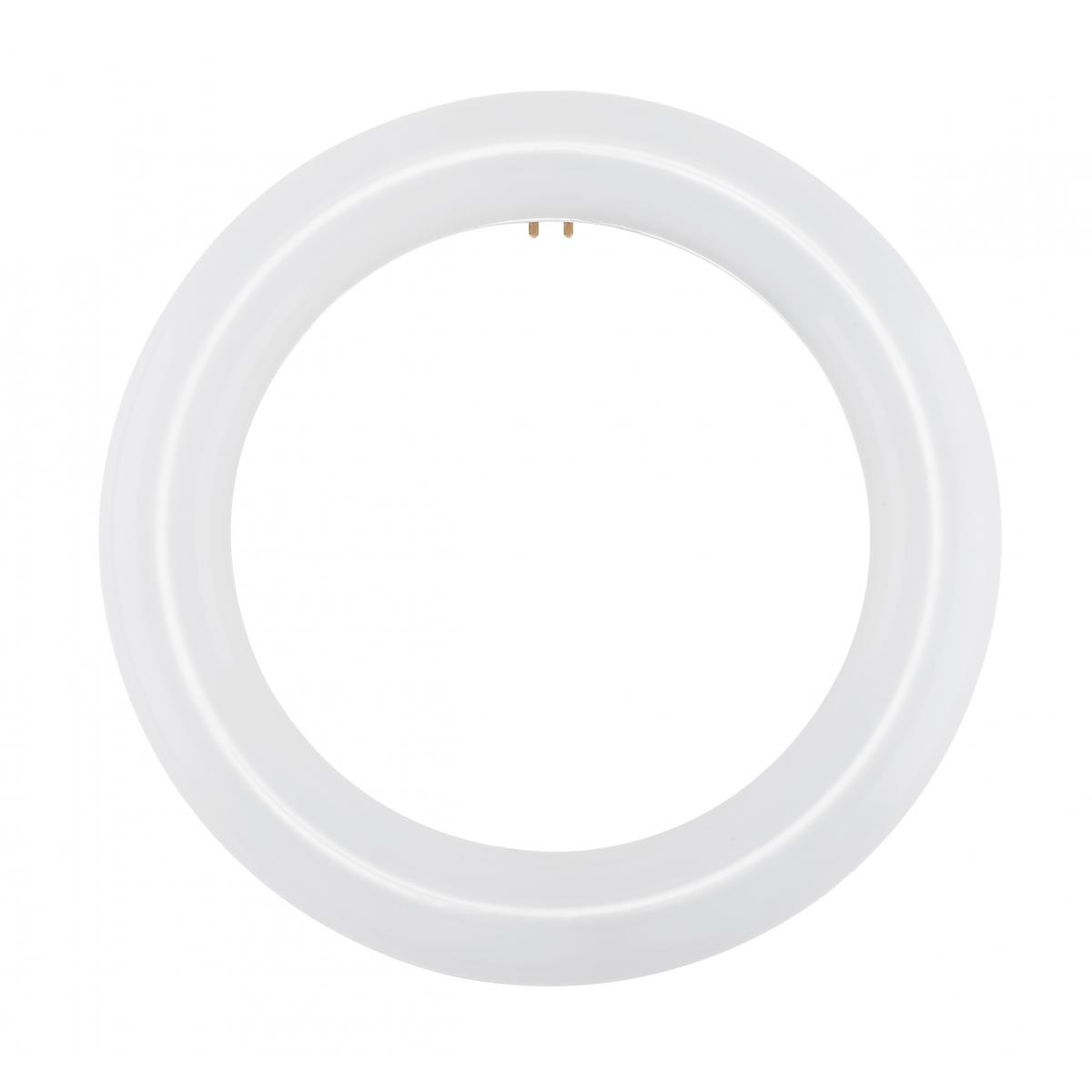

LED Circline; 11 Watt; T9; 4000K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass


Satco's 11 watt T9 LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 degrees and a temperature of 4000 kelvins, this lamp delivers 50,000 hours of cool white light.
  • MOL: 8.00 inches, MOD: 8.00 inches
  • Superior 80 CRI light quality, 1210 lumens, 4000K cool white light, with a 135 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 11 watt LED replaces 22 watt fluorescent
  • Frost finished circline plastic bulb with white housing
  • LED energy efficient fixture
  • 5 Year Limited Warranty
Lights

S16501

FC8T9/LED/CIR/840/BP

LED Circline; 11 Watt; T9; 4000K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass

Satco's 11 watt T9 LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 degrees and a temperature of 4000 kelvins, this lamp delivers 50,000 hours of cool white light.
  • MOL: 8.00 inches, MOD: 8.00 inches
  • Superior 80 CRI light quality, 1210 lumens, 4000K cool white light, with a 135 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 11 watt LED replaces 22 watt fluorescent
  • Frost finished circline plastic bulb with white housing
  • LED energy efficient fixture
  • 5 Year Limited Warranty

Specifications

General
StatusActive
Watts11W
Fluorescent Equivalent22W
Volts120V-277V
Ballast TypeType B
ShapeT9
BaseG10q (4-Pin)
ANSI BaseG10q
Nominal Length8
FinishFrost
CCT (Kelvin)4000K
TemperatureCool White
CRI80
Lumens1210L
Beam Spread135
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCircline
Lamp TypeCircline
TechnologyLED
Electrical
Watts11W
Fluorescent Equivalent22W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI80
Lumens1210L
Beam Spread135
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
Nominal Length8
MOL8
MOD1.13
ShapeT9
BaseG10q (4-Pin)
ANSI BaseG10q
FinishFrost
Housing ColorWhite
Weight (lb.)0.24
Additional Information
Additional InfoReplaces 22W fluorescent Circlines
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcETLus - Classified
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California Prop 65
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923165016
Each Quantity1
Each Length (in.)1.38
Each Width (in.)8.25
Each Height (in.)8.25
Each Weight (lb.)0.24
Each Cube (CuFt.)0.0544
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923165013
Case Quantity12
Case Length (in.)18.50
Case Width (in.)9.10
Case Height (in.)9.50
Case Weight (lb.)2.88
Case Cube (CuFt.)0.9255
