Lights

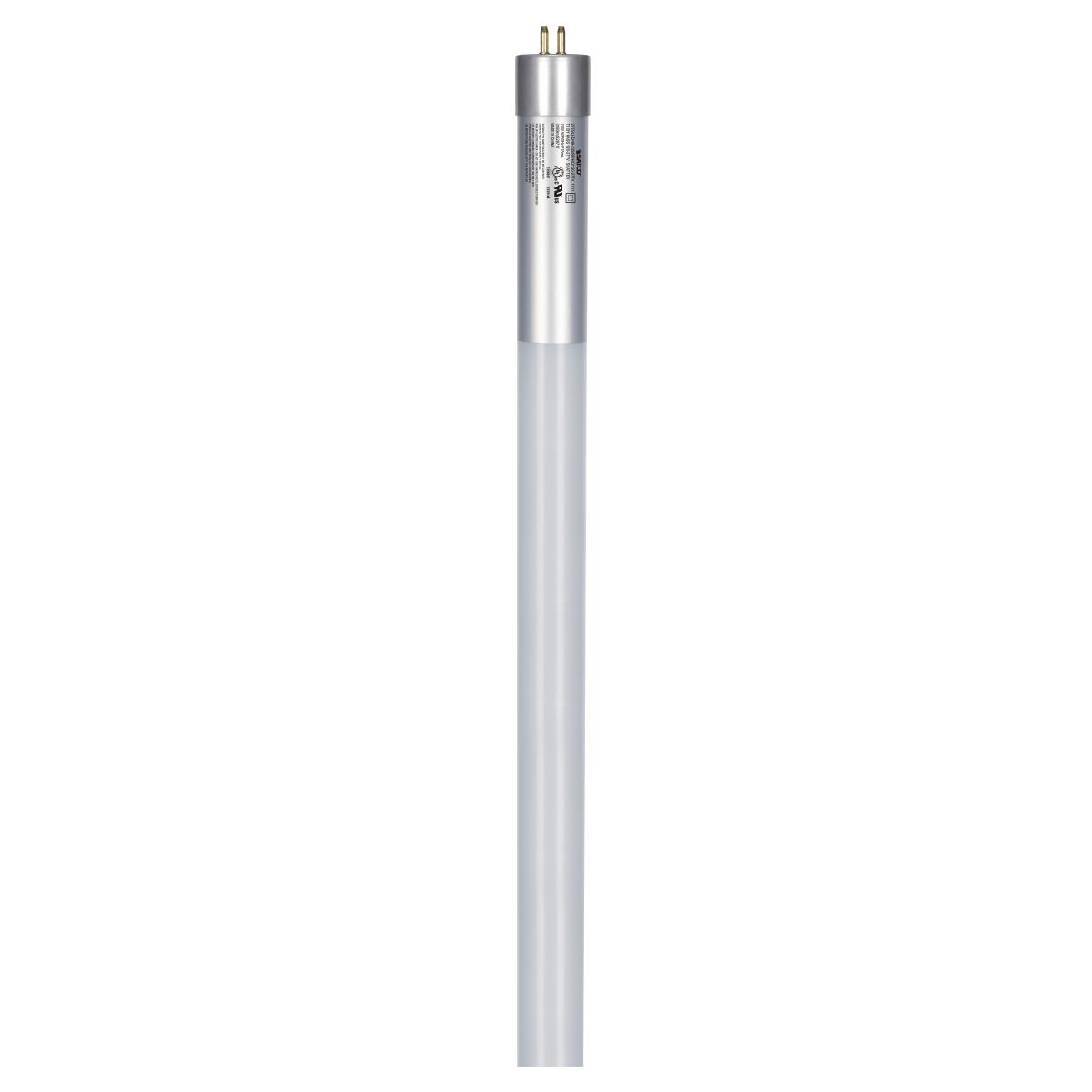

S29717

25T5/LED/46-835/BP/HO/120-277V

25 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 3200 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single Ended Wiring

S29717 25T5/LED/46-835/BP/HO/120-277V

S29717

25T5/LED/46-835/BP/HO/120-277V

25 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 3200 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single Ended Wiring

Specifications

General
StatusActive
Watts25
Volts120V-277V
Ballast TypeType B
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishFrosted
CCT (Kelvin)3500
TemperatureNeutral White
CRI83
Lumens3200
Beam Spread240
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts25
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3500
TemperatureNeutral White
CRI83
Lumens3200
Beam Spread240
DimmableNon-Dimmable
Power Factor0.95
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD0.88
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrosted
Additional Information
Shatter-Proof TypeYes
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPL3RGVA3G1QP
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923297175
Each Quantity1
Each Length (in.)45.80
Each Width (in.)0.80
Each Height (in.)0.80
Each Weight (lb.)0.40
Each Cube (CuFt.)0.0164
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923297172
Case Quantity25
Case Length (in.)48.10
Case Width (in.)5.20
Case Height (in.)5.20
Case Weight (lb.)12.90
Case Cube (CuFt.)0.7299
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
