Lights

S8726

6W/H/LED/CFL/830/2P/BP/120-277

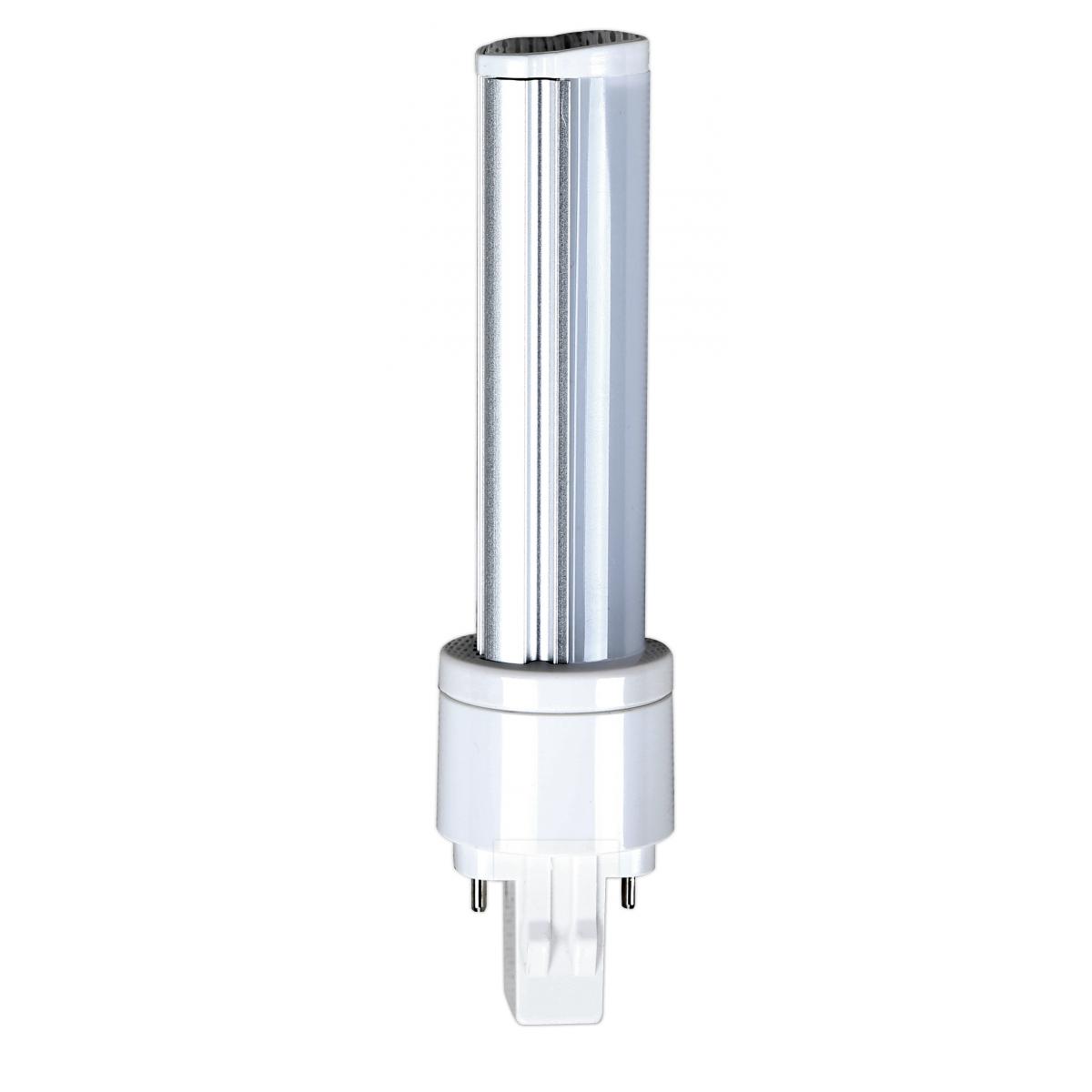

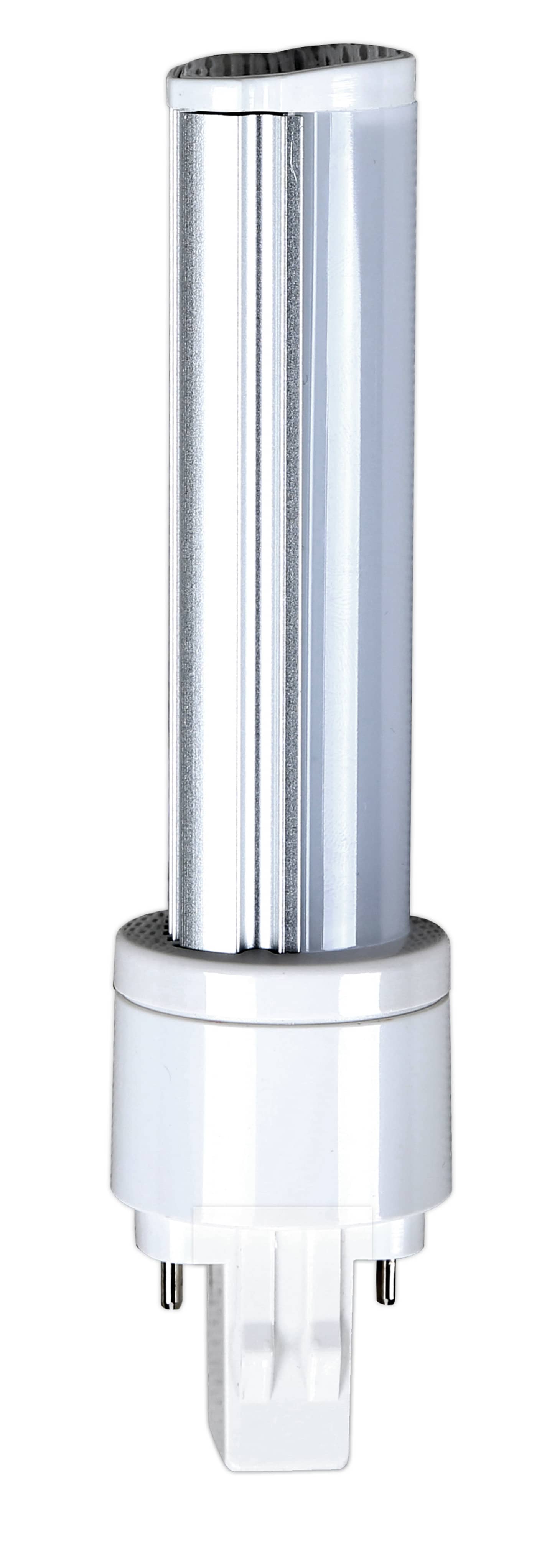

6 Watt LED PL 2-PIN; 3000K; 570 Lumens; GX23 base; 50000 Average rated hours; 120 deg. Beam Angle; 120-277 Volt; Type B; Ballast Bypass

S8726 6W/H/LED/CFL/830/2P/BP/120-277

S8726

6W/H/LED/CFL/830/2P/BP/120-277

6 Watt LED PL 2-PIN; 3000K; 570 Lumens; GX23 base; 50000 Average rated hours; 120 deg. Beam Angle; 120-277 Volt; Type B; Ballast Bypass

Specifications

General
StatusActive
Watts6
Fluorescent Equivalent13
Volts120V-277V
Ballast TypeType B
ShapePL
BaseGX23
ANSI BaseGX23
FinishFrosted White
CCT (Kelvin)3000
TemperatureWarm White
CRI83
Lumens570
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Lamp TypePL
TechnologyLED
Electrical
Watts6
Fluorescent Equivalent13
Volts120V-277V
Ballasting RequirementsBallastBypass
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3000
TemperatureWarm White
CRI83
Lumens570
Beam Spread120
DimmableNon-Dimmable
Dimming TypeN/A
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL5.81
MOD1.25
ShapePL
BaseGX23
ANSI BaseGX23
FinishFrosted White
Housing ColorWhite
Weight (lb.)0.16
Additional Information
Enclosure RatingEnclosed Rated Lamp
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923087264
Each Quantity1
Each Length (in.)6.38
Each Width (in.)1.65
Each Height (in.)1.65
Each Weight (lb.)0.21
Each Cube (CuFt.)0.0097
Pack TypeBox
Inner UPC20045923087268
Inner Quantity10
Inner Length (in.)9.10
Inner Width (in.)3.50
Inner Height (in.)7.10
Inner Weight (lb.)2.10
Inner Cube (CuFt.)0.1269
Case UPC10045923087261
Case Quantity50
Case Length (in.)18.90
Case Width (in.)9.60
Case Height (in.)8.30
Case Weight (lb.)11.40
Case Cube (CuFt.)0.8451
