| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Plastic |
| Fixture Type | Circline |
| Status | Discontinued |
| Style | Utility |
| Surge Protection | Built-in-surge protection - 0.5KV |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Additional Info | Replaces 22W fluorescent Circlines |
| Amps | 0.092-0.040A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lensed | Yes |
| Nominal Length | 8.0 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 22W |
| Incandescent Equivalent | 50W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 135 |
| Color Temp | Warm White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -25C (-13F) to +45C (+113F) |

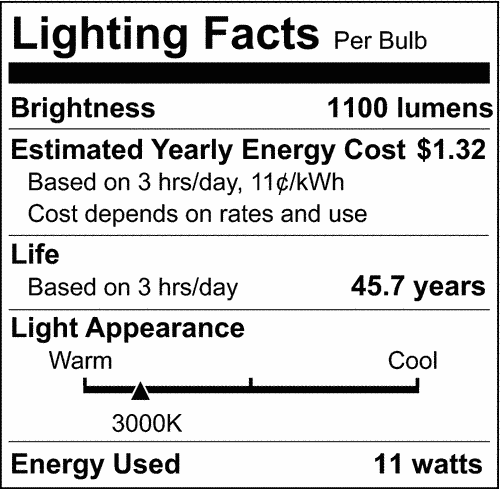

| Lumens | 1100L |
| Volts | 120V-277V |
| Watts | 11W |
| Lamp Base | G10q (4-Pin) |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G10q |
| Lamp Type | T9 |
| MOD Lamps | 1.13 |
| MOL | 8.0 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Classified |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923165009 |
|---|---|
| Case Cube | 0.9255 |
| Case Height | 9.5 |
| Case Length | 18.5 |
| Case Quantity | 12 |
| Case UPC | 10045923165006 |
| Case Weight | 2.88 |
| Case Width | 9.1 |
| EA Cube | 0.0561 |
| EA Height | 8.38 |
| EA Length | 1.38 |
| EA Quantity | 1 |
| EA Weight | 0.24 |
| EA Width | 8.38 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Length | 8.0 |
| Web Width | 1.13 |
