» S29926

Substitute S39926

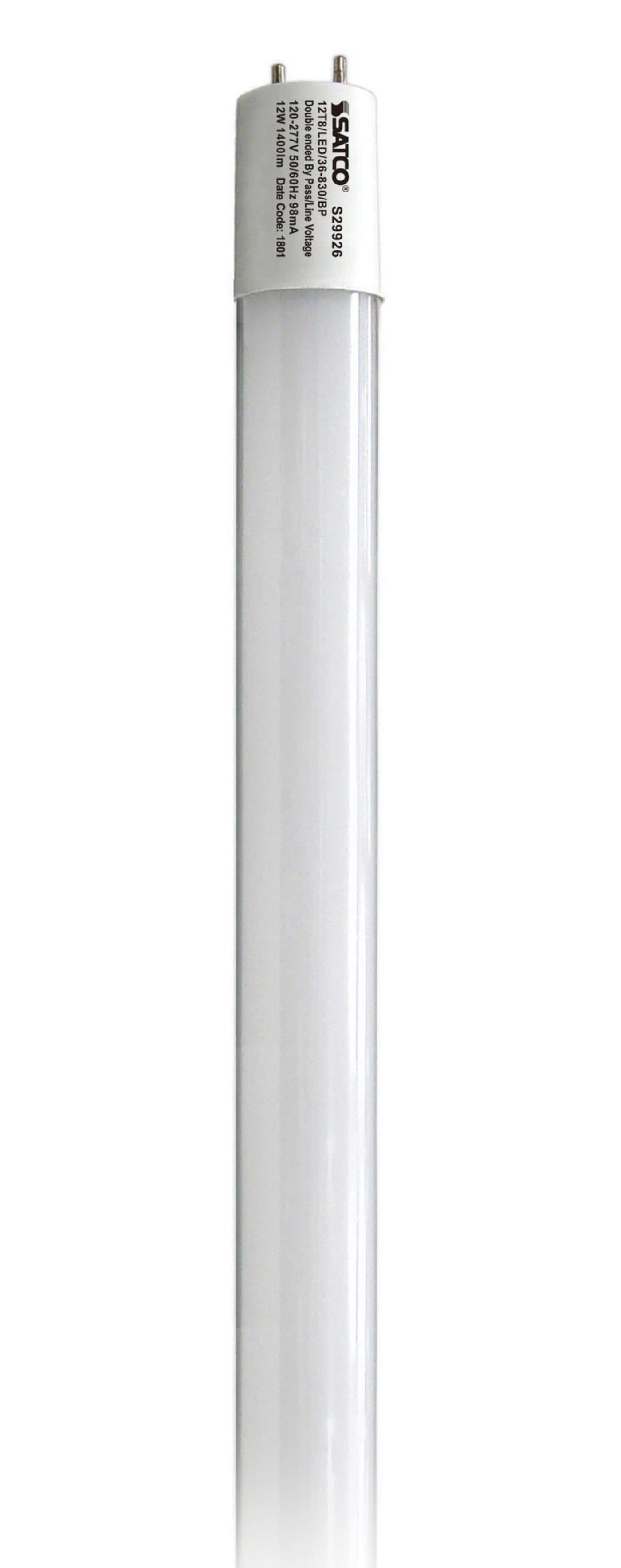

S29926 12T8/LED/36-830/BP 120-277V

S29926

12T8/LED/36-830/BP 120-277V

12 Watt T8 LED; Medium bi-pin base; 3000K; 50000 Average rated hours; 1400 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Lights

S29926

12T8/LED/36-830/BP 120-277V

12 Watt T8 LED; Medium bi-pin base; 3000K; 50000 Average rated hours; 1400 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Specifications

General
StatusDiscontinued
SubstituteS39926
Watts12W
Fluorescent Equivalent25W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1400L
Beam Spread210
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts12W
Fluorescent Equivalent25W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1400L
Beam Spread210
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL36
MOD1
Nominal Length36
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Additional Information
Tube Guard UseApproved for use with tube guards
Installation NotesExisting wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets.
Specification NoteBuilt-in shock resistant circuit - (not hot until both ends are installed)
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
Colorado StatusLawful for sale
Hawaii StatusLawful for sale
Nevada StatusLawful for sale
Washington StatusLawful for sale
Vermont StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923299261
Each Quantity1
Each Length (in.)35.40
Each Width (in.)1.18
Each Height (in.)1.18
Each Weight (lb.)0.40
Each Cube (CuFt.)0.0285
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923299268
Case Quantity25
Case Length (in.)37.00
Case Width (in.)6.30
Case Height (in.)6.50
Case Weight (lb.)9.69
Case Cube (CuFt.)0.8768
×
×

Ballast Compatibility

Name Type View
LED Linear S29926 Ballasts View
×

Precautions

No precautions available at this time.

×
